MA5801-GP16-H2 GPON OLT with 16 x GPON port, 4 x GE/10GE upstream ports, AC/DC power supply
The MA5801-GP16-H2 is a compact box-shaped OLT. It provides multiple fiber to the home Huawei FTTH solution to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise's all-optical campus scenario.
System switching capacity: 140 Gbit/s
MAC addresses: 32768
Access ONT: 1024

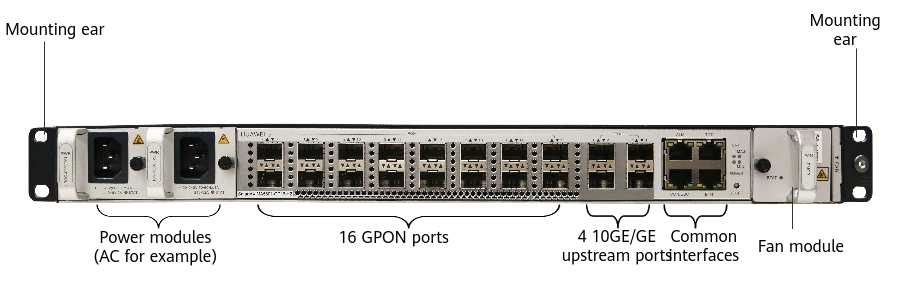

MA5801-GP16-H2 Structure
Product Highlights
The lightweight OLT occupies 1 U installation space. It can be flexibly adapted to various scenarios.
Supports 16 GPON service ports and works with GPON optical modules to implement GPON access.
Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
The matching F01M50 mini outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.
| Item | Value |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 |
| Including IEC mounting ears: 482.6 x 220 x 43.6 | |
| Including ETSI mounting ears: 531 x 220 x 43.6 | |
| Max fully-loaded weight | 5 kg |
| Power supply mode | DC power supply (dual backup) |
| AC power supply (dual backup) | |
| Working voltage range | DC power supply: –38.4 V to –72 V |
| AC power supply: 100–240 V | |
| Rated voltage | DC power supply: –48 V/–60 V |
| AC power supply: 110 V/220 V | |
| Maximum input current | DC power supply: 6 A |
| AC power supply: 2.5 A | |
| Ambient temperature | –40°C to +65°C |
| The device can start up at a lowest temperature of –25°C. | |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | |
| System switching capacity | 140 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 1024 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| ARP table | 16384 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| Service ports | 16 GPON |
| System reliability specifications | System availability for the typical configuration: > 99.999% |
| Mean time between failures (MTBF): about 62 years | |
| Power consumption | DC power supply: |
| Static power consumption: 52W | |
| Typical power consumption: 91W | |
| Maximum power consumption: 135W | |
| AC power supply: | |
| Static power consumption: 55W | |
| Typical power consumption: 95W | |
| Maximum power consumption: 140W |
