Exploring the Basics of EDFA
In the realm of optical communication, Erbium-Doped Fiber Amplifiers (EDFAs) play a crucial role in boosting signal strength over long distances. These sophisticated devices utilize the unique properties of erbium-doped fibers to amplify optical signals, enabling efficient transmission of data in telecommunications networks. This article aims to provide a basic introduction to EDFAs, covering their principles of operation, key components, applications, and structure.
What is EDFA?
At the heart of an EDFA lies an erbium-doped fiber, which is infused with erbium ions that can absorb and emit light at specific wavelengths. When a weak optical signal is injected into the erbium-doped fiber, the erbium ions amplify the signal through a process known as stimulated emission. This results in a significant increase in signal power without the need for costly and complex electronic regenerators.
The main components of an EDFA include the erbium-doped fiber, pump laser diodes, isolators, couplers, and optical filters. The pump laser diodes provide the energy needed to excite the erbium ions, while isolators prevent unwanted reflections and ensure signal stability. Couplers and optical filters help control the direction and wavelength of the amplified signal, allowing for precise signal management.
The EDFA is designed for multiple system operators (MSOs). It is an amplifying and multiplexing product that supports both the cable TV (CATV) and broadband services. Specifically, it amplifies a channel of CATV signals, divides the signals into 32 channels, multiplexes the 32 channels of CATV signals with 32 channels of PON signals, and transmits the multiplexed signals over the optical distribution network (ODN) to users' homes. The EDFA also supports line protection. It selects a better CATV input from 2 using the 1:2 optical switch.
Application Scenario
The EDFA is applicable in the CATV+PON fiber to the building (FTTB) and fiber to the home (FTTH) scenarios.

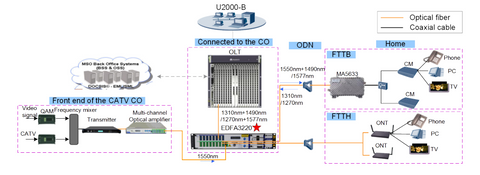

Figure 1-1 shows the networking for CATV+PON FTTB and FTTH
EDFA Structure

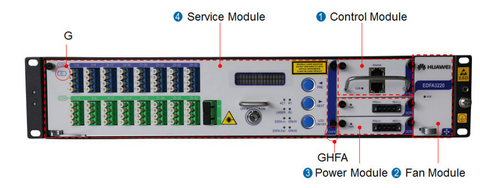

The EDFA includes 4 modules: control module, fan module, power module, and service module as below Figure 1-2 Structures of EDFA3220-D.
Table 1-2 EDFA3220-D structure
EDFA Advantages
One of the primary advantages of EDFAs is their high gain and low noise characteristics, which enable efficient signal amplification with minimal distortion. Additionally, EDFAs offer excellent reliability, scalability, and cost-effectiveness compared to alternative amplification technologies such as semiconductor optical amplifiers (SOAs) or Raman amplifiers.
