This blog is justify concerning the way to set up GPON ONT and a few steps provided.

What is Multicast?

The multicast is talking concerning purpose to multipoint communication each bound node and most of different mode in network. the management multicast is allowed to access device to work out if a user has the permission to observe schedules by establish user request packets. With this manner, the access device manages and forwards that multicast services. The MA5800 has provides the IPTV service by mistreatment multicast technology. The utilization of management multicast the device manages and controls multicast users. This support to fulfill needs of the carriers for VDO service provisioning and alter multicast services to be operable and manageable.

Configuring Multicast GPON ONT

When the MA5800 relates to associate in nursing ONT or associate in nursing MDU, you wish to set up the multicast interconnection knowledge to forward the multicast traffic streams.

Prerequisites

Before configuration the multicast GPON ONT we need to feature ONT properly.

Context

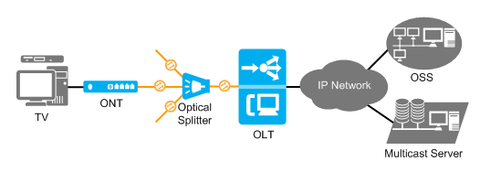

When OLT is expounded to ONT the MA5800 will manages the ONT in OMCI mode therefore this case we want to set up ONT line and ONT service profile. The configuration of multicast knowledge in ONT service and bind profile into ONT to issue the multicast service.

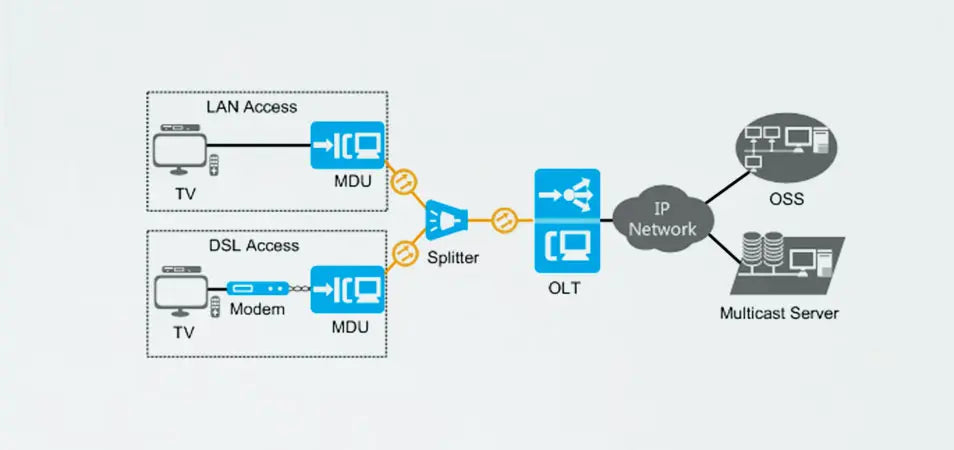

When OLT is expounded to MDU the MA5800 manages the MDU in SNMP mode therefore this case we don't got to set up ONT service profile. What we have a tendency to solely got to do is set up multicast knowledge in MDU over interconnected with MA5800 to forward multicast traffic stream.

Procedure

1. Add ONT line profile

2. Add ONT service profile

    2.1 Run ont-srvprofile gpon

    2.2 Run ont-port

    2.3 Run port vlan

    2.4 Run multicast mode

    2.5 Run multicast-forward

After the configuration is completed, we have a tendency to run the commit command to form the organized service profile get.
