Today we would like to share a case about the issue that the ONT configuration status fails on Huawei OLT. Please see more information shown below.

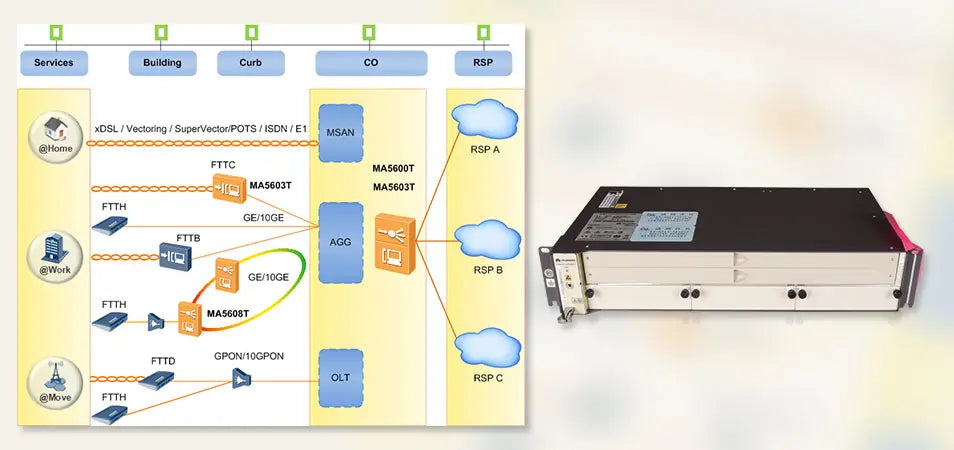

Product model: SmartAX MA5608T.

ISSUE DESCRIPTION

After an ONT is added to the MA5608T, a user runs the display ont info command to query the ONT status. The command output shows that the config state is failed.

F/S/P                   : 0/0/0 ONT-ID                  : 115 Control flag            : active Run state               : online Config state            : failed Match state             : match

 ISSUE ANALYSIS

1. Run the display ont failed-configuration command to check the ONT configuration restoration failure information.

MA5608T(diagnose)%%display ont failed-configuration 0/0/0 115 ------------------------------------------------------------------------------ ONT ID                     : 115 The number of failed config: 3 ------------------------------------------------------------------------------ Config item        : ONU GEM mapping (gem mapping) Config parameter   : gem index(15), mapping(0) Failed cause       : Over ONU capability ------------------------------------------------------------------------------ Config item        : ONU GEM port (gem add) Config parameter   : Gem Index(15) Failed cause       : Over ONU capability ------------------------------------------------------------------------------ Config item        : ONU TCONT (tcont, ont tcont bind) Config parameter   : Tcont(11) Failed cause       : Over ONU capability ------------------------------------------------------------------------------

2. Query the ONT line configuration.

ont-lineprofile gpon profile-id 50 profile-name "diagnostics" tcont 11 dba-profile-id 10         gem add 15 eth tcont 11             gem mapping 15 0 vlan 22           commit                             quit     ont-srvprofile gpon profile-id 50 profile-name "diagnostics" ont-port pots 1 eth 2               port vlan eth 2 translation 22 user-vlan 22 commit     service-port 124  vlan 22 gpon 0/0/0 ont 115 gemport 15 multi-service user-vlan 22

3. Confirm that the ONT supports a maximum of 8 T-CONTs.

 OLT judgment logic: if the number of T-CONTs reported by the ONT is greater than or equal to the number of T-CONTs reported by the ONT, the OLT determines that the number exceeds the ONT capability set.

ROOT CAUSE

The number of configured T-CONTs exceeds the maximum capability of the ONT.

SOLUTION DESCRIPTION

 Change the T-CONT range from 0 to 7 and bind the T-CONT to the ONT again. The configuration status is restored.
