Huawei ME60 1-Port 100GBase-CFP2 Flexible Card(BP240) ME0D2L1NXB7H PN#03032GLC
ME0D2L1NXB7H BP240 is Flexible Card used for Huawei ME60 Series Router including ME60-X8/ME60-X8A/ME60-X16/ME60-X16A to provides one 100GE interface for line-rate transmitting and receiving.
| Item | Details |
| Description | 1-Port 100GBase-CFP2 Flexible Card(BP240) |
| Part Number | 03032GLC |
| Model | ME0D2L1NXB7H |
| Card type | Flexible Board |
| Silkscreen | BP240-1x100GBase-CFP2-A |
| Basic function | Provides one 100GE interface for line-rate transmitting and receiving. |
| Reliability and availability | Hot swappable. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Weight without packaging [kg(lb)] | 0.8 kg (1.76 lb) |
| Typical power consumption [W] | 40W |
| Typical heat dissipation [BTU/hour] | 129.7 BTU/hour |
|
Long-term and Short-term operating temperature [°C(°F)] |
–5°C to +55°C (23°F to 131°F) |

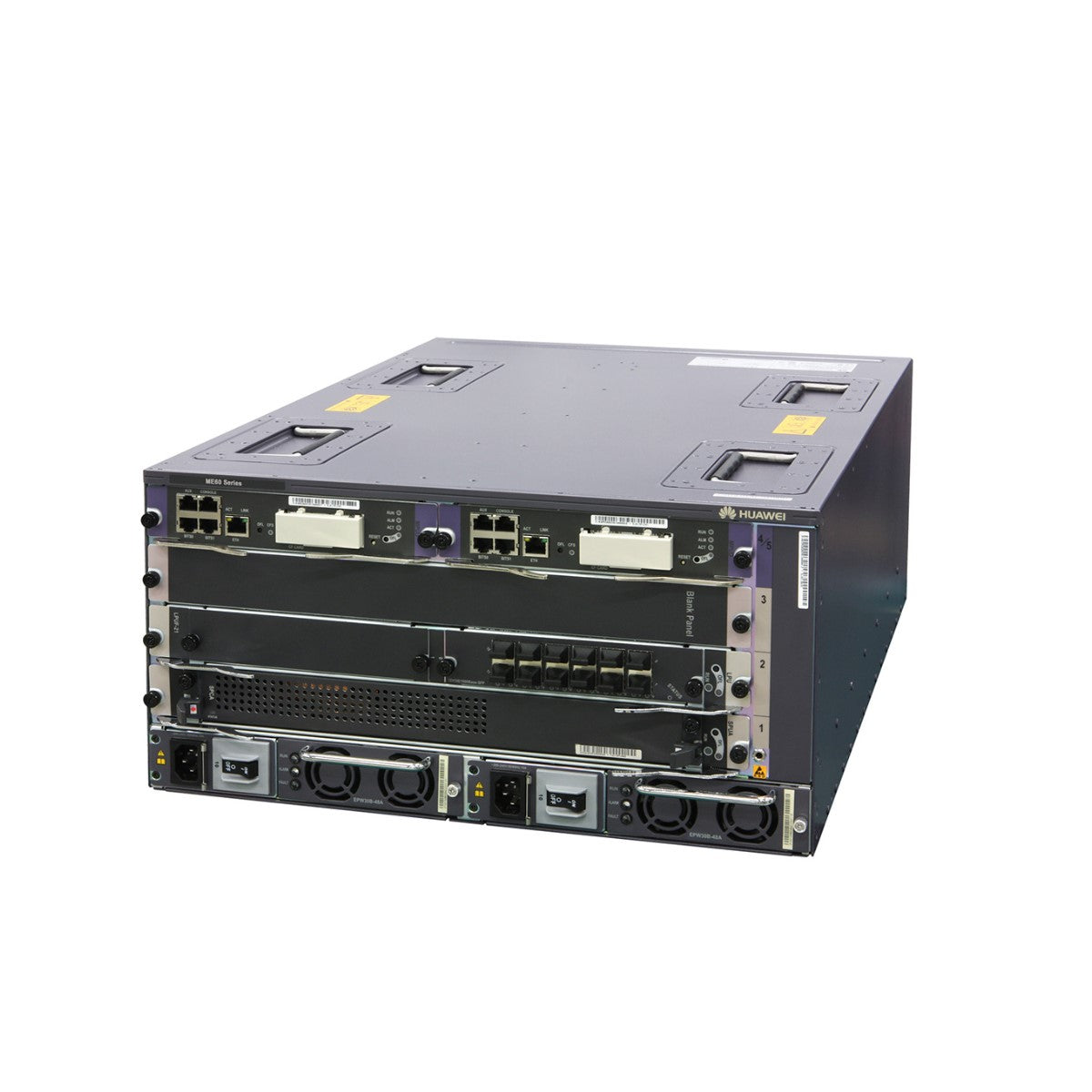

Huawei ME60 Series Router Specifications
| Parameters | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 |
ME60-X3 |
| Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | 11,520 Mpps | 5760 Mpps | 5760 Mpps | 2880 Mpps | 360 Mpps |
| Number of Slots | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 12 slots, including 8 BSU/MSU, 2 SRUs, and 2 SFUs | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 11 slots, including 8 BSU/MSU, 2 SRUs, and 1 SFU | 5 slots, including 3 BSU/MSU and 2 MPUs |
| Dimensions | 1778 x 442 x 650 mm (40 U) | 934 x 442 x 650 mm (21 U) | 1420 x 442 x 650 mm (32 U) | 620 x 442 x 650 mm (14 U) | 175 x 442 x 650 mm (DC 4 U) |
| (H x W x D) | 220 x 442 x 650 mm (AC 5 U) | ||||
| Maximum Power Consumption | 7220 W (BSUF-240) | 4110 W (BSUF-240) | 4610 W (BSUF-100) | 2340 W (BSUF-100) | 920 W (BSUF-100) |
| 9040 W (BSUF-480) | 4770 W (BSUF-480) | 6210 W (BSUF-240) | 3220 W (BSUF-240) | ||
| Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) |
| AC: 52 kg (100G) | |||||
| Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE |
||||
| BRAS | User access protocols: PPPoE, IPoE, 802.1X, and ND access. User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS. User billing protocols: RADIUS, HWTACACS, and COPS. User authorization protocols: RADIUS, HWTACACS, COPS, and COA. |
||||
| QoS | Provides a well-designed HQoS mechanism. Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification. Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services. Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS. Supports a maximum of 768K flow queues per slot. |
||||
| Value-Added Services | Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks. Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service. |
||||
