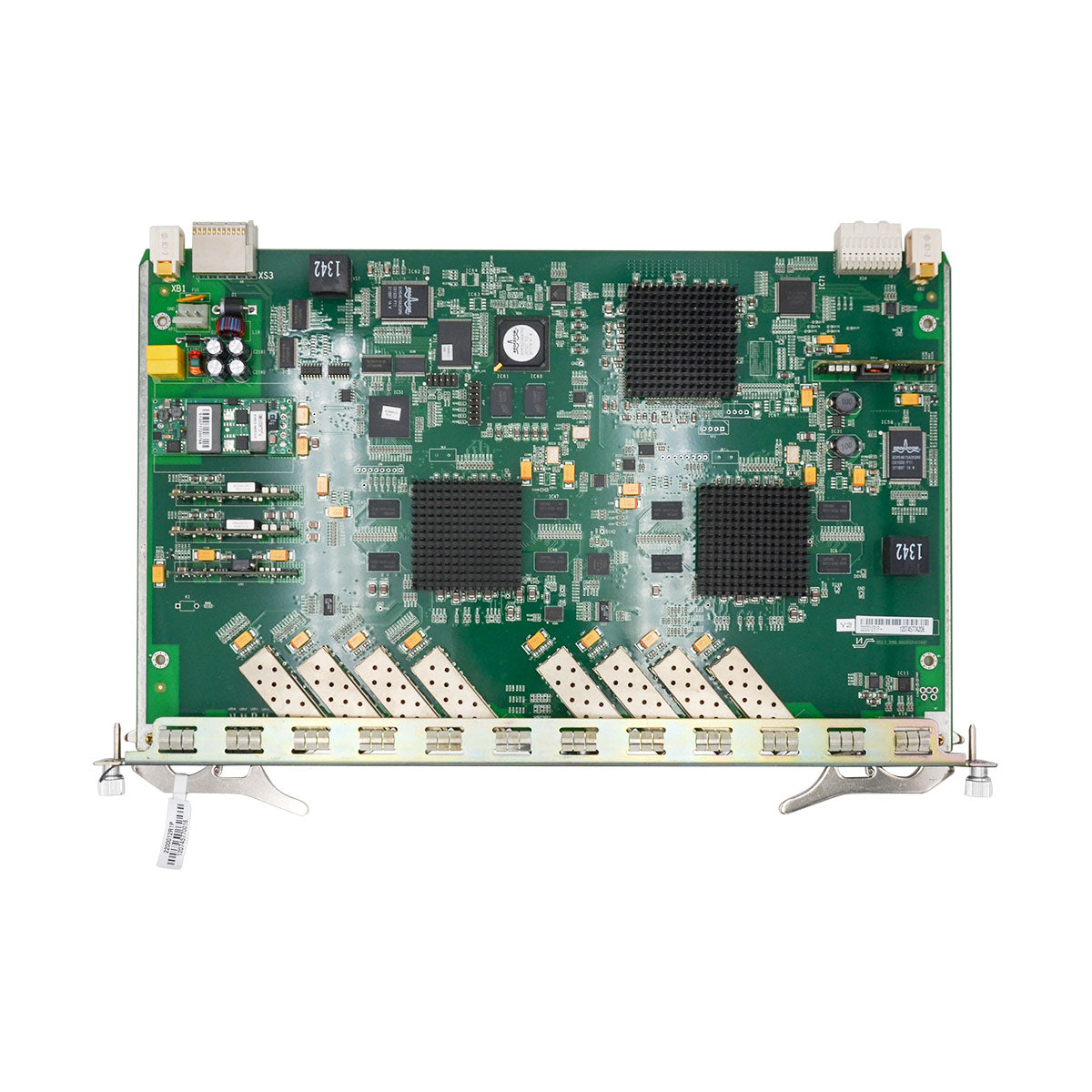

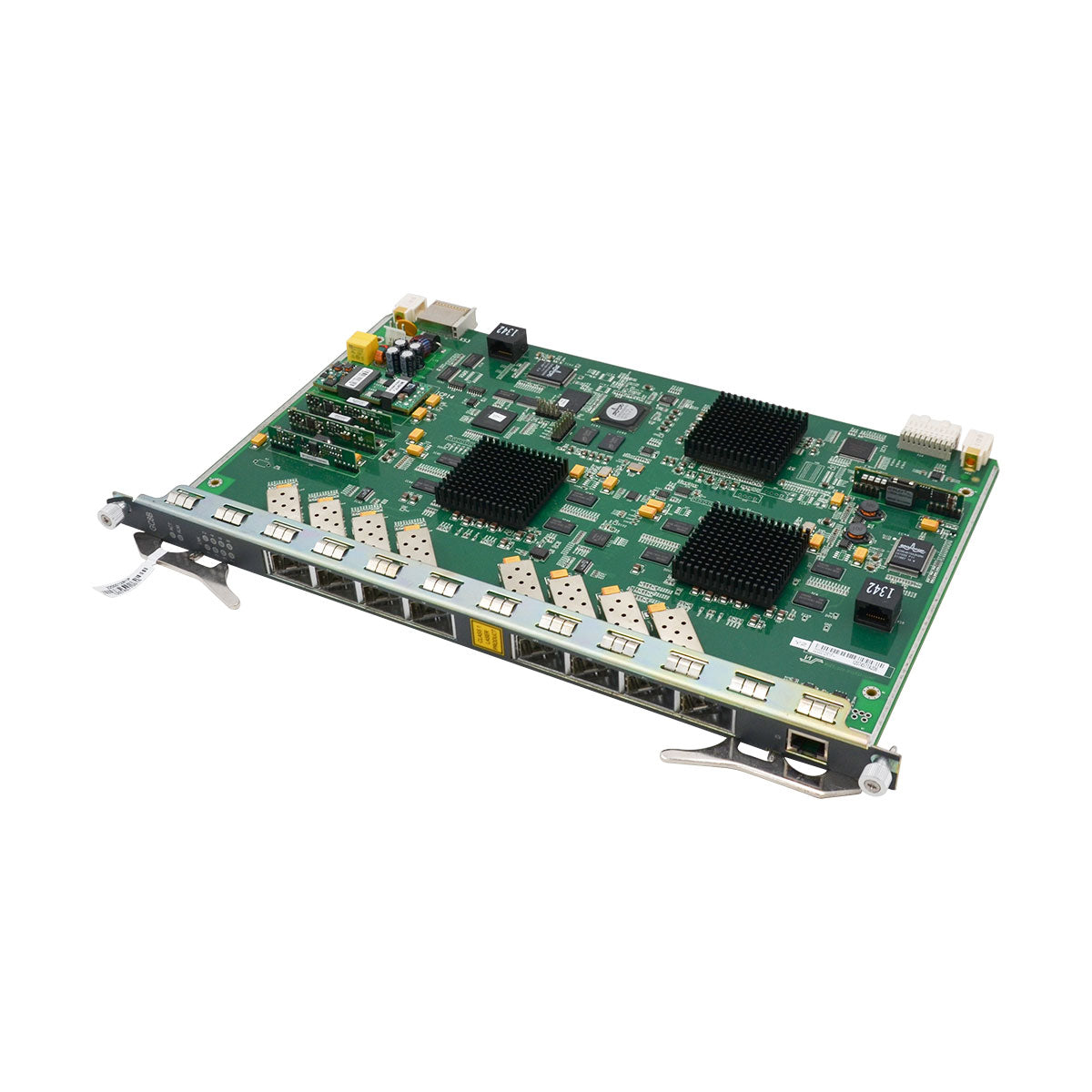

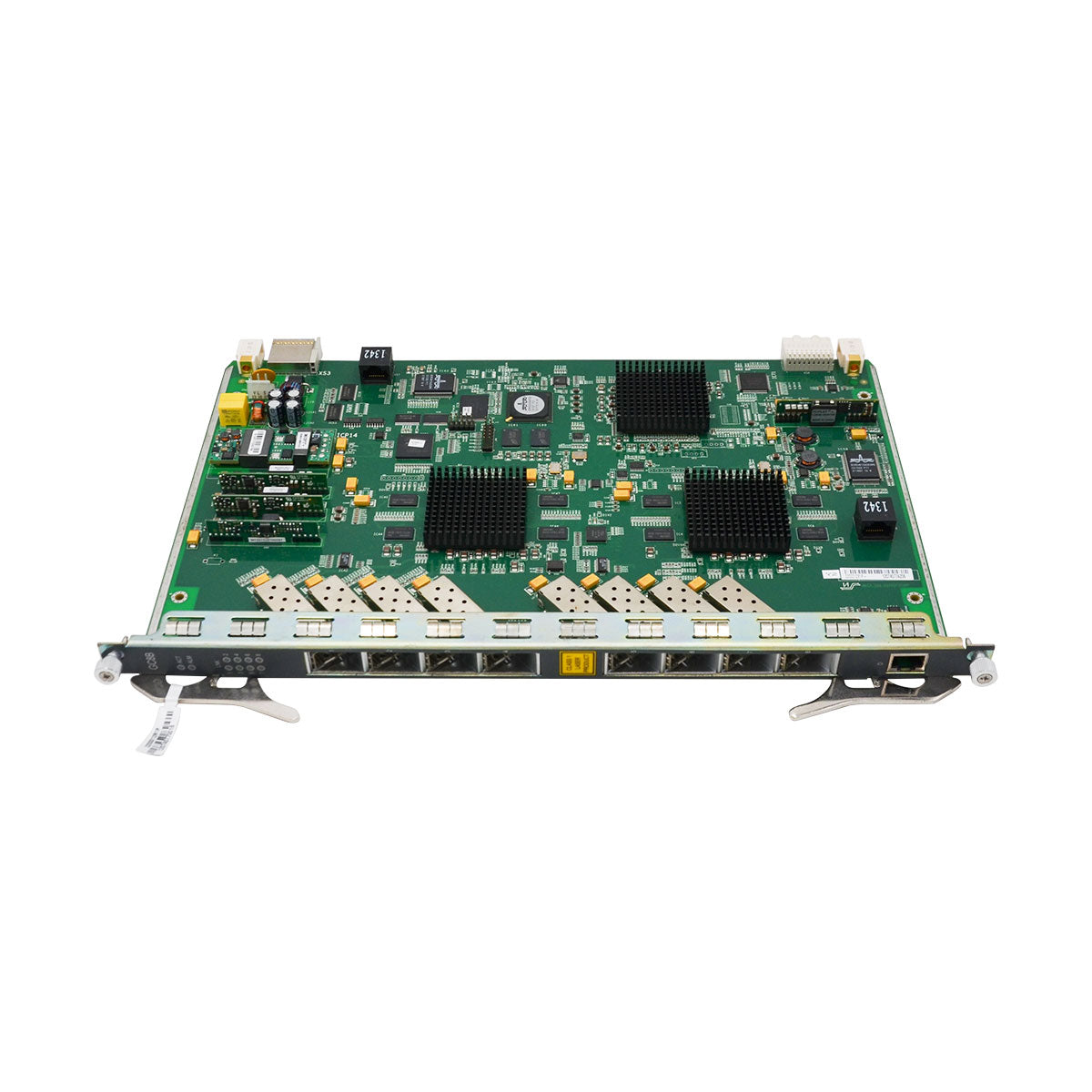

FiberHome GC8B 8-port GPON Interface Card for AN5516 series OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

FiberHome GC8B 8-port GPON Interface Card for AN5516 series OLT

  • Unified 8*PON Module
  • Original Package
  • Board and Modules Tested
Available:In Stock
$0.00

GC8B provides 8 GPON service interfaces to achieve the access of client service. GC8B supports 1:128 split ratio within the limits of the optical power budget.

GC8B 8-port GPON Interface Card provides the GPON downlink channel for connection with the remote ONU.

GC8B supports optical line protection switching, intra-card PON MAC chip-level protection and intercard PON MAC chip-level protection.

GC8B can be used on FiberHome AN5116 series OLT AN5116-01/AN5116-06B, AN5516-06 and AN5516-04.



Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module
Interface type SC/PC
Transmitter Signal nominal rate 2.5 Gbit/s ± 100 ppm
Wavelength range 1480 nm to 1500 nm
Mean launched power (maximum) +7 dBm
Mean launched power (minimum) +3 dBm
Average launched power of OFF transmitter -39 dBm
Extinction ratio (minimum) +9 dB
Receiver Signal nominal rate 1.25 Gbit/s ± 100 ppm
Wavelength range 1260 nm to 1360 nm
Maximum receiving sensitivity -30 dBm
Minimum overload optical power -8 dBm
Power Consumption ≤ 50W
MTBF (hour) 146606.07
MTBF (year) 16.74
Failure Rate (ppm) 6.821



Card Type Card Name AN5116-06B AN5516-06 AN5516-04
PON interface
card
EC4B
EC8B
ECOB
GC4B
GC8B
GCOB
XP4A
XP8A
XS8C
XP8C
XPOA
XG8A
XS8A

GC8B provides 8 GPON service interfaces to achieve the access of client service. GC8B supports 1:128 split ratio within the limits of the optical power budget.

GC8B 8-port GPON Interface Card provides the GPON downlink channel for connection with the remote ONU.

GC8B supports optical line protection switching, intra-card PON MAC chip-level protection and intercard PON MAC chip-level protection.

GC8B can be used on FiberHome AN5116 series OLT AN5116-01/AN5116-06B, AN5516-06 and AN5516-04.
