EA5801E-GP16 GPON OLT with 16 x GPON port, 4 x GE/10GE upstream ports, AC/DC power supply
The EA5801E-GP16 is a small-sized box-shaped OLT. It provides 16 GPON ports and a unified platform Huawei FTTH solution for bearing multiple services such as broadband, voice, and video services. With the EA5801E-GP16, all services are carried over one fiber network, simplifying the network architecture and reducing OPEX.
System switching capacity: 140 Gbit/s
MAC addresses: 32768
Access ONT: 1024

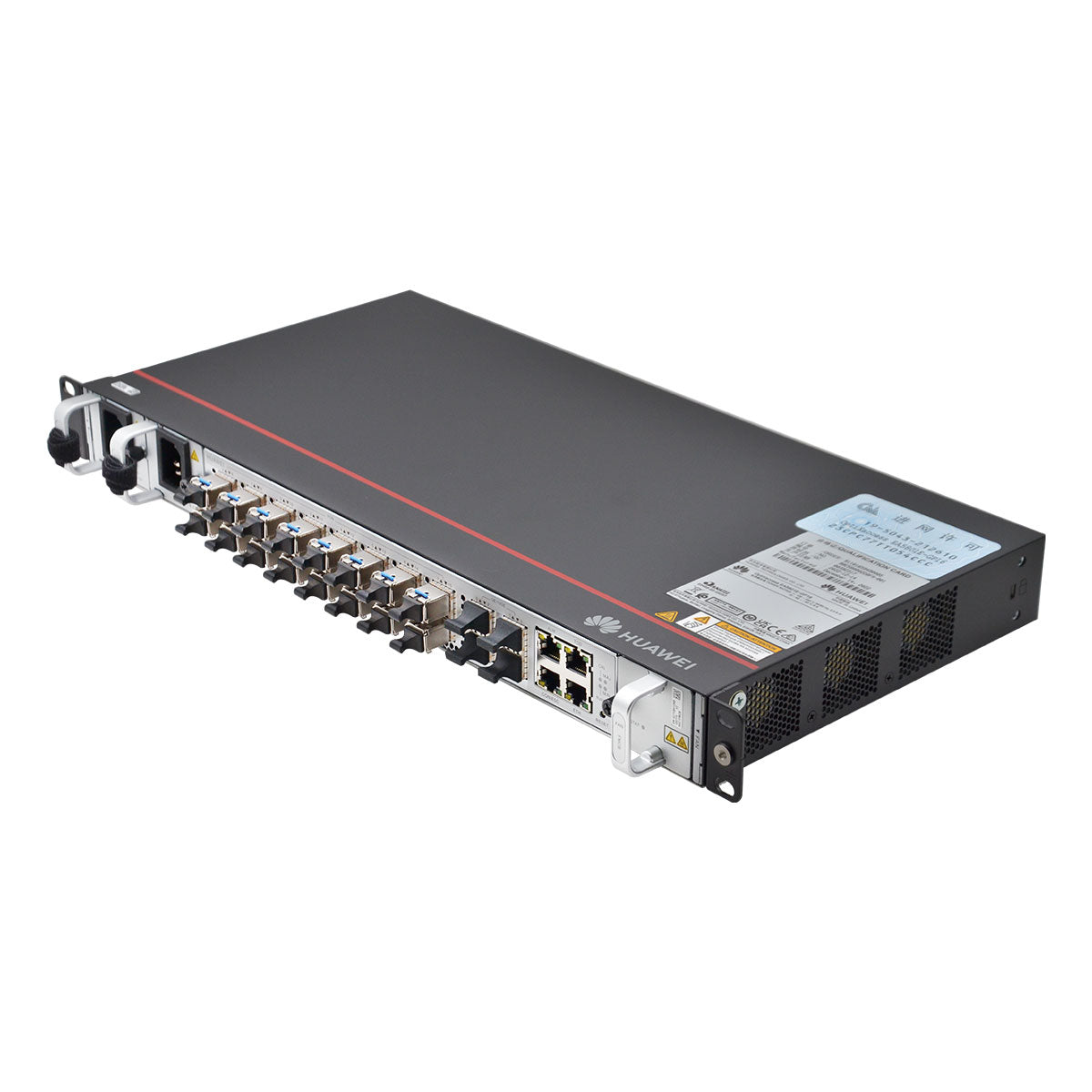

EA5801E-GP16 Structure

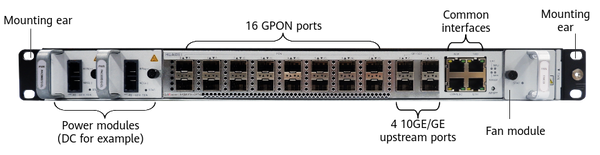

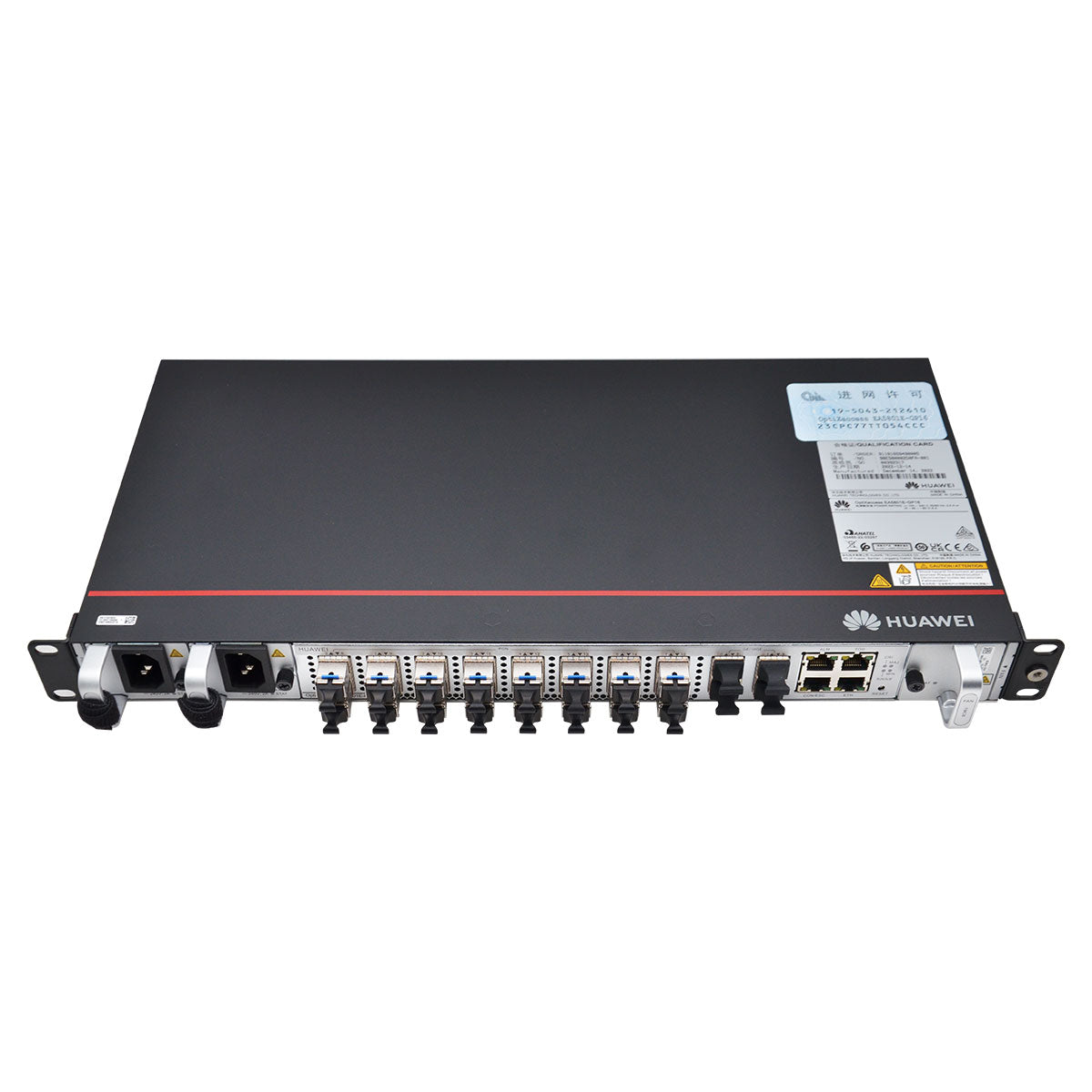

EA5801E-GP16 houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules. Its mounting ears are applicable to IEC specifications and ETSI specifications, and are used in racks or cabinets of different specifications.
Product Highlights
Lightweight and small size
The lightweight OLT weighs less than 5 kg and occupies 1 U installation space. It can be flexibly adapted to various scenarios.
High density, supporting 16 GPON ports
Supports 16 GPON service ports and works with GPON optical modules to implement GPON access.
Dual power supplies, high reliability
Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
Easy installation and flexible deployment
The matching F01M50 mini outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.
| Item | Specification |
| Layer 2 features | |
| VLAN+MAC forwarding | SVLAN+CVLAN forwarding |
| PPPoE+ | DHCP option82 |
| Layer 3 features | |
| Static route | RIP/RIPng |
| OSPF/OSPFv3 | IS-IS |
| BGP/BGP4+ | ARP |
| DHCP relay | VRF |
| Multicast | |
| IGMP v2/v3 | IGMP Proxy/Snooping |
| MLD v1/v2 | MLD Proxy/Snooping |
| VLAN-based IPTV multicast | IPv4 PIM and PIM-SSM |
| QoS | |
| Traffic classification | Priority processing |
| trTCM-based traffic policing | WRED |
| Traffic shaping | HQoS |
| PQ/WRR/PQ+WRR | ACL |
| IPv6 | |
| IPv4/IPv6 dual stack | IPv6 L2 and L3 forwarding |
| DHCPv6 relay | |
| System reliability | |
| GPON Type B/Type C protection | ERPS (G.8032) |
| 2 power boards for redundancy protection | In-service board fault detection and rectification |
| Application security | |
| 802.1x | AAA |
| Portal Authentication (V100R021C00 and later versions) | |
| Clock and Time Feature (V100R021C00 and later versions) | |
| Synchronous Ethernet | 1588v2 |
| NOTE: | |
| This feature is supported only by products with a clock daughter board. | |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 |
| Including IEC mounting ears: 482.6 x 220 x 43.6 | |
| Including ETSI mounting ears: 531 x 220 x 43.6 | |
| Maximum fully-loaded weight | 5 kg |
| Power supply mode | DC power supply (dual backup) |
| AC power supply (dual backup) | |
| Working voltage range | DC power supply: –38.4 V to –72 V |
| AC power supply: 100–240 V | |
| Rated voltage | DC power supply: –48 V/–60 V |
| AC power supply: 110 V/220 V | |
| Maximum input current | DC power supply: 6 A |
| AC power supply: 2.5 A | |
| Ambient temperature | –40°C to +65°C |
| The device can start up at a lowest temperature of –25°C. | |
| NOTE: | |
| The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. | |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | |
| System switching capacity | 140 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 1024 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| ARP table | 16384 |
| Portal authentication users | 960 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| Service ports | 16 GPON |
| System reliability specifications | System availability for the typical configuration: > 99.999% |
| Mean time between failures (MTBF): about 62 years | |
| NOTE: | |
| Due to different network environments and different boards used by devices, the preceding MTBF (62 years) of the EA5801E is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers. | |
| Power consumption | DC power supply: |
| Static power consumption: 52W | |
| Typical power consumption: 91W | |
| Maximum power consumption: 135W | |
| AC power supply: | |
| Static power consumption: 55W | |
| Typical power consumption: 95W | |
| Maximum power consumption: 140W | |
| NOTE: | |
| The power consumption of a product is tested in the following conditions: | |
| Static power consumption: 25°C, no optical module in optical ports, and no service. | |
| Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 16 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. | |
| Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 16 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. | |
