Huawei EG8120L ONT

  • Failure rate＜0.2%
  • OEM Supported
  • Firmware Customized
  • Supports TR069/OMCI
Available:In Stock
$0.00

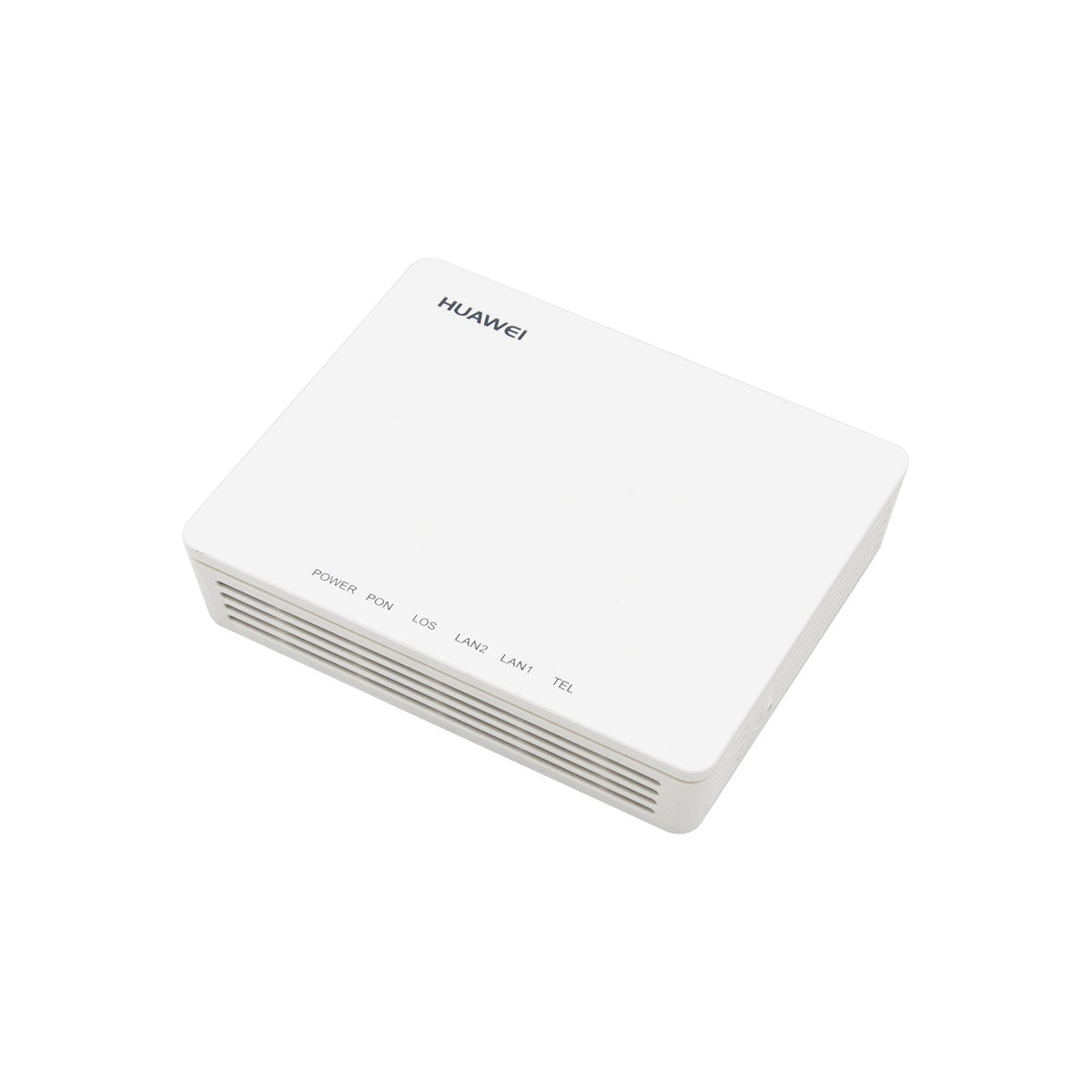

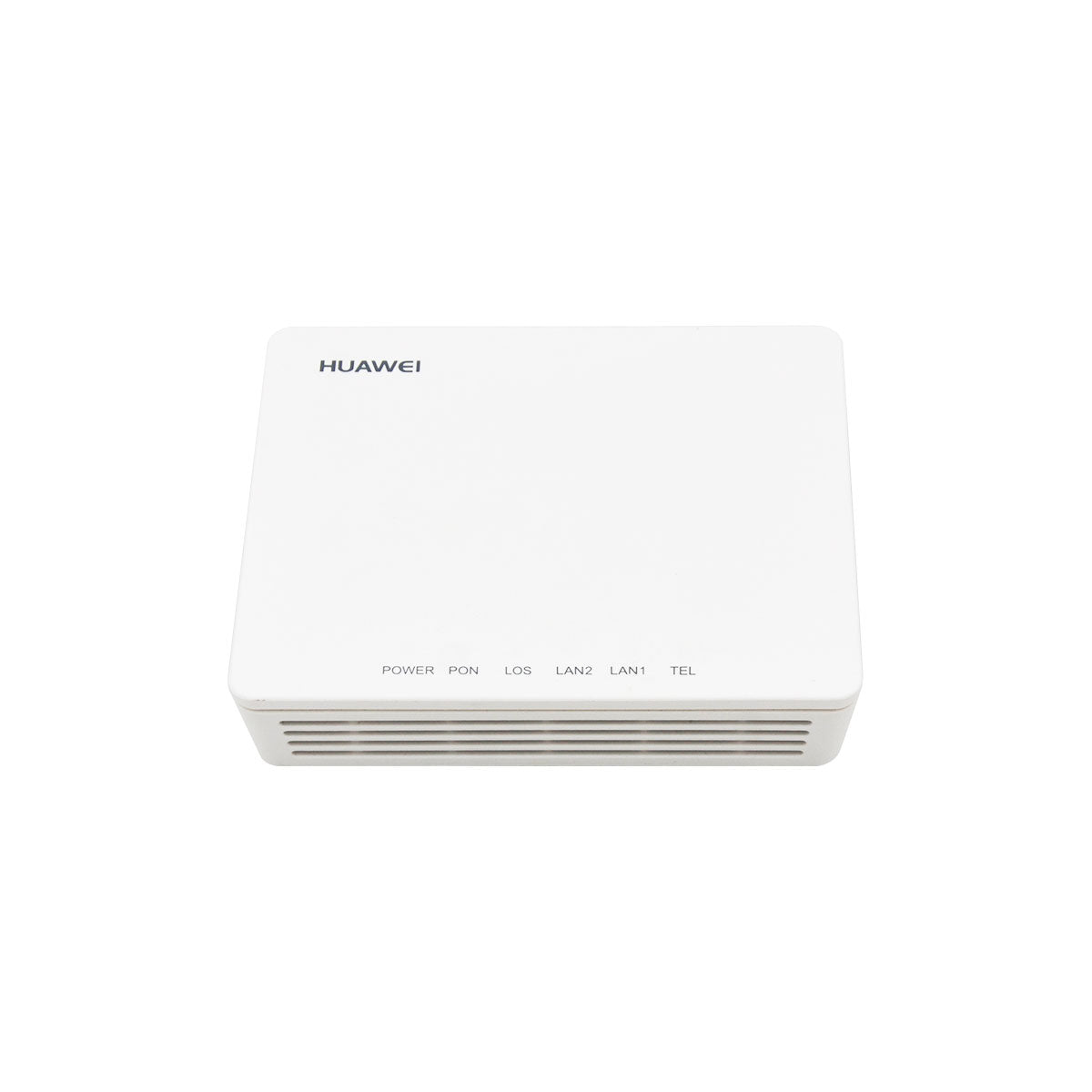

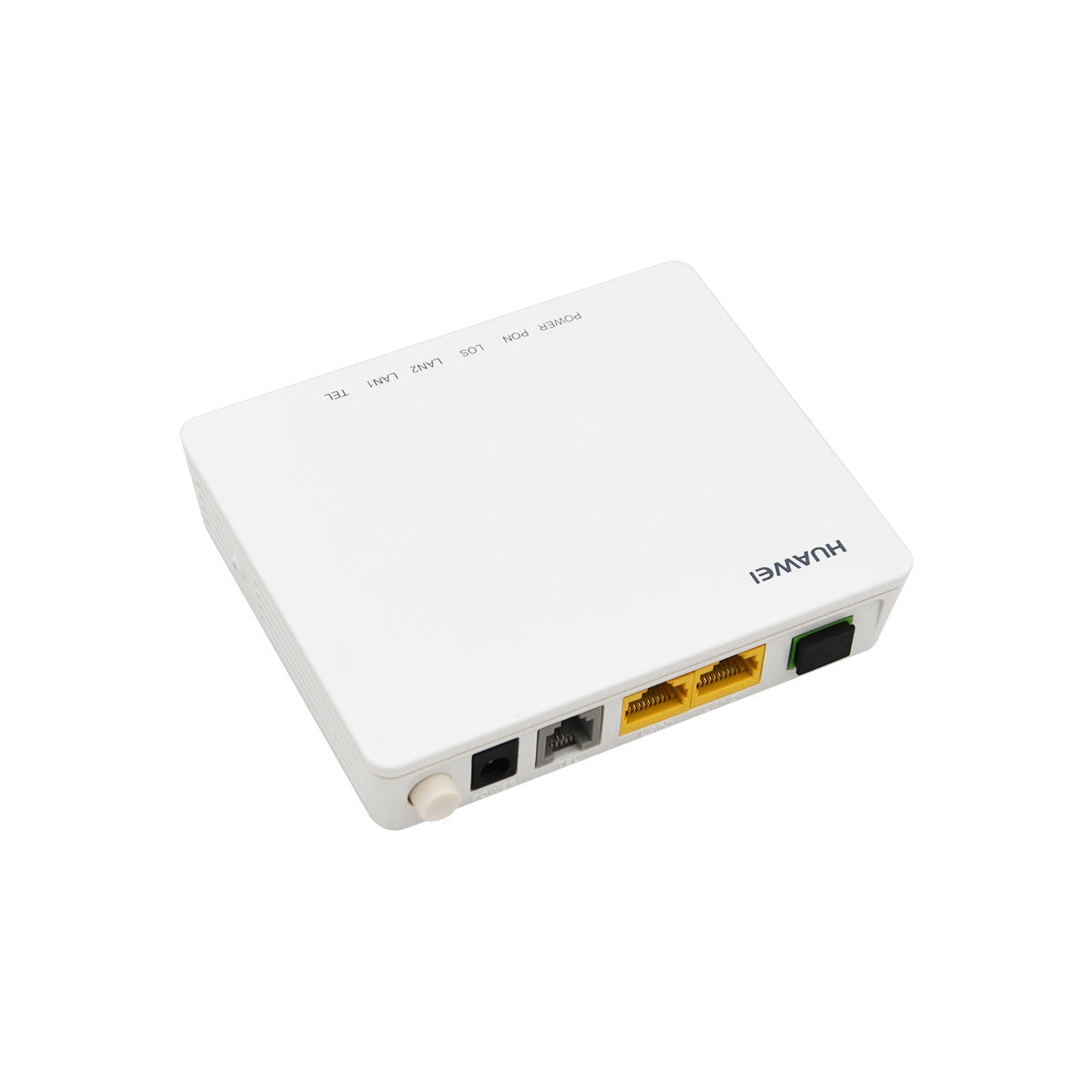

Huawei EG8120L non-WiFi ONT is a intelligent routing-type Optical Network Terminal (ONT) that provides one GE port, one POTS port, and one FE port in Huawei FTTH solution. The EG8120L features high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.

EchoLife EG8120L, an intelligent bridging-type ONT
Provides 1GE, 1FE and 1POTS
Indicators: POWER/PON/LOS/LAN/TEL
OMCI/Web UI/TR069
Class B+
Receiver sensitivity: -27dBm ~ -29dBm
Overload optical power: -8 dBm
Smart service, Smart interconnection Smart O&M
Dual-system software backup and rollback, 802.1ag Ethernet OAM, Optical link measurement and diagnosis, Loopback check
Active/Passive rogue ONT detection and isolation, PPPoE/DHCP simulation testing, Call emulation, and circuit test and loop-line test, eSight management



Specification
GPON port  Class B+
 Receiver sensitivity: -27dBm ~ -29dBm
 Overload optical power: -8 dBm
 Wavelengths: US 1310 nm, DS 1490 nm
 Wavelength blocking filter (WBF)
 Flexible mapping between GEM Port and TCONT
 GPON: consistent with the SN or password
authentication defined in G.984.3
 Bi-directional FEC
 SR-DBA and NSR-DBA
 Type B (single-homing&dual-homing)
Ethernet port  Ethernet port-based VLAN tags and tag removal
 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
 QinQ VLAN
 Limit on the number of learned MAC addresses
 MAC address learning
 Local switching/isolation based on Ethernet ports
 Transparent transmission of IPv6 packets at Layer 2
POTS port  Maximum REN: 4
 G.711A/μ, G.729a/b, and G.722 encoding/decoding
 T.30/T.38/G.711 fax mode
 DTMF
 Emergency calls (with the SIP protocol)
Common O&M  OMCI/Web UI/TR069
 Dual-system software backup and rollback
 802.1ag Ethernet OAM
 Optical link measurement and diagnosis
 Loopback check
Working environment Operating temperature: 0°C to 40°C
Environment humidity: 5% to 95% (noncondensing)
Pressure environment: 0 to 106 kPa
Power consumption Static power consumption: 3.8 W
Maximum power consumption: 4.9 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 0.5 A
Dimensions
(length x width x height)		 30 mm x 94 mm x 115 mm
Weight About 155g

 EG8120L Similar Huawei Non-WiFi ONTs

ONT Model UNI(User-Network Interface)
HG8310M 1GE
EG8010H/ HG8010H 1GE
EG8120L 1GE+1FE+1POT
HG8321R 1GE+1FE+1POT
EG8240H  4GE+2POTS
EG8120L5 1POTS+1GE+1FE
EG8012H5 1GE+1CATV
HG8321V 1GE+1FE+1POT+CATV
