Huawei H802XEBD 8-port 10G-EPON Board for MA5800 series OLT

  • Unified 8*PON Module
  • Original Package
  • Board and Modules Tested
Available:In Stock
$0.00

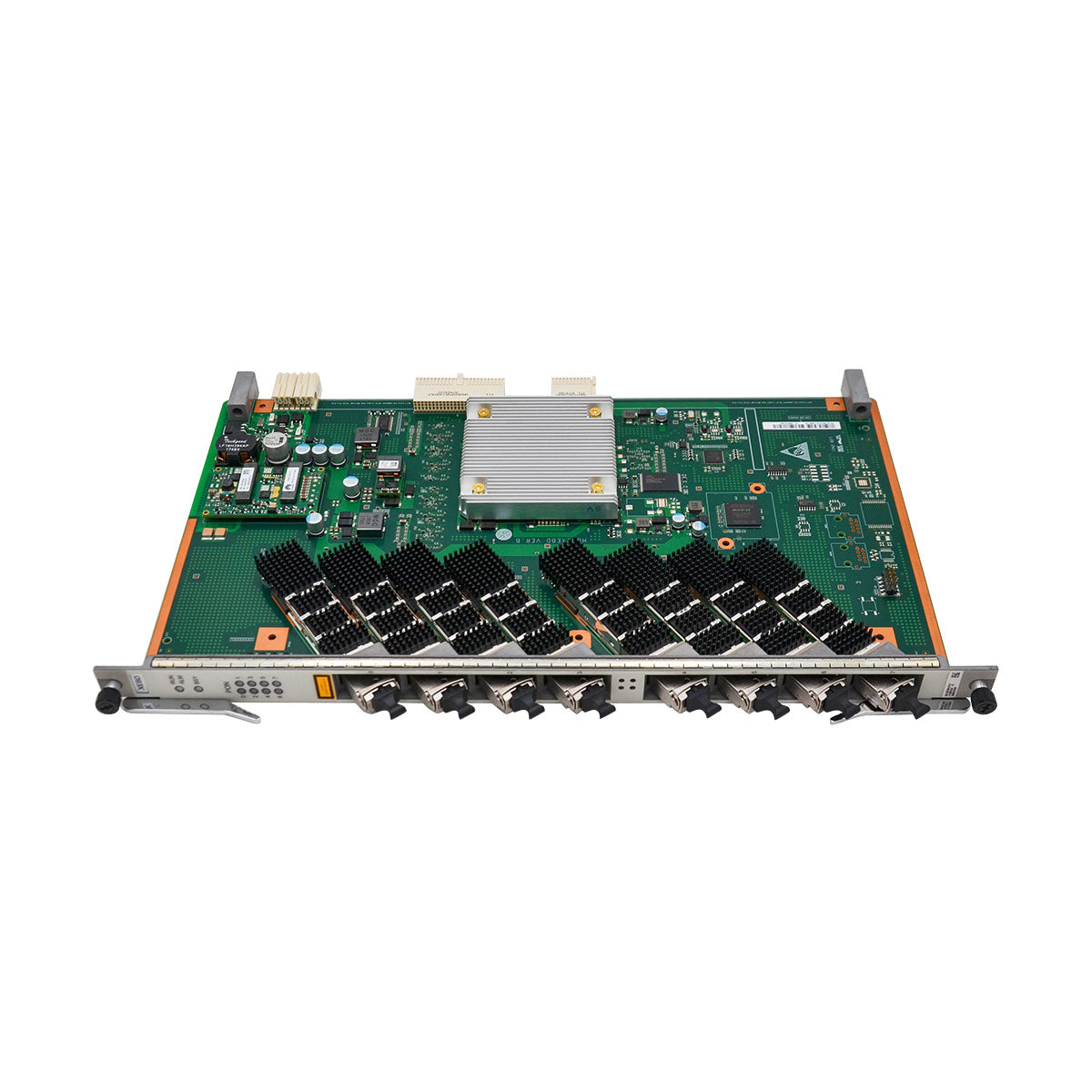

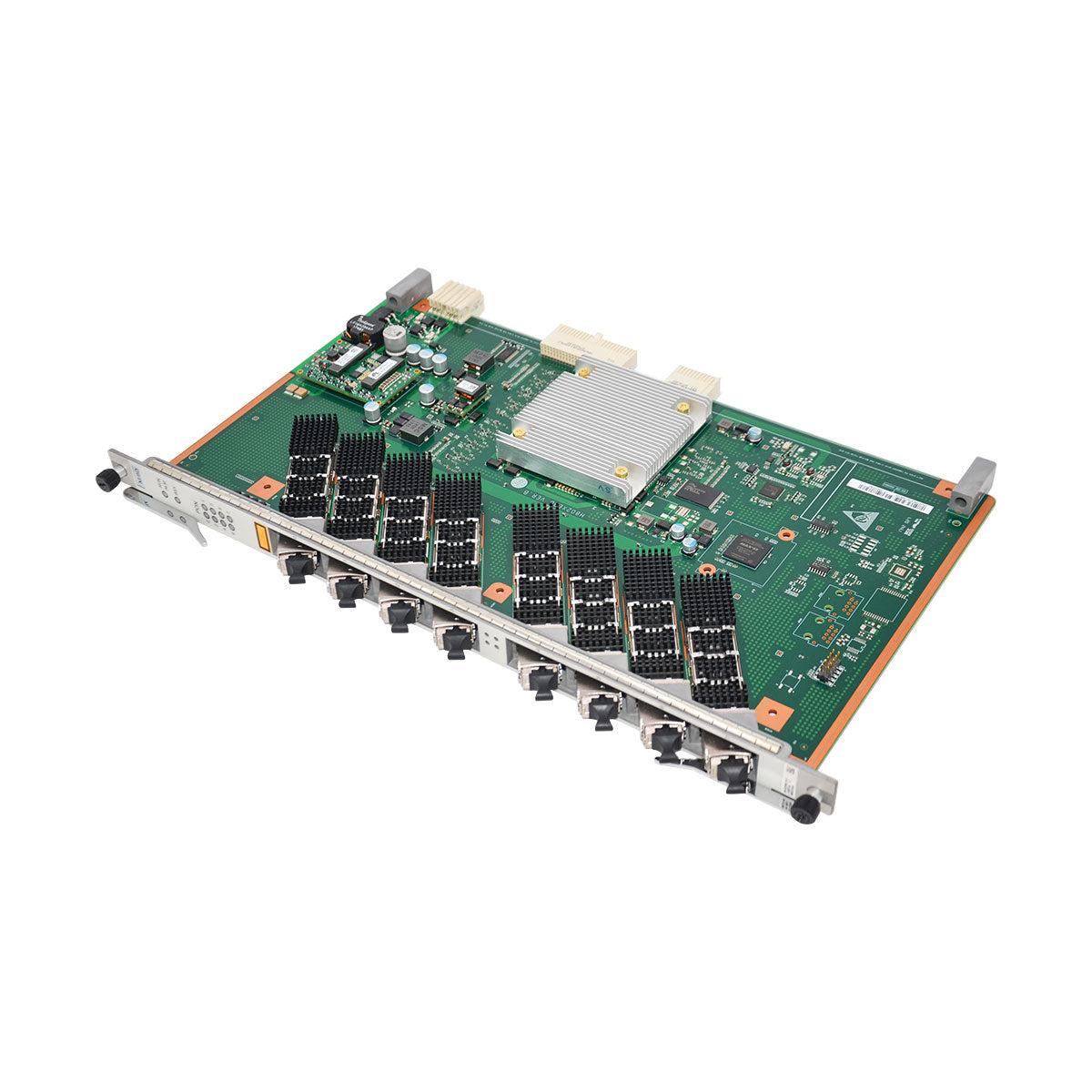

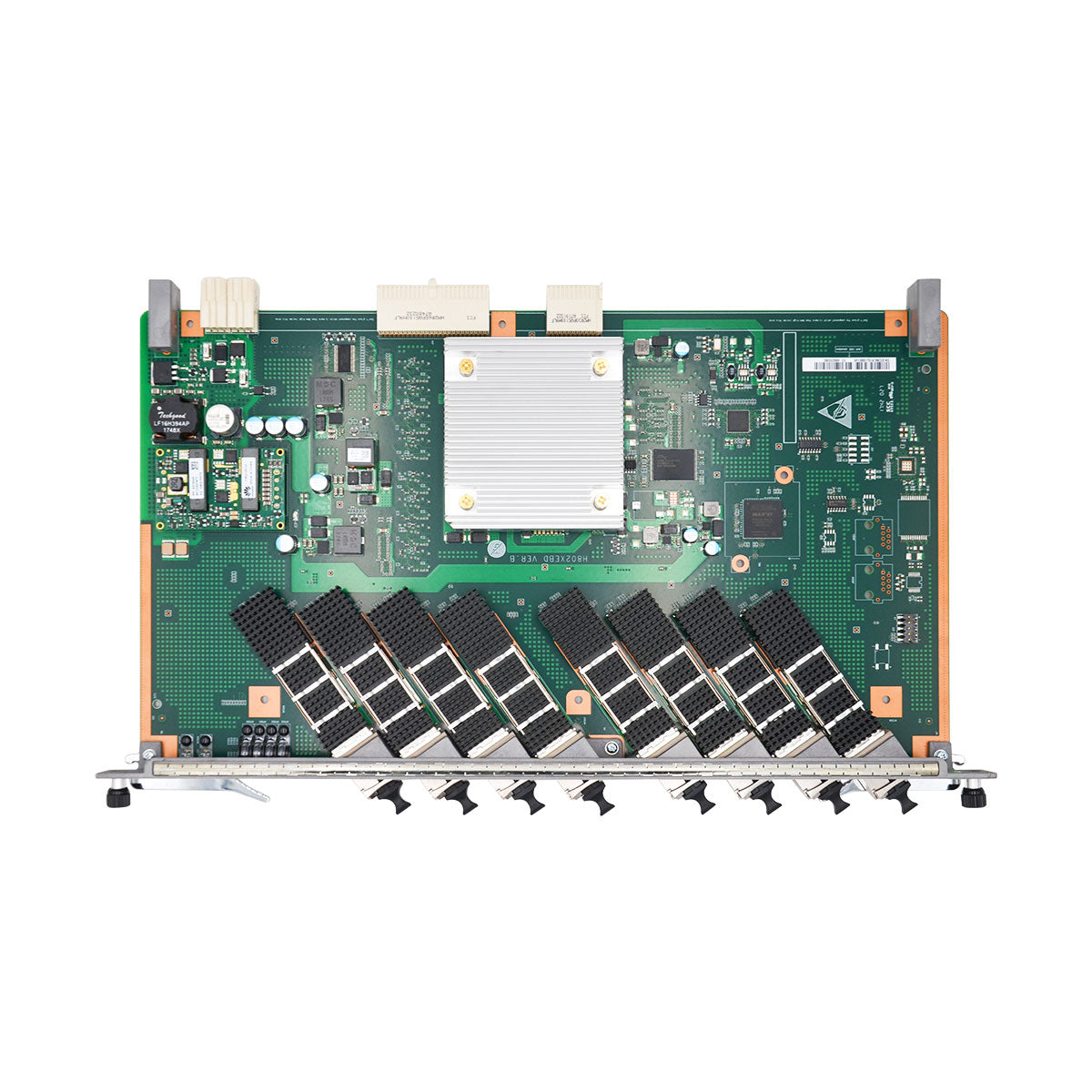

The H802XEBD board is an 8-port 10G-EPON OLT interface board. It works together with the optical network unit (ONU) to provide 10G-EPON access services

8 10G-EPON port (XFP)

Maximum split ratio 1: 128

Rate mode: Asymmetric rate

Port rate:
upstream: 1.25Gbit/s
downstream: 10.3125Gbit/1.25Gbit/s

XFP Modules supported: Asymmetric PRX30

MAC address table size: 8192



Specification
Service ports
EPON Port 8 10G EPON Port
EPON XFP Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength

Tx：1490nm、1577nm

Rx：1310nm
Encapsulation Type XFP
Port Rate

Tx：10.3125Gbit/s、1.25Gbit/s

Rx：1.25Gbit/s
Minimun Output Optical Power

10G: 2 dBm

1G: 2.5 dBm
Maximum Output Optical Power

10G: 5 dBm

1G: 7 dBm
Maximum Receiver Sensitivity -29.78dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -9.38dBm
Extinction Ratio

10G: 6 dB

1G: 9 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25 W; Maximum: 54 W
Maximum Frame Size

1996 bytes (1G)

2004 bytes (10G)
Operating temperature -40°C to +65°C

The H802XEBD board is an 8-port 10G-EPON OLT interface board. It works together with the optical network unit (ONU) to provide 10G-EPON access services

8 10G-EPON port (XFP)

Maximum split ratio 1: 128

Rate mode: Asymmetric rate

Port rate:
upstream: 1.25Gbit/s
downstream: 10.3125Gbit/1.25Gbit/s

XFP Modules supported: Asymmetric PRX30

MAC address table size: 8192



Specification
Service ports
EPON Port 8 10G EPON Port
EPON XFP Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength

Tx：1490nm、1577nm

Rx：1310nm
Encapsulation Type XFP
Port Rate

Tx：10.3125Gbit/s、1.25Gbit/s

Rx：1.25Gbit/s
Minimun Output Optical Power

10G: 2 dBm

1G: 2.5 dBm
Maximum Output Optical Power

10G: 5 dBm

1G: 7 dBm
Maximum Receiver Sensitivity -29.78dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -9.38dBm
Extinction Ratio

10G: 6 dB

1G: 9 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25 W; Maximum: 54 W
Maximum Frame Size

1996 bytes (1G)

2004 bytes (10G)
Operating temperature -40°C to +65°C
