Huawei H806GPBH 8-port GPON Board for MA5600T series OLT
- Unified 16*PON Module
- Original Package
- Board and Modules Tested

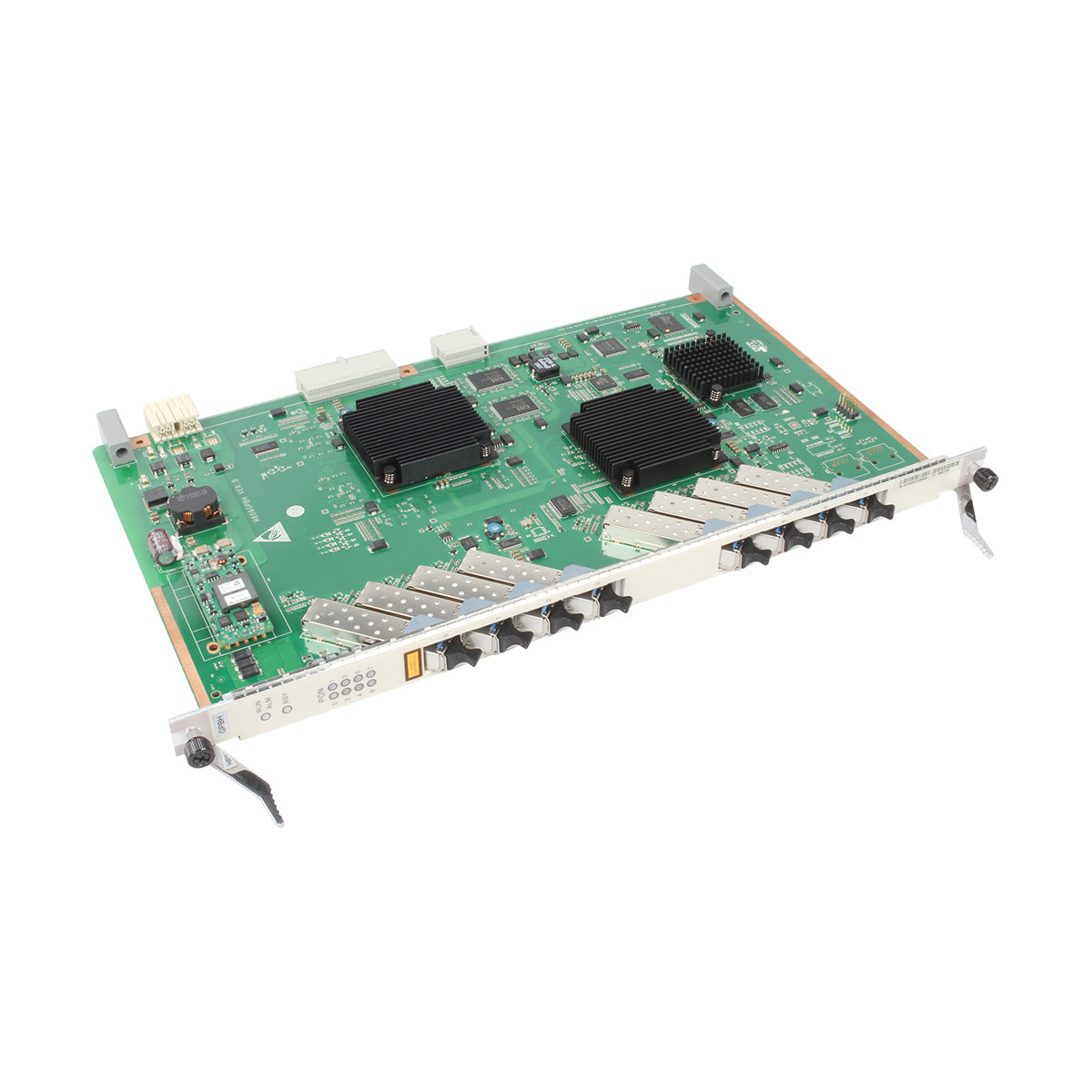

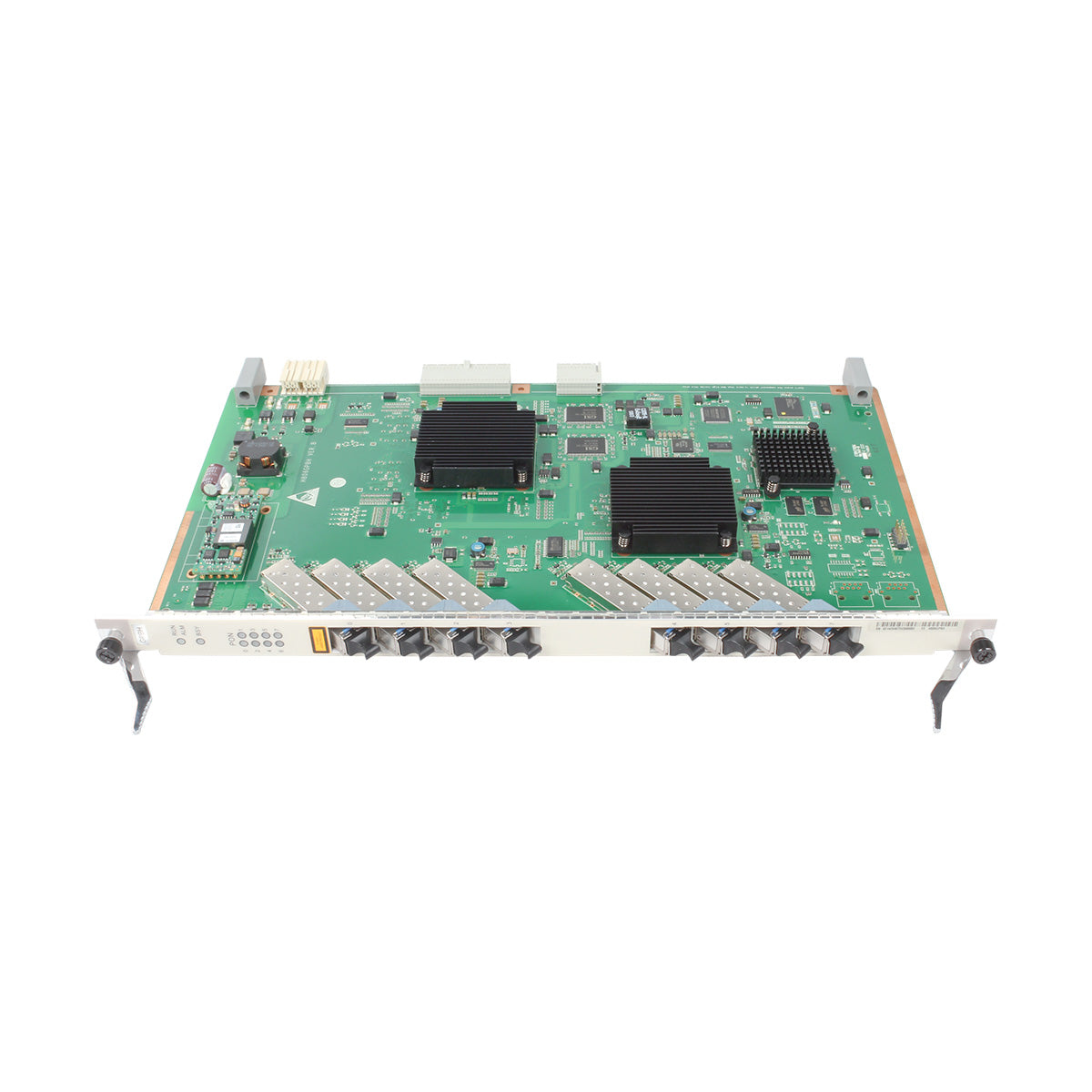

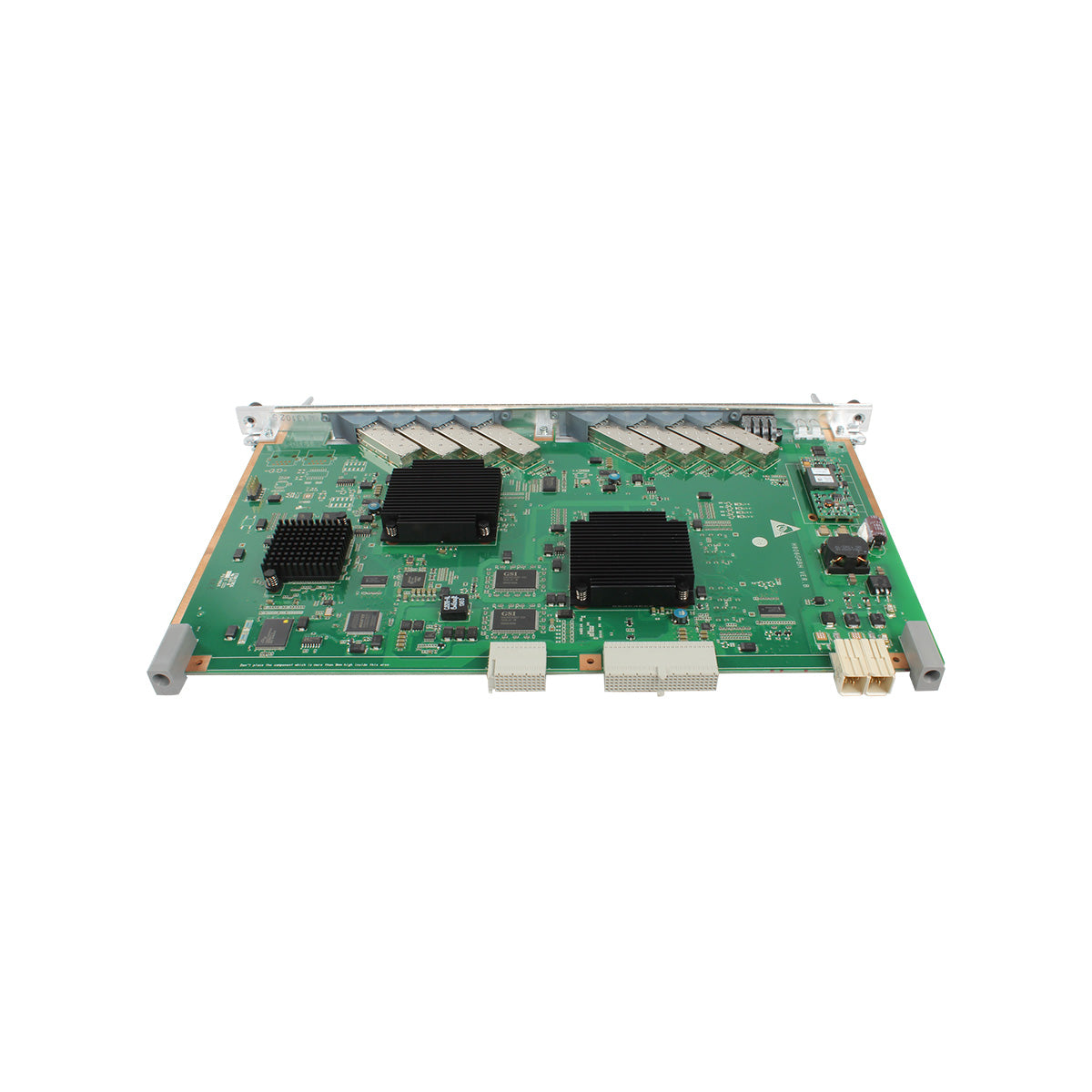

The H806GPBH board is an 8-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.
8 GPON ports (SFP)
Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128
Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s
Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
MAC address table size: 16384
Service flows per PON board: 8184
Available DBA bandwidth: 1238784 kbit/s
Service ports | |
GPON Port | 8-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimum Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (mm) | 22.86 (W) x 237.00 (D) x 395.40 (H) |
Power Consumption and Maximum Frame Size | |
Power Consumption | H806GPBH : Static: 32 W, Maximum: 46 W |
H807GPBH: The data is being tested. | |
Maximum Frame Size | 2004 bytes |
Operating temperature | -25°C to +65°C |
Comparison of MA5600T Series OLT GPON service board
Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
MAX Split ratio (Class B+) | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 |
MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
D-CMTS | No | No | No | No | No | Yes |
ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
Optical performance monitor | Yes (querying Rx optical power is not supported) | Yes | Yes | Yes | Yes | Yes |
RSSI detection and controlled optical signal transmission of the optical module | No | Yes | Yes | Yes | Yes | Yes |
ONU-based rate limitation | × | √ | √ | √ | √ | √ |
CAR group | × | √ | √ | √ | √ | √ |
Temperature query and high temperature alarm | Yes | Yes | Yes | Yes | Yes | Yes |
Automatic power shutdown in case of a high temperature | No | Yes | Yes | Yes | Yes | Yes |
Maximum differential fibre distance (km) | 20 | 20 | 20 | 40 | 40 | 40 |
Maximum Number of Service Flows Supported by the Board | 8184 | 8184 | 8184 | 16368 | 8184 | 6144 |
Maximum Number of MAC address Supported by the Board | 32768 | 32768 | 32768 | 32768 | 32768 | 32768 |
Available DBA bandwidth (based on single port) (kbit/s) | 1238400 | 1238784 | 1238784 | 1238784 | 1238784 | 1238784 |
Number of T-CONT supported by each GPON port | 256 | 1024 | 1024 | 1024 | 1024 | 1024 |
Board supporting downstream FEC | Yes | Yes | Yes | Yes | Yes | Yes |
Board supporting upstream FEC | No | Yes | Yes | Yes | Yes | Yes |
Rogue ONT detection | No | Yes | Yes | Yes | Yes | Yes |
Number of ONUs supported by a GPON port | 64 | 128 | 128 | 128 | 128 | 128 |
Number of GEM ports supported by each board | 8192 | 8192 | 8192 | 16384 | 8192 | 8192 |
Number of GEM ports supported by each GPON port | 3872 | 3872 | 3872 | 3872 | 3872 | 3872 |
Number of service ports supported by each GEM port | 8 | 8 | 8184 | 8184 | 8184 | 7168 |
HQoS (four levels) | × | × | × | H802GPFD: × | H806GPBH: × | × |
H805GPFD: √ | H807GPBH: √ | |||||
9216-byte Jumbo frames | × | × | × | H802GPFD: × | H806GPBH: × | × |
H805GPFD: √ | H807GPBH: √ | |||||
Power budget supported by a GPON port | Class B+ (28.5 dB, mostly used) | Class B+ (28.5 dB, mostly used), | ||||
Class C+ (32 dB long reach transmission) | ||||||
Class C++: 35 dB | ||||||
Minimum bandwidth supported by a T-CONT | 512kbps | 1 Mbit/s (in the minimum delay mode) | ||||
128 kbit/s (in the maximum bandwidth usage mode) |
The H806GPBH board is an 8-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.
8 GPON ports (SFP)
Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128
Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s
Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
MAC address table size: 16384
Service flows per PON board: 8184
Available DBA bandwidth: 1238784 kbit/s
Service ports | |
GPON Port | 8-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimum Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (mm) | 22.86 (W) x 237.00 (D) x 395.40 (H) |
Power Consumption and Maximum Frame Size | |
Power Consumption | H806GPBH : Static: 32 W, Maximum: 46 W |
H807GPBH: The data is being tested. | |
Maximum Frame Size | 2004 bytes |
Operating temperature | -25°C to +65°C |
Comparison of MA5600T Series OLT GPON service board
Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
MAX Split ratio (Class B+) | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 |
MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
D-CMTS | No | No | No | No | No | Yes |
ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
Optical performance monitor | Yes (querying Rx optical power is not supported) | Yes | Yes | Yes | Yes | Yes |
RSSI detection and controlled optical signal transmission of the optical module | No | Yes | Yes | Yes | Yes | Yes |
ONU-based rate limitation | × | √ | √ | √ | √ | √ |
CAR group | × | √ | √ | √ | √ | √ |
Temperature query and high temperature alarm | Yes | Yes | Yes | Yes | Yes | Yes |
Automatic power shutdown in case of a high temperature | No | Yes | Yes | Yes | Yes | Yes |
Maximum differential fibre distance (km) | 20 | 20 | 20 | 40 | 40 | 40 |
Maximum Number of Service Flows Supported by the Board | 8184 | 8184 | 8184 | 16368 | 8184 | 6144 |
Maximum Number of MAC address Supported by the Board | 32768 | 32768 | 32768 | 32768 | 32768 | 32768 |
Available DBA bandwidth (based on single port) (kbit/s) | 1238400 | 1238784 | 1238784 | 1238784 | 1238784 | 1238784 |
Number of T-CONT supported by each GPON port | 256 | 1024 | 1024 | 1024 | 1024 | 1024 |
Board supporting downstream FEC | Yes | Yes | Yes | Yes | Yes | Yes |
Board supporting upstream FEC | No | Yes | Yes | Yes | Yes | Yes |
Rogue ONT detection | No | Yes | Yes | Yes | Yes | Yes |
Number of ONUs supported by a GPON port | 64 | 128 | 128 | 128 | 128 | 128 |
Number of GEM ports supported by each board | 8192 | 8192 | 8192 | 16384 | 8192 | 8192 |
Number of GEM ports supported by each GPON port | 3872 | 3872 | 3872 | 3872 | 3872 | 3872 |
Number of service ports supported by each GEM port | 8 | 8 | 8184 | 8184 | 8184 | 7168 |
HQoS (four levels) | × | × | × | H802GPFD: × | H806GPBH: × | × |
H805GPFD: √ | H807GPBH: √ | |||||
9216-byte Jumbo frames | × | × | × | H802GPFD: × | H806GPBH: × | × |
H805GPFD: √ | H807GPBH: √ | |||||
Power budget supported by a GPON port | Class B+ (28.5 dB, mostly used) | Class B+ (28.5 dB, mostly used), | ||||
Class C+ (32 dB long reach transmission) | ||||||
Class C++: 35 dB | ||||||
Minimum bandwidth supported by a T-CONT | 512kbps | 1 Mbit/s (in the minimum delay mode) | ||||
128 kbit/s (in the maximum bandwidth usage mode) |
