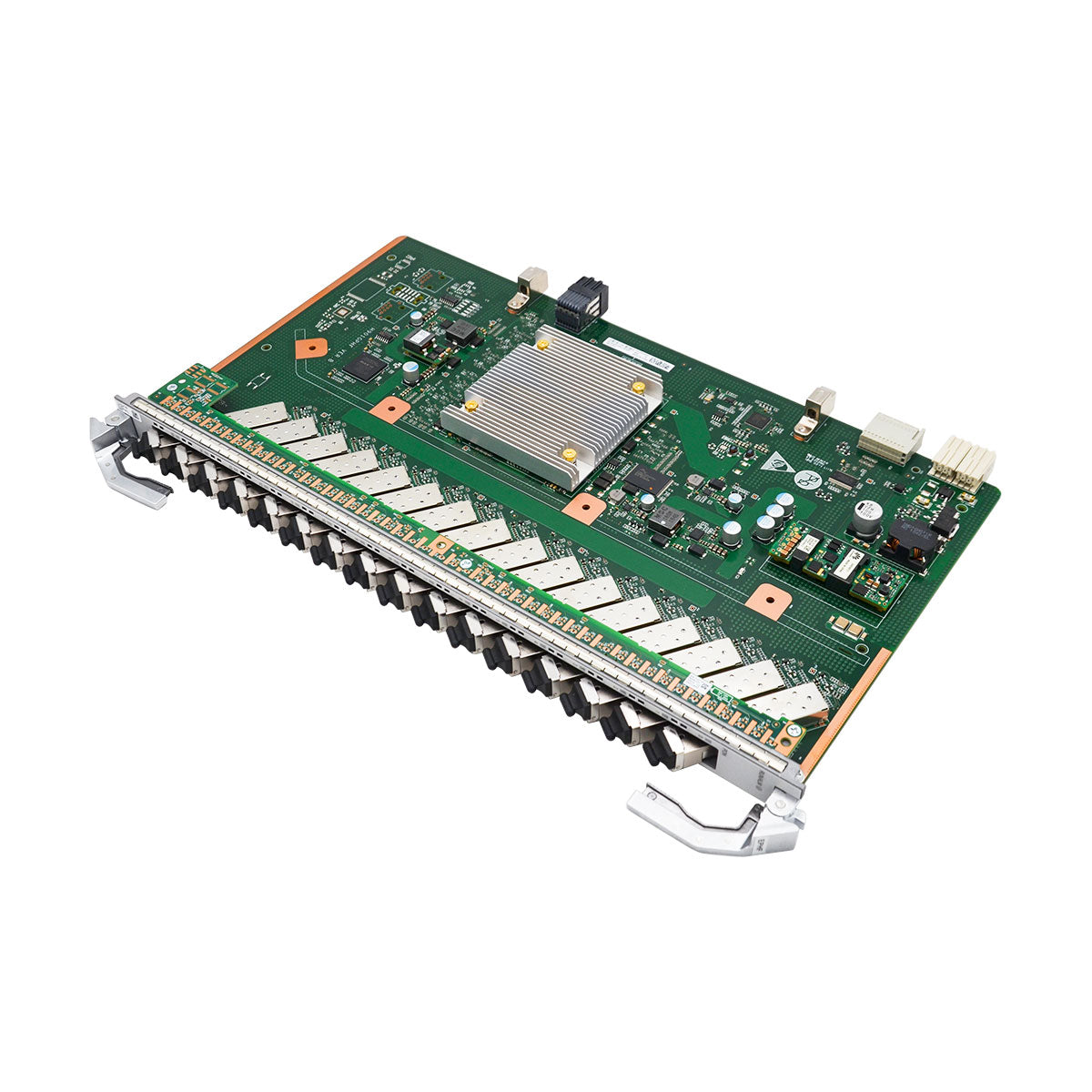

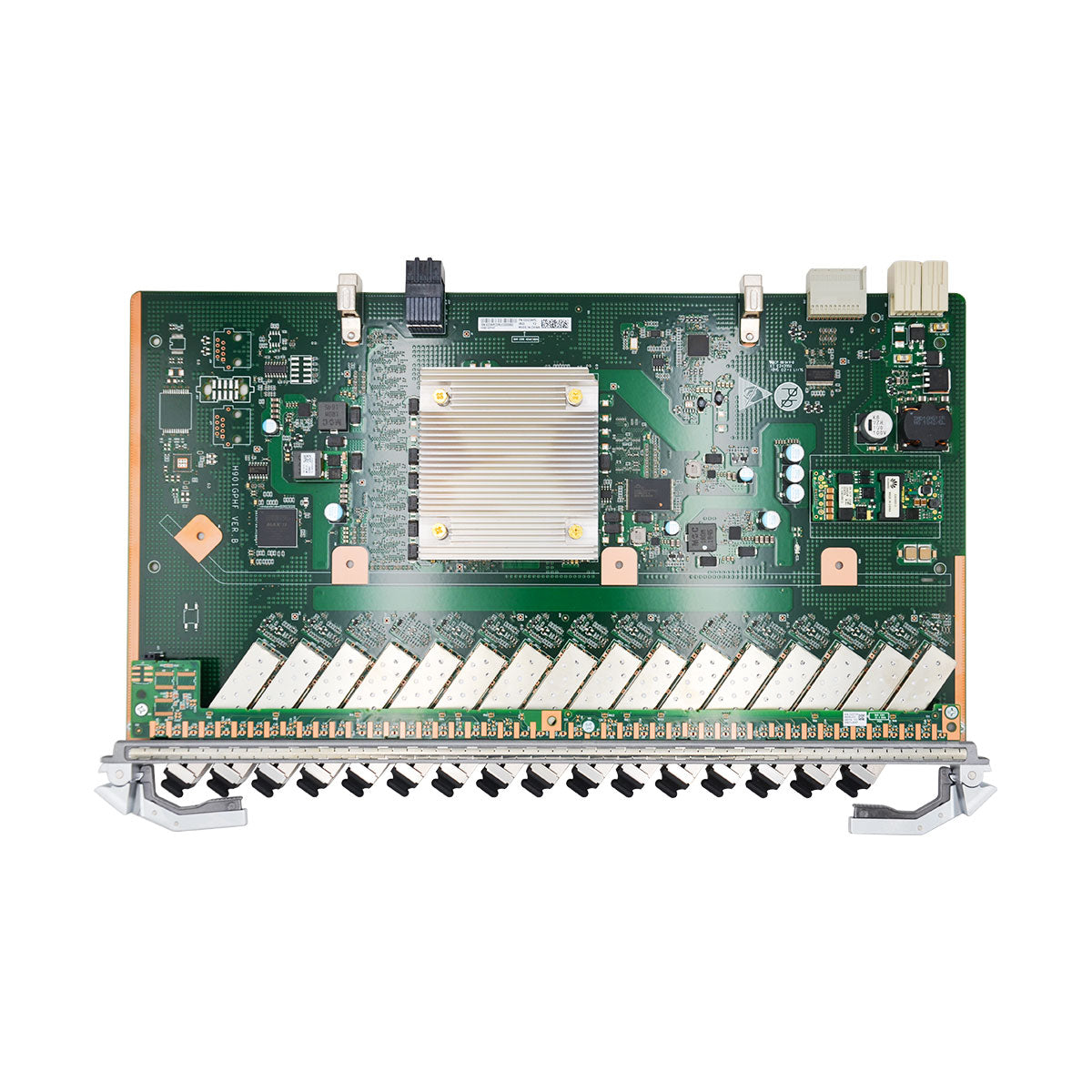

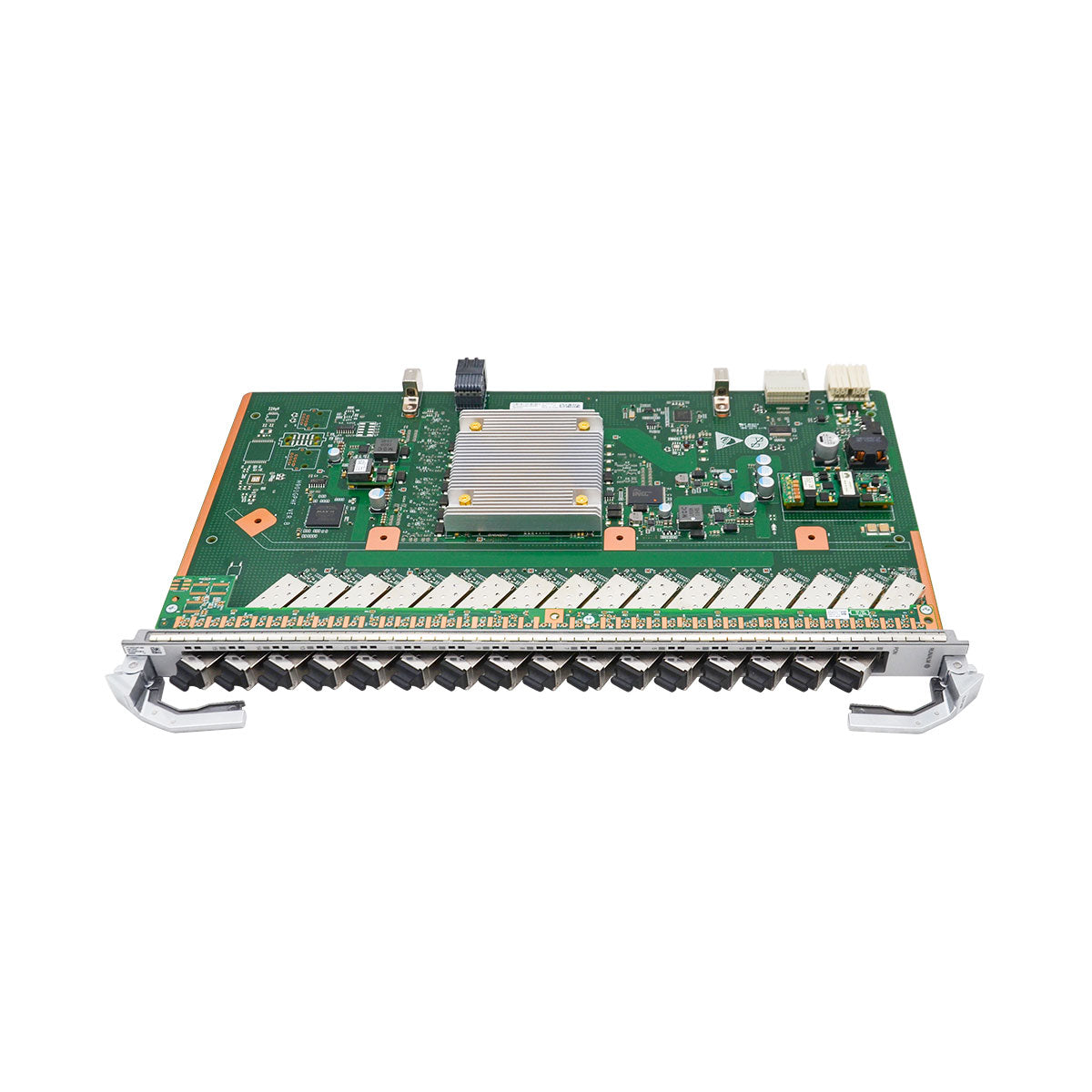

Huawei H901EPHF 16-port EPON Board for MA5800 series OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei H901EPHF 16-port EPON Board for MA5800 series OLT

  • Unified 16*PON Module
  • Original Package
  • Board and Modules Tested
Available:In Stock
$0.00

The H901EPHF board is an 16-port EPON OLT interface board. It works together with the optical network unit (ONU) to provide EPON access services

16 EPON port (SFP)

Maximum split ratio 1: 64

Maximum receive sensitivity:
PX20: -27dBm
PX20+: -30dBm
PX20++: -34dBm

Optical Power:
PX20: 2~7dBm
PX20+:2.5~7dBm
PX20++5~9dBm

Specification
Service ports
GPON Port 16-EPON Port
GPON SFP Module Specification
Type EPON Module : One-fiber bi-directional optical module, PX20++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate 1.25Gbit/s
Minimun Output Optical Power 5.00 dBm
Maximum Output Optical Power 9.00 dBm
Maximum Receiver Sensitivity -34.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -10.0 dBm
Extinction Ratio 9dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 23W; Maximum:38W
Maximum Frame Size 2052 bytes
Operating temperature -40°C to +65°C





The H901EPHF board is an 16-port EPON OLT interface board. It works together with the optical network unit (ONU) to provide EPON access services

16 EPON port (SFP)

Maximum split ratio 1: 64

Maximum receive sensitivity:
PX20: -27dBm
PX20+: -30dBm
PX20++: -34dBm

Optical Power:
PX20: 2~7dBm
PX20+:2.5~7dBm
PX20++5~9dBm

Specification
Service ports
GPON Port 16-EPON Port
GPON SFP Module Specification
Type EPON Module : One-fiber bi-directional optical module, PX20++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate 1.25Gbit/s
Minimun Output Optical Power 5.00 dBm
Maximum Output Optical Power 9.00 dBm
Maximum Receiver Sensitivity -34.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -10.0 dBm
Extinction Ratio 9dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 23W; Maximum:38W
Maximum Frame Size 2052 bytes
Operating temperature -40°C to +65°C
