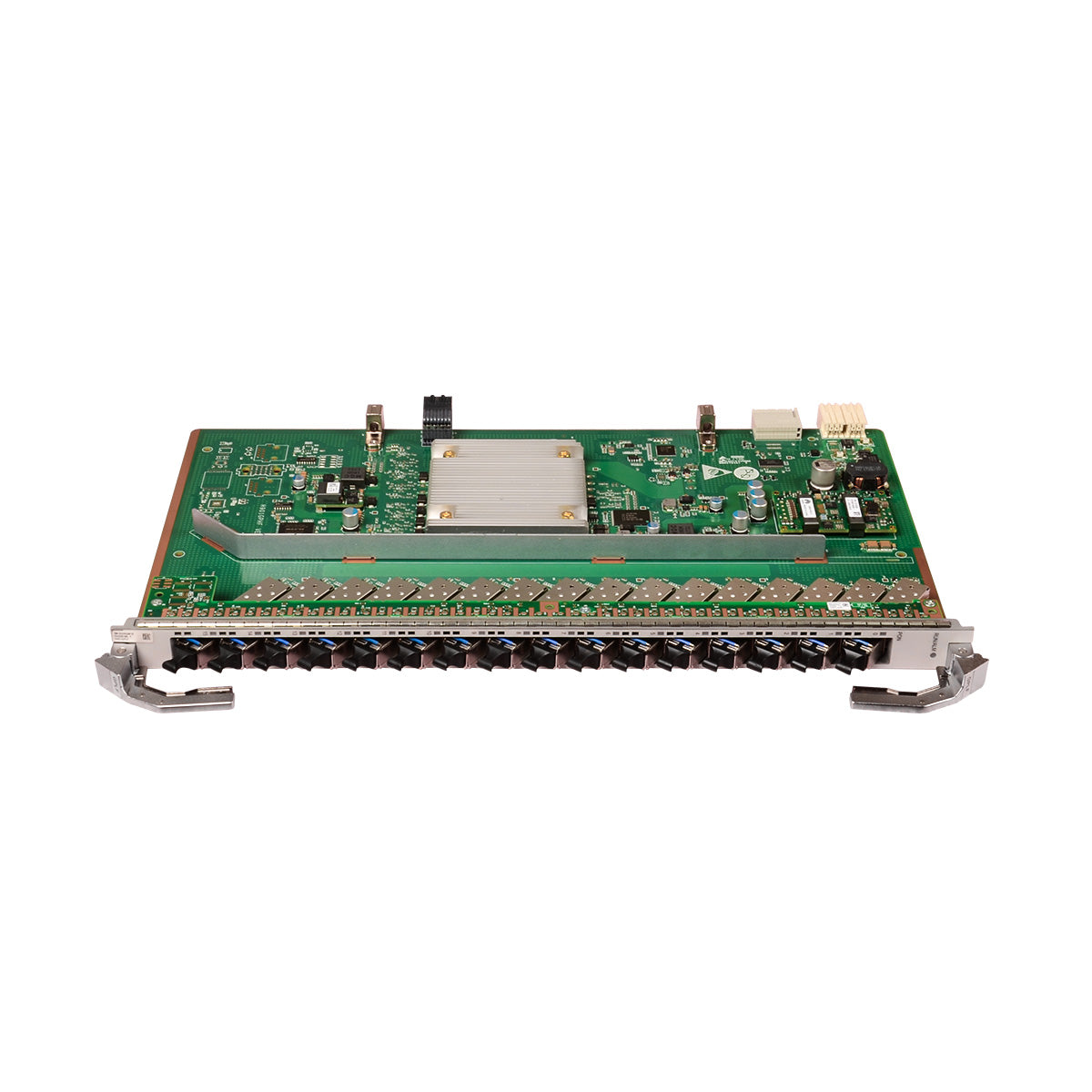

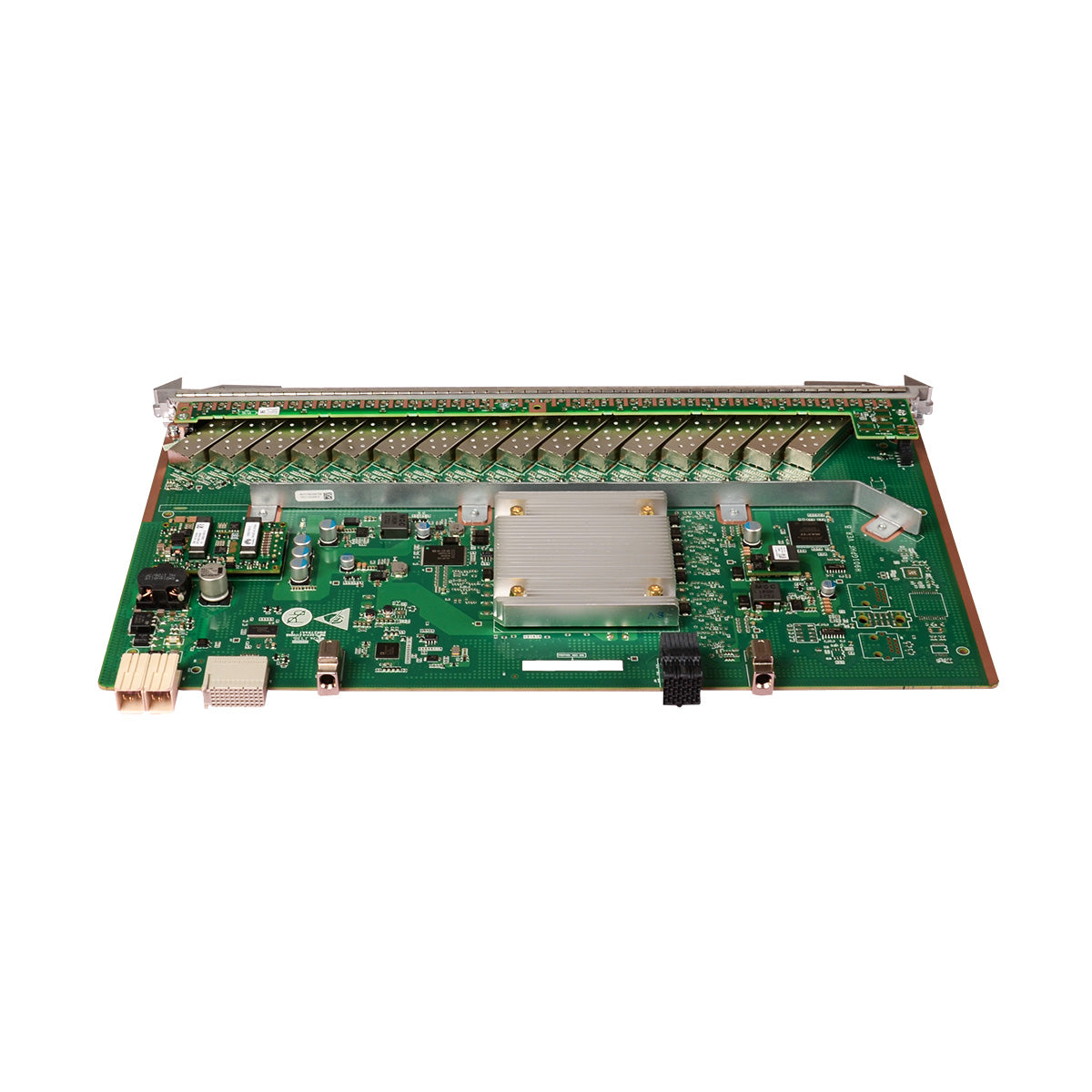

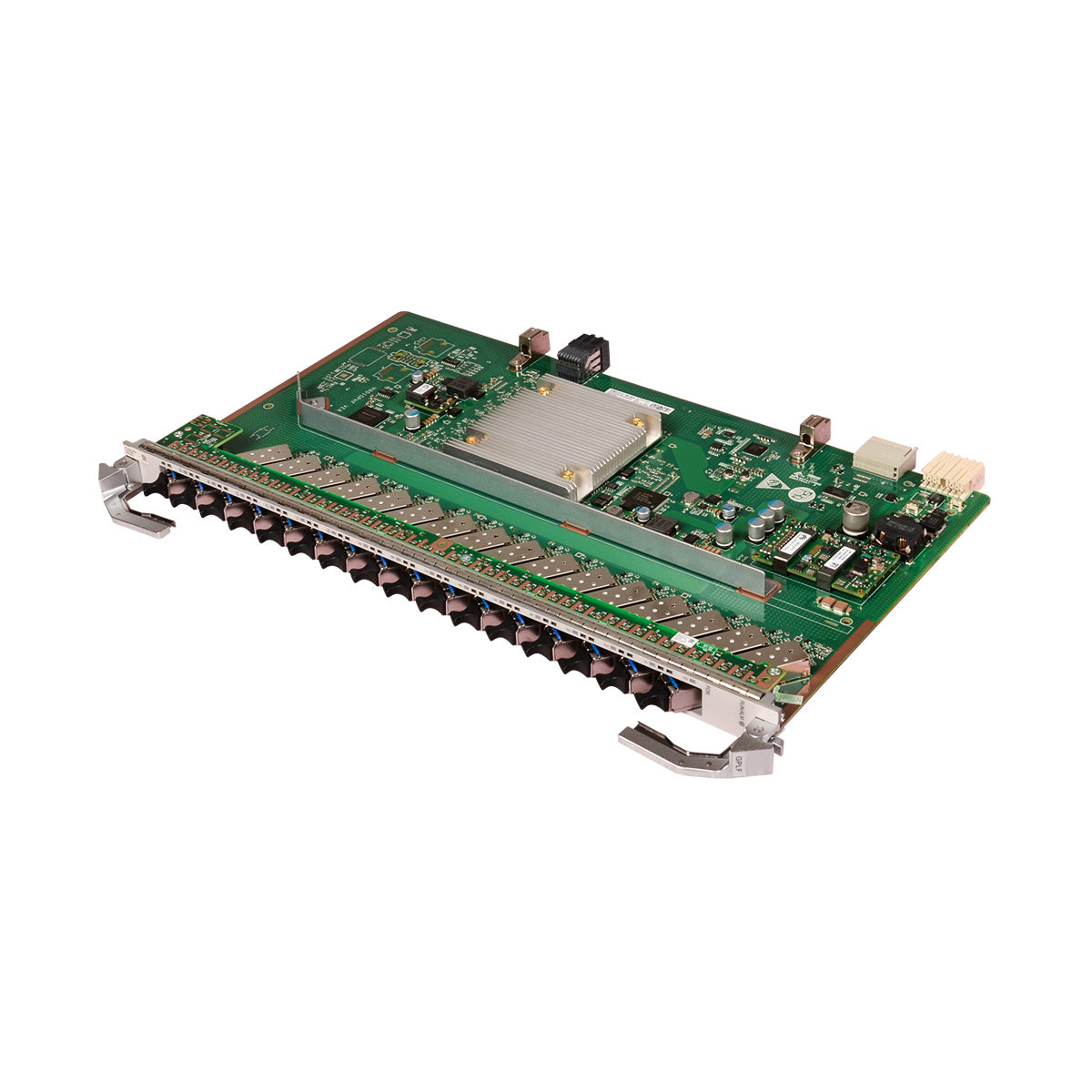

Huawei H901GPLF 16-port GPON Board for MA5800 series OLT
- Unified 16*PON Module
- Original Package
- Board and Modules Tested
- Support 9216 bytes (jumbo frame enabled)
The H901GPLF board is a 16-port GPON interface board. It works with the optical network unit (ONU) to provide GPON access services
16 GPON ports (SFP)
Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128
Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s
Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
MAC address table size: 32768
Routes/ARP table size: 196608
Assured bandwidth: 1238784 kbit/s
Application scenario: FTTC/B/D,FTTH,FTTO/FTTM
Specification | |
Service ports | |
GPON Port | 16-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
Minimun Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Power Consumption and Maximum Frame Size | |
Power Consumption | Static: 25W; Maximum:50W |
Maximum Frame Size | 2052 bytes |
Operating temperature | -40°C to +65°C |
The H901GPLF board is a 16-port GPON interface board. It works with the optical network unit (ONU) to provide GPON access services
16 GPON ports (SFP)
Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128
Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s
Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
MAC address table size: 32768
Routes/ARP table size: 196608
Assured bandwidth: 1238784 kbit/s
Application scenario: FTTC/B/D,FTTH,FTTO/FTTM
Specification | |
Service ports | |
GPON Port | 16-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
Minimun Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Power Consumption and Maximum Frame Size | |
Power Consumption | Static: 25W; Maximum:50W |
Maximum Frame Size | 2052 bytes |
Operating temperature | -40°C to +65°C |
