Huawei H901MPLB Main Control Board for MA5800-X17/MA5800-X15/MA5800-X7 OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei H901MPLB Main Control Board for MA5800-X17/MA5800-X15/MA5800-X7 OLT

  • Latest 3rd-Party ONTs Compatible Firmware Loaded
  • Control Board Synchronized
Available:In Stock
$0.00

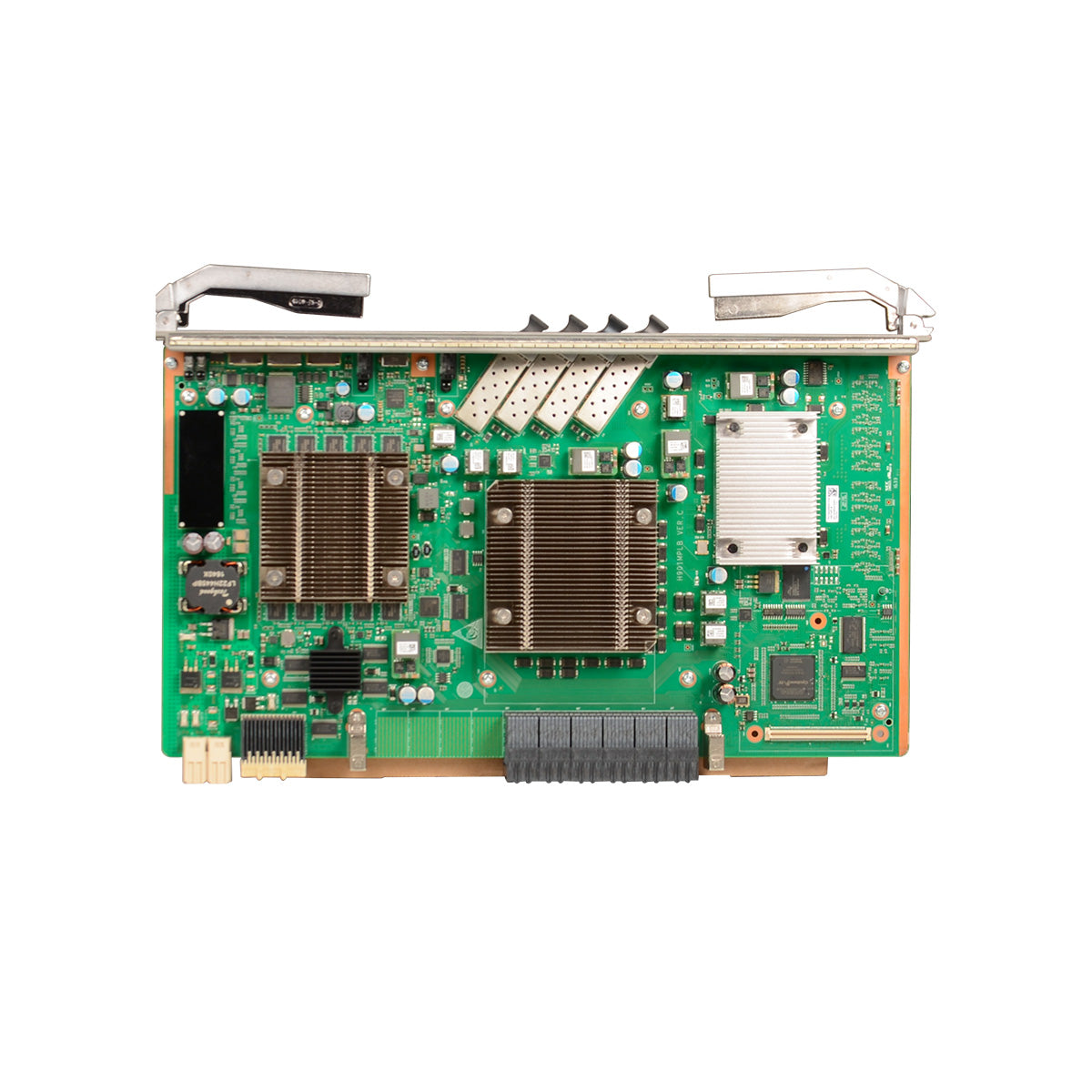

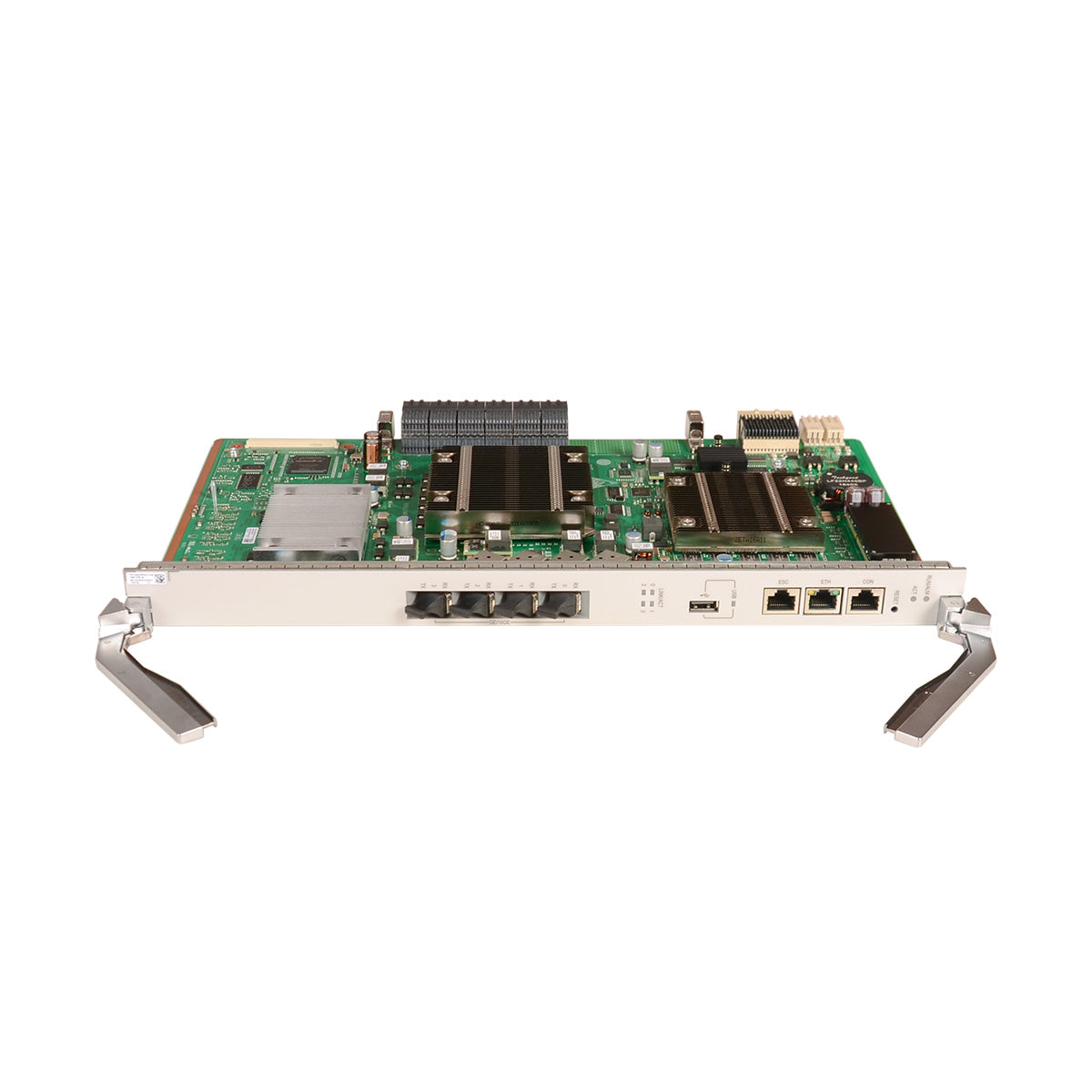

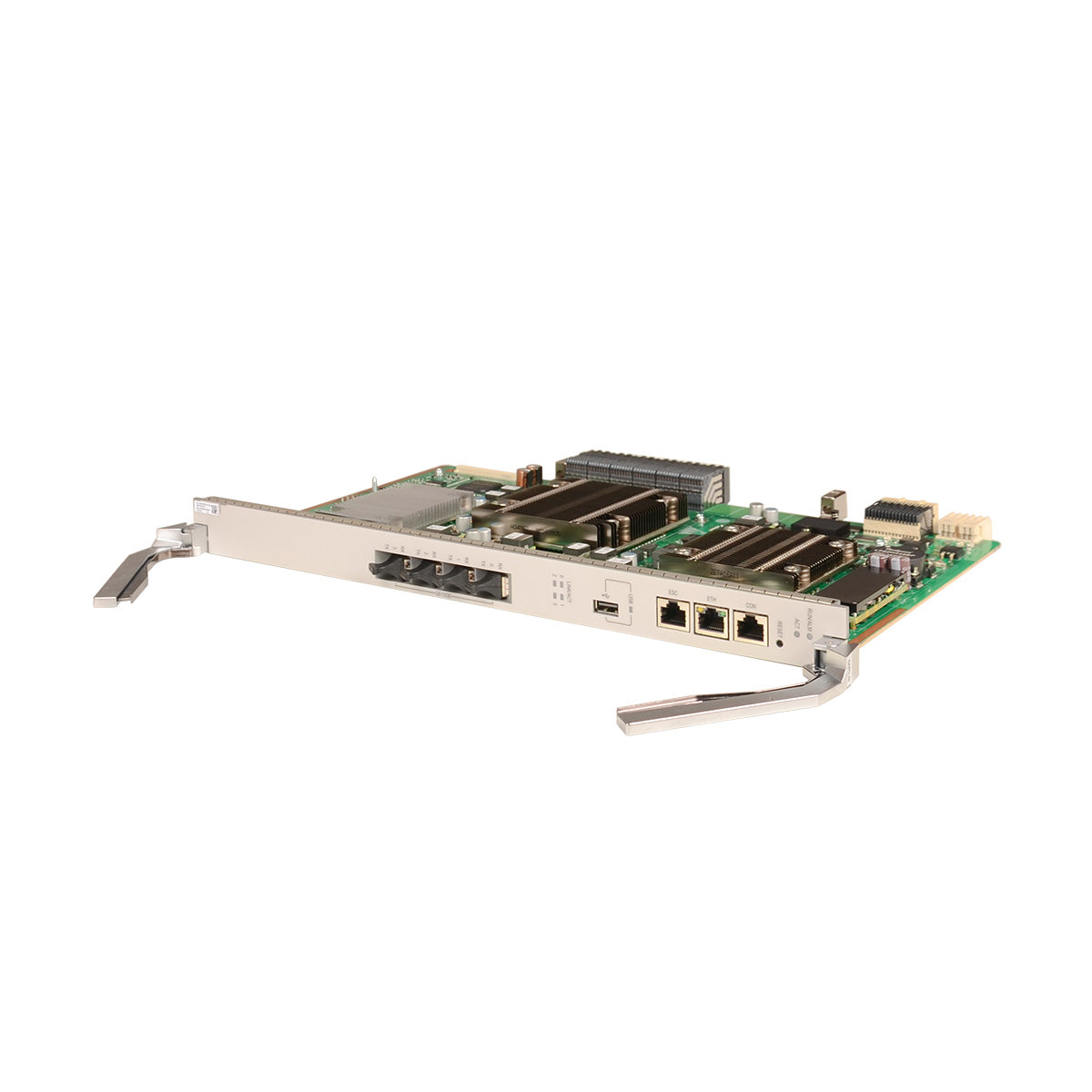

The H901MPLB board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.

Interfaces: TX RX0 to TX RX3 (4 x SFP+/SFP 10GE/GE ports)

Used for upstream transmission or cascading

Supports active/standby switchover at the control plane

Supports load sharing mode at the forwarding plane, doubling processing performance

Supports ISSU, saving the upgrade interruption time

Supports synchronization Ethernet

Supports 1588v2 and 1588ACR



Function
Bandwidth per slot 200Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 17408
Multicast user 17408
Configurable multicast channel 4096
Concurrent multicast channel 4000
IPv4 routing table 65536
IPv6 routing table 16384
Service port 139264
ARP table

66048 (Before the V100R017C10 version)
98816 (V100R017C10 version)
131072 (V100R018C00 and later version)

ACL rule 1042
Maximum Frame Size

2052 bytes.

9216 bytes (jumbo frame enabled)
Environment
Operating temperature -40°C to +65°C

Power consumption

Static: 62W
Maximum: 117 W
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 2.2

The H901MPLB board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.

Interfaces: TX RX0 to TX RX3 (4 x SFP+/SFP 10GE/GE ports)

Used for upstream transmission or cascading

Supports active/standby switchover at the control plane

Supports load sharing mode at the forwarding plane, doubling processing performance

Supports ISSU, saving the upgrade interruption time

Supports synchronization Ethernet

Supports 1588v2 and 1588ACR



Function
Bandwidth per slot 200Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 17408
Multicast user 17408
Configurable multicast channel 4096
Concurrent multicast channel 4000
IPv4 routing table 65536
IPv6 routing table 16384
Service port 139264
ARP table

66048 (Before the V100R017C10 version)
98816 (V100R017C10 version)
131072 (V100R018C00 and later version)

ACL rule 1042
Maximum Frame Size

2052 bytes.

9216 bytes (jumbo frame enabled)
Environment
Operating temperature -40°C to +65°C

Power consumption

Static: 62W
Maximum: 117 W
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 2.2
