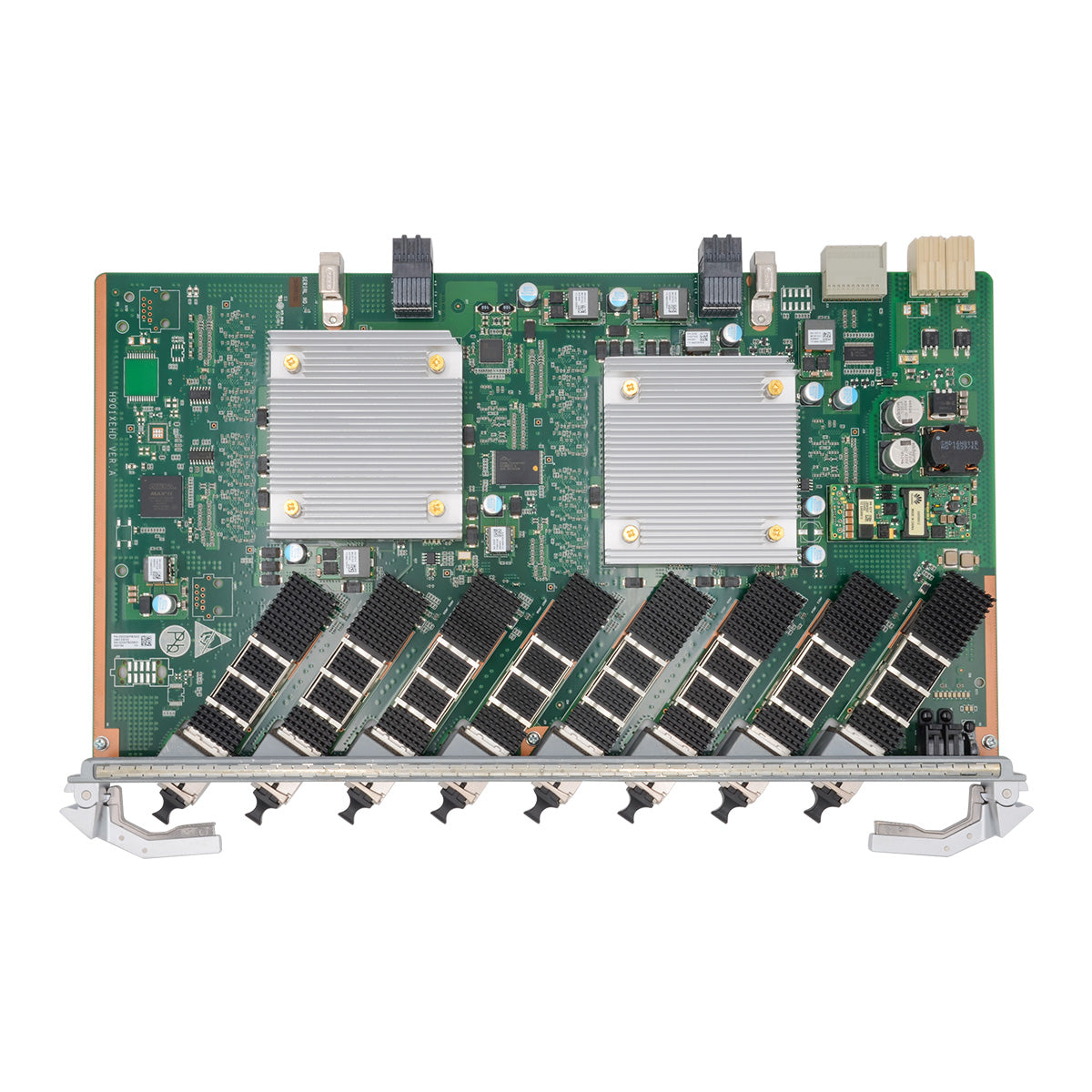

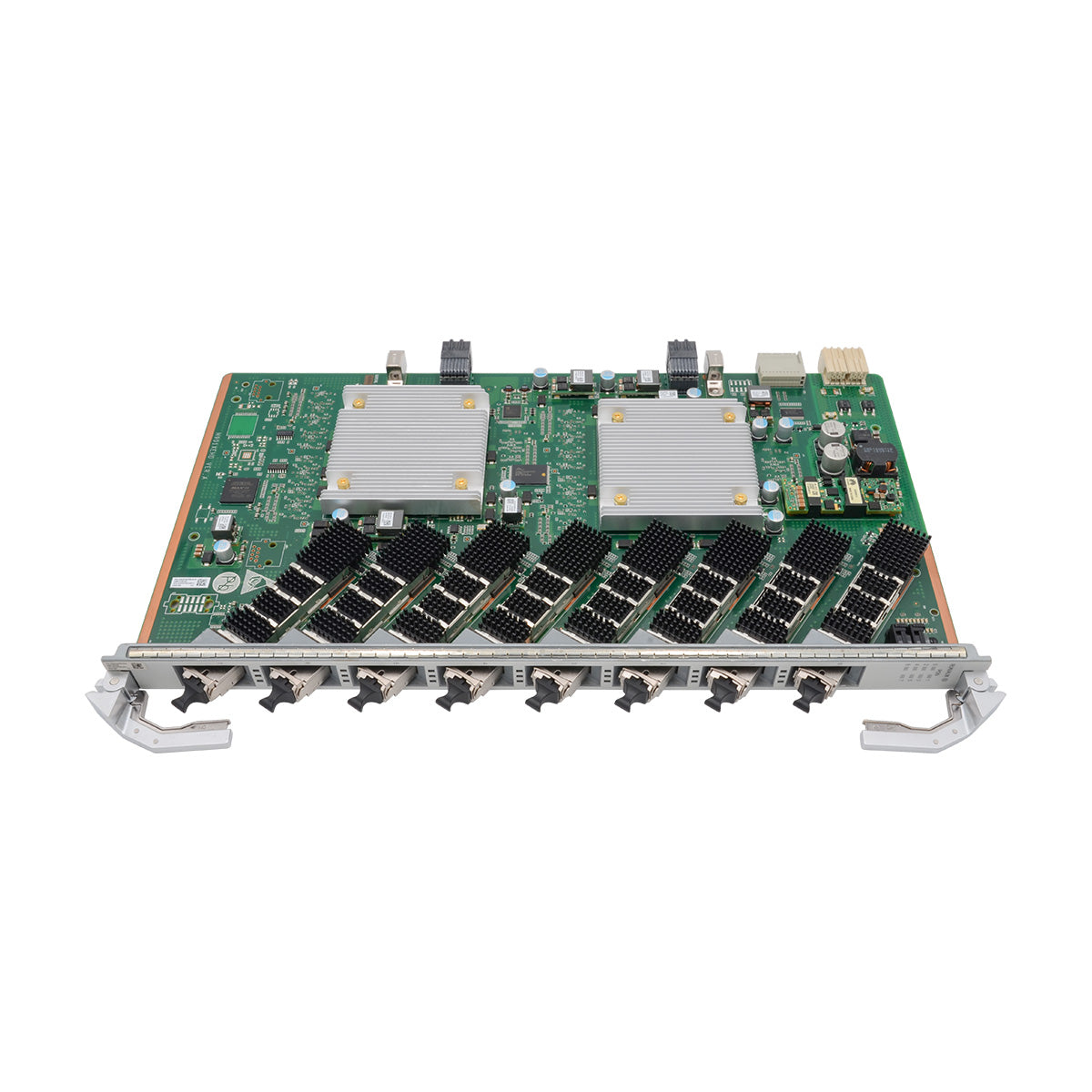

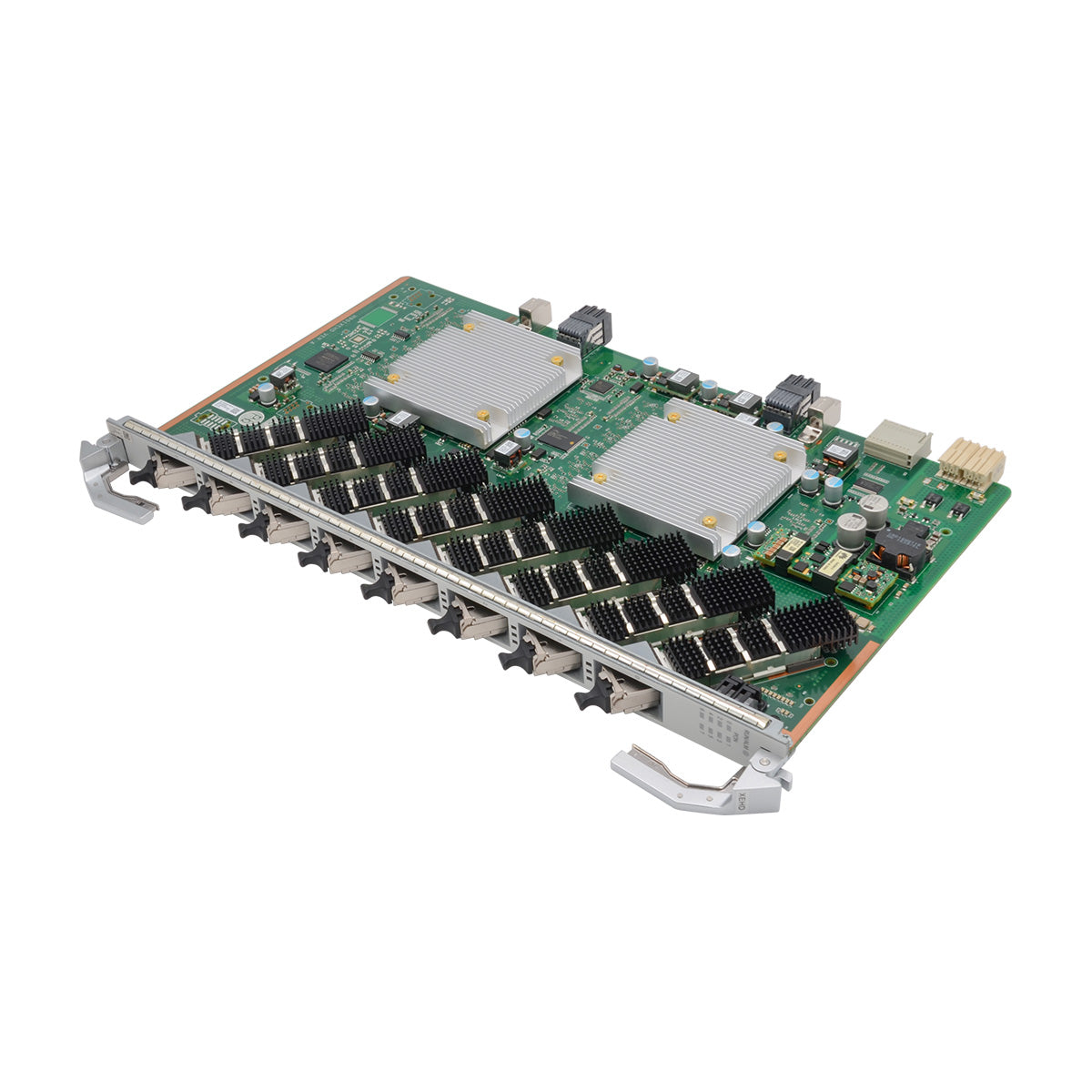

Huawei H901XEHD 8-port 10G-EPON Board for MA5800 series OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei H901XEHD 8-port 10G-EPON Board for MA5800 series OLT

  • Unified 8*PON Module
  • Original Package
  • Board and Modules Tested
Available:In Stock
$0.00

The H901XEHD board is an 8-port 10G-EPON OLT interface board. It works together with the optical network unit (ONU) to provide 10G-EPON access services

8 10G-EPON port (XFP)

Maximum split ratio 1: 128

Rate mode: Asymmetric and Symmetric rate

Port rate:

EPON upstream: 1.25Gbit/s
EPON downstream: 1.25Gbit/s
10G-EPON upstream: 10.3125Gbit/s&2.5Gbit/s
10G-EPON downstream: 10.3125Gbit/s
Asymmetric 10G-EPON upstream: 1.25Gbit/s
Asymmetric 10G-EPON  downstream: 10.3125Gbit/s&1.25Gbit/s

XFP Modules supported: Asymmetric PRX30; Symmetric PR30+

MAC address table size: 131072

Forwarding capability: 80Gbit/s

Specification
Service ports
GPON Port 8 10G EPON Port
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 60 km
Device Specifications
Forwarding capability 80 Gbit/s
Rate mode

Asymmetric
Symmetric

LLIDs per PON port 256
Service flows per PON board 16368
Maximum Frame Size 2052 bytes
Maximum number of MAC addresses 131072
Distance of two ONUs under the same PON port 60 km
1588v2

EPON mode: supported
10G EPON mode: not supported

Power Consumption Static: 40 W; Maximum: 65 W
Operating temperature -40°C to +65°C
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm

The H901XEHD board is an 8-port 10G-EPON OLT interface board. It works together with the optical network unit (ONU) to provide 10G-EPON access services

8 10G-EPON port (XFP)

Maximum split ratio 1: 128

Rate mode: Asymmetric and Symmetric rate

Port rate:

EPON upstream: 1.25Gbit/s
EPON downstream: 1.25Gbit/s
10G-EPON upstream: 10.3125Gbit/s&2.5Gbit/s
10G-EPON downstream: 10.3125Gbit/s
Asymmetric 10G-EPON upstream: 1.25Gbit/s
Asymmetric 10G-EPON  downstream: 10.3125Gbit/s&1.25Gbit/s

XFP Modules supported: Asymmetric PRX30; Symmetric PR30+

MAC address table size: 131072

Forwarding capability: 80Gbit/s

Specification
Service ports
GPON Port 8 10G EPON Port
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 60 km
Device Specifications
Forwarding capability 80 Gbit/s
Rate mode

Asymmetric
Symmetric

LLIDs per PON port 256
Service flows per PON board 16368
Maximum Frame Size 2052 bytes
Maximum number of MAC addresses 131072
Distance of two ONUs under the same PON port 60 km
1588v2

EPON mode: supported
10G EPON mode: not supported

Power Consumption Static: 40 W; Maximum: 65 W
Operating temperature -40°C to +65°C
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
