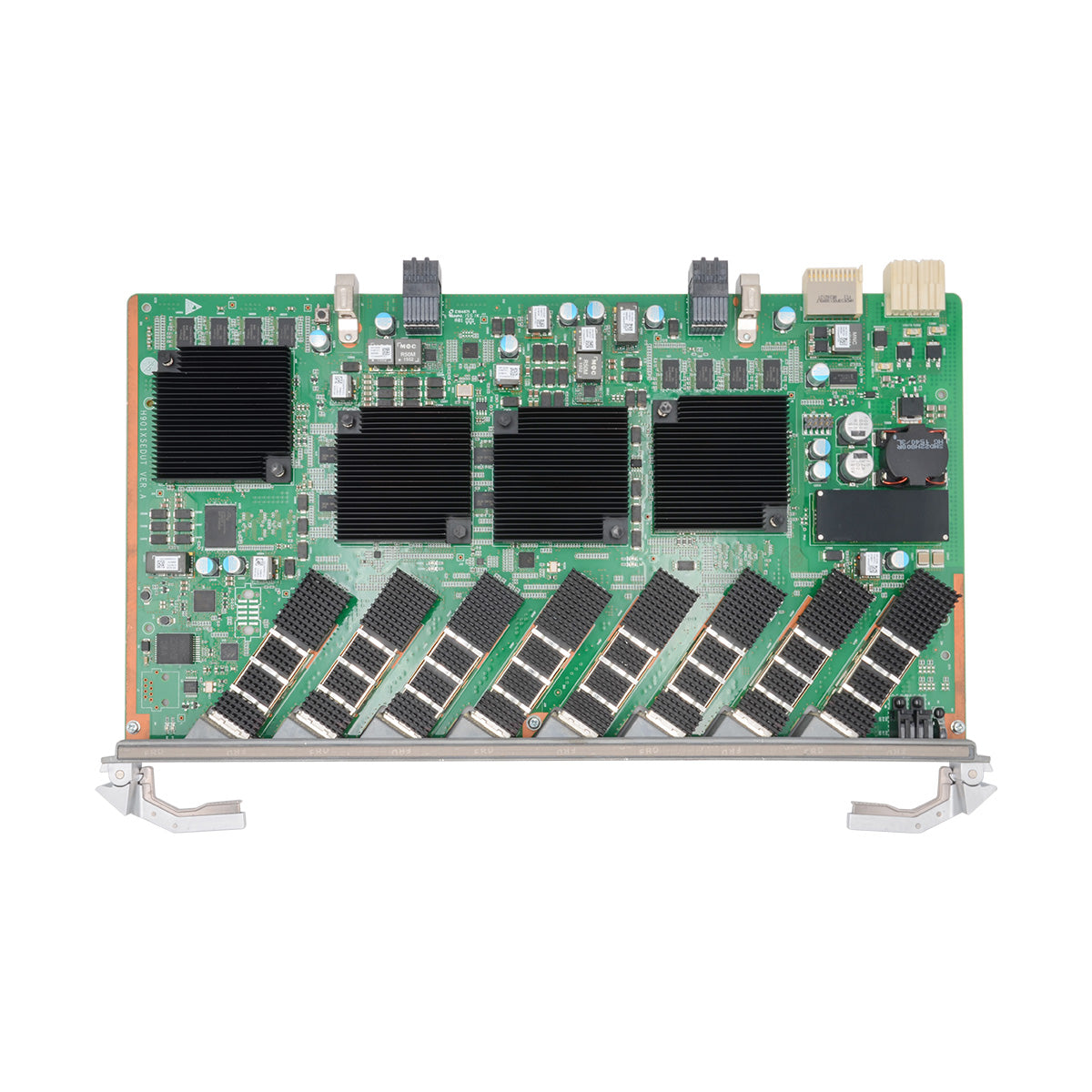

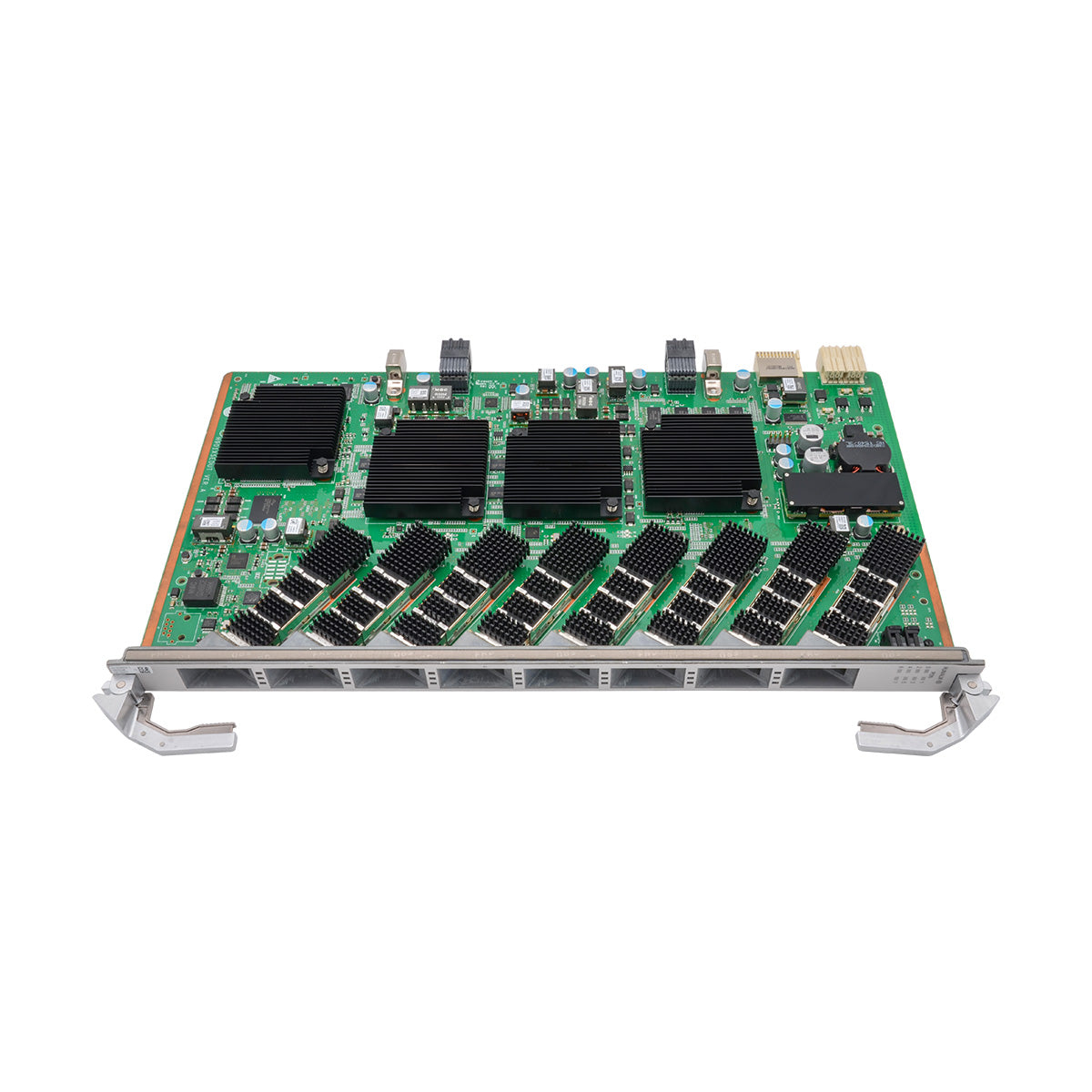

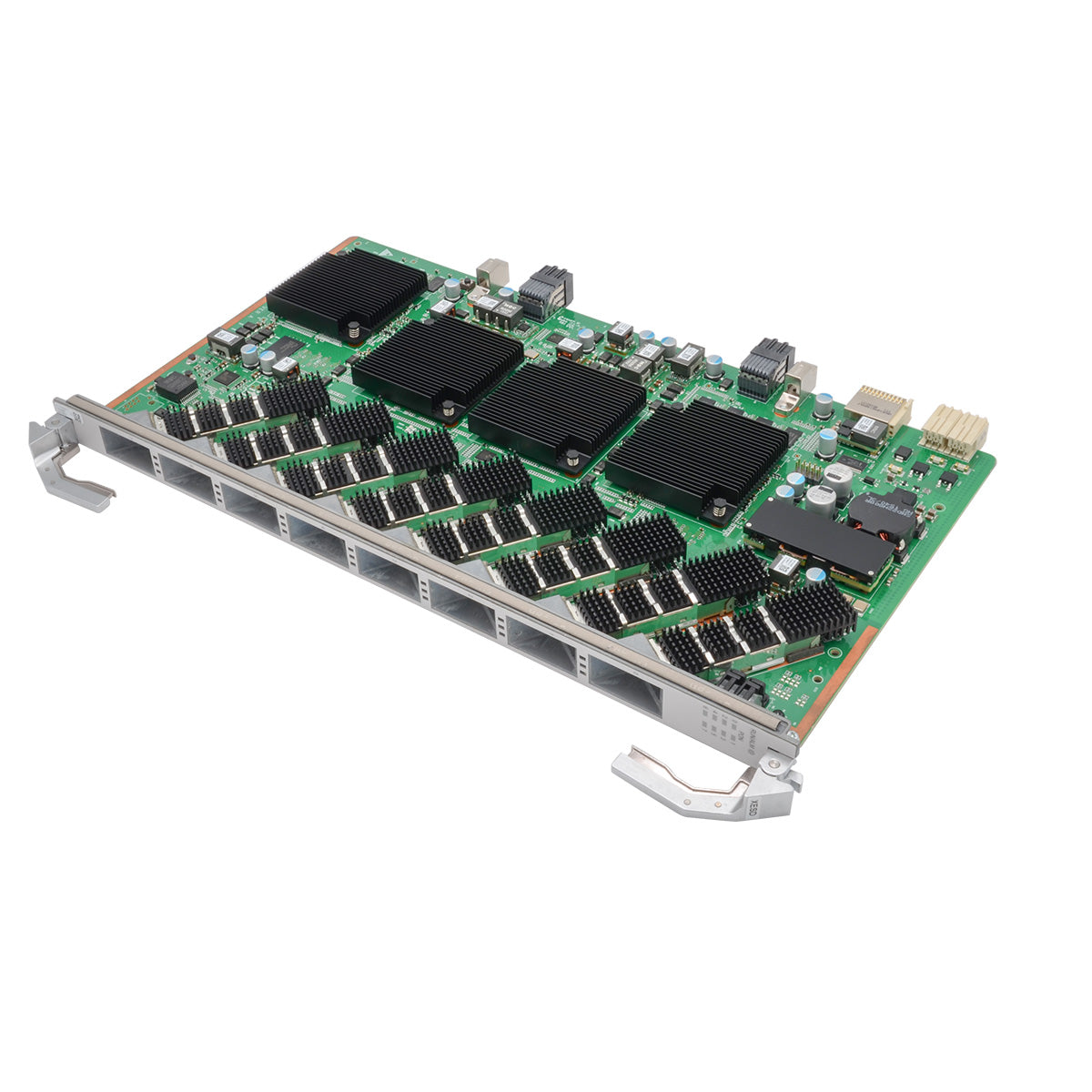

Huawei H901XSED 8-port XGSPON Board for MA5800 series OLT

  • Unified 8*PON Module
  • Original Package
  • Board and Modules Tested
  • Support 9216 bytes (jumbo frame enabled)
Available:In Stock
$0.00

The H901XSED board is an 8-port XGS-PON Interface Board. It works together with the ONU to provide XGS-PON access service

8 XGS-PON ports (XFP)

Maximum split ratio 1: 256

Port rate:
upstream: 9.953 Gbit/s & 2.488G bit/s
downstream: 9.953 Gbit/s

Rate mode: Asymmetric and Symmetric rate

Maximum Receiver Sensitivity: -28 dBm

MAC address table size: 131072

Forwarding capability: 80 Gbit/s

Specification
Service ports
GPON Port 8 Symmetric 10G GPON Port
Function
Forwarding capability 80 Gbit/s
Rate mode

Asymmetric

Symmetric
T-CONTs per PON port 2048
Service flows per PON board 16376
Maximum Frame Size

2052 bytes

9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072

Maximum distance difference between two ONUs under the same PON port

 40 km
FEC Bidirection
Queue scheduling hierarchy 4-level HQoS
1588v2 Not supported
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength Tx: 1577 nm  Rx: 1270 nm
Encapsulation Type 10G-GPON
Port Rate

Tx: 9.953 Gbit/s

Rx: 9.953 Gbit/s & 2.488 Gbit/s
Minimun Output Optical Power 2 dBm
Maximum Output Optical Power 6 dBm
Maximum Receiver Sensitivity -28 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -6 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 108 W; Maximum: 151 W
Operating temperature -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2)



The H901XSED board is an 8-port XGS-PON Interface Board. It works together with the ONU to provide XGS-PON access service

8 XGS-PON ports (XFP)

Maximum split ratio 1: 256

Port rate:
upstream: 9.953 Gbit/s & 2.488G bit/s
downstream: 9.953 Gbit/s

Rate mode: Asymmetric and Symmetric rate

Maximum Receiver Sensitivity: -28 dBm

MAC address table size: 131072

Forwarding capability: 80 Gbit/s

Specification
Service ports
GPON Port 8 Symmetric 10G GPON Port
Function
Forwarding capability 80 Gbit/s
Rate mode

Asymmetric

Symmetric
T-CONTs per PON port 2048
Service flows per PON board 16376
Maximum Frame Size

2052 bytes

9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072

Maximum distance difference between two ONUs under the same PON port

 40 km
FEC Bidirection
Queue scheduling hierarchy 4-level HQoS
1588v2 Not supported
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength Tx: 1577 nm  Rx: 1270 nm
Encapsulation Type 10G-GPON
Port Rate

Tx: 9.953 Gbit/s

Rx: 9.953 Gbit/s & 2.488 Gbit/s
Minimun Output Optical Power 2 dBm
Maximum Output Optical Power 6 dBm
Maximum Receiver Sensitivity -28 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -6 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 108 W; Maximum: 151 W
Operating temperature -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2)
