Huawei H902MPLA Main Control Board for MA5800-X17/MA5800-X15/MA5800-X7 OLT

  • Latest 3rd-Party ONTs Compatible Firmware Loaded
  • Control Board Synchronized
Available:In Stock
$0.00

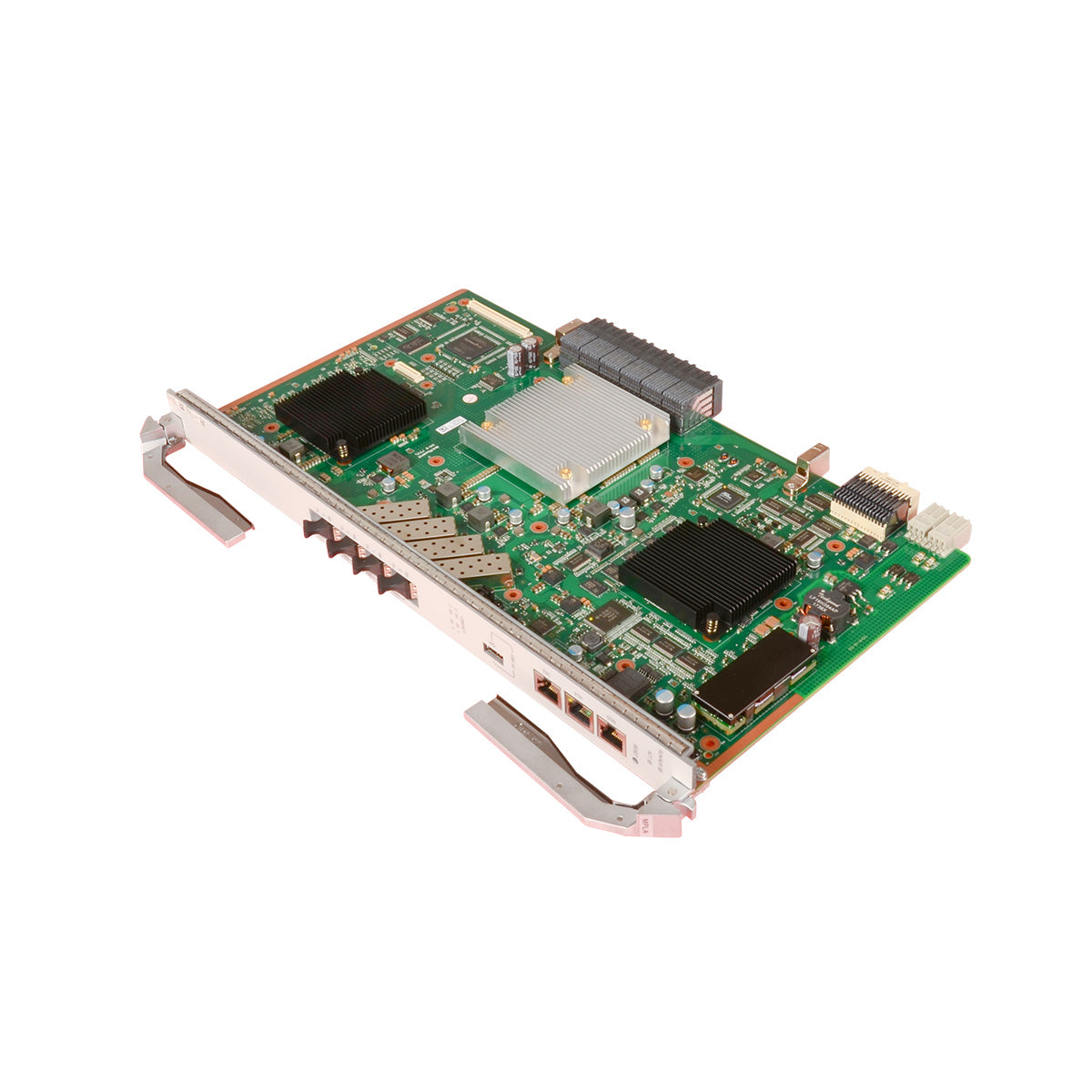

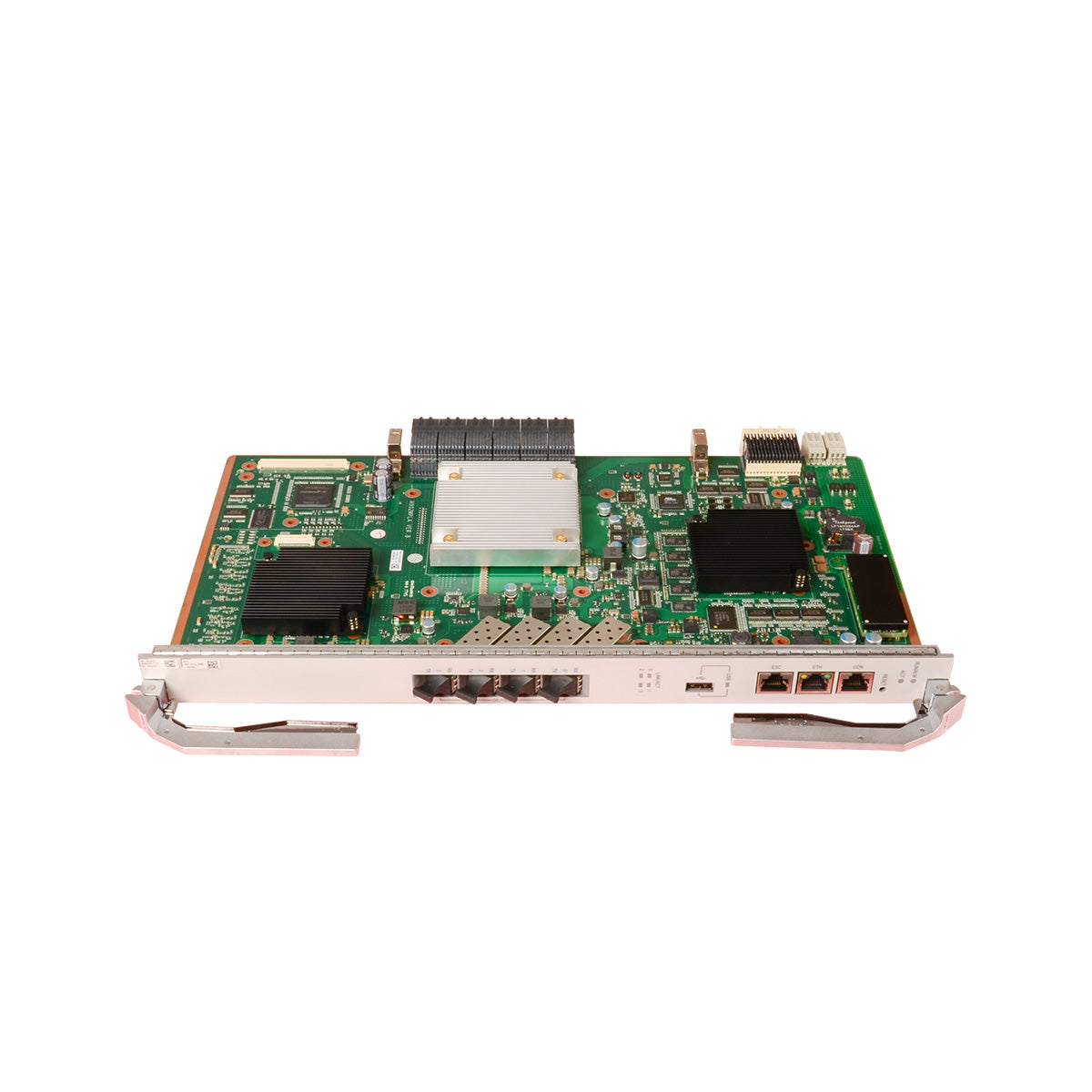

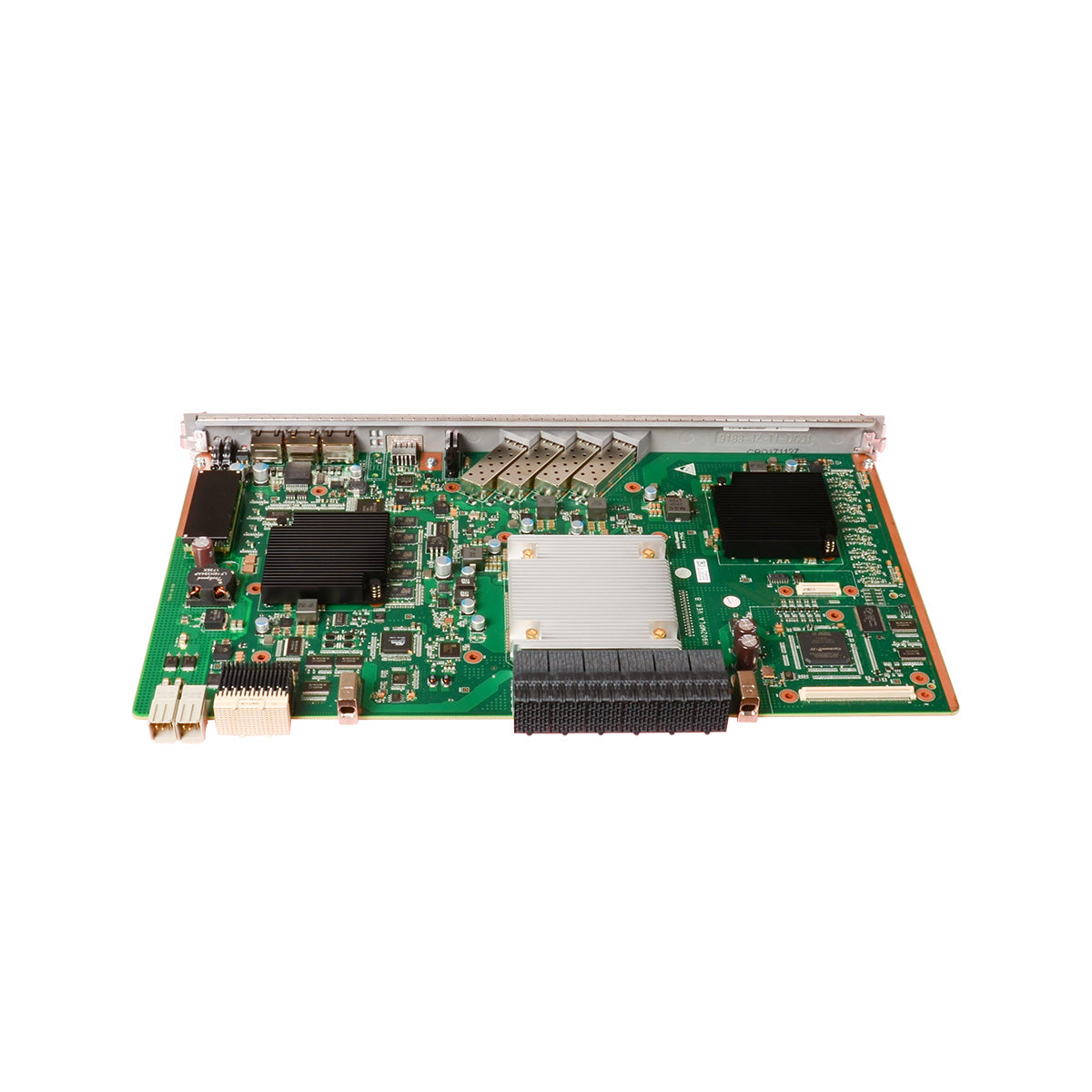

The H902MPLA board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.

Interface: TX RX0 to TX RX3 (4 x SFP+/SFP 10GE/GE ports)

Used for upstream transmission or cascading

Supports active/standby switchover at the control plane

Supports load sharing mode at the forwarding plane, doubling processing performance

Supports ISSU, saving the upgrade interruption time

Supports synchronization Ethernet

Supports 1588v2 and 1588ACR with proper daughter boards



Function
Bandwidth per slot 100Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 17408
Multicast user 17408
IPv4 routing table 65536
IPv6 routing table 16384
Service port 139264
ARP table 131072
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled,
a maximum of 9216 bytes can be supported.
Environment
Operating temperature -40°C to +65°C

Power consumption (W)

Static: 53
Maximum: 87
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 1.24

The H902MPLA board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.

Interface: TX RX0 to TX RX3 (4 x SFP+/SFP 10GE/GE ports)

Used for upstream transmission or cascading

Supports active/standby switchover at the control plane

Supports load sharing mode at the forwarding plane, doubling processing performance

Supports ISSU, saving the upgrade interruption time

Supports synchronization Ethernet

Supports 1588v2 and 1588ACR with proper daughter boards



Function
Bandwidth per slot 100Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 17408
Multicast user 17408
IPv4 routing table 65536
IPv6 routing table 16384
Service port 139264
ARP table 131072
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled,
a maximum of 9216 bytes can be supported.
Environment
Operating temperature -40°C to +65°C

Power consumption (W)

Static: 53
Maximum: 87
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 1.24
