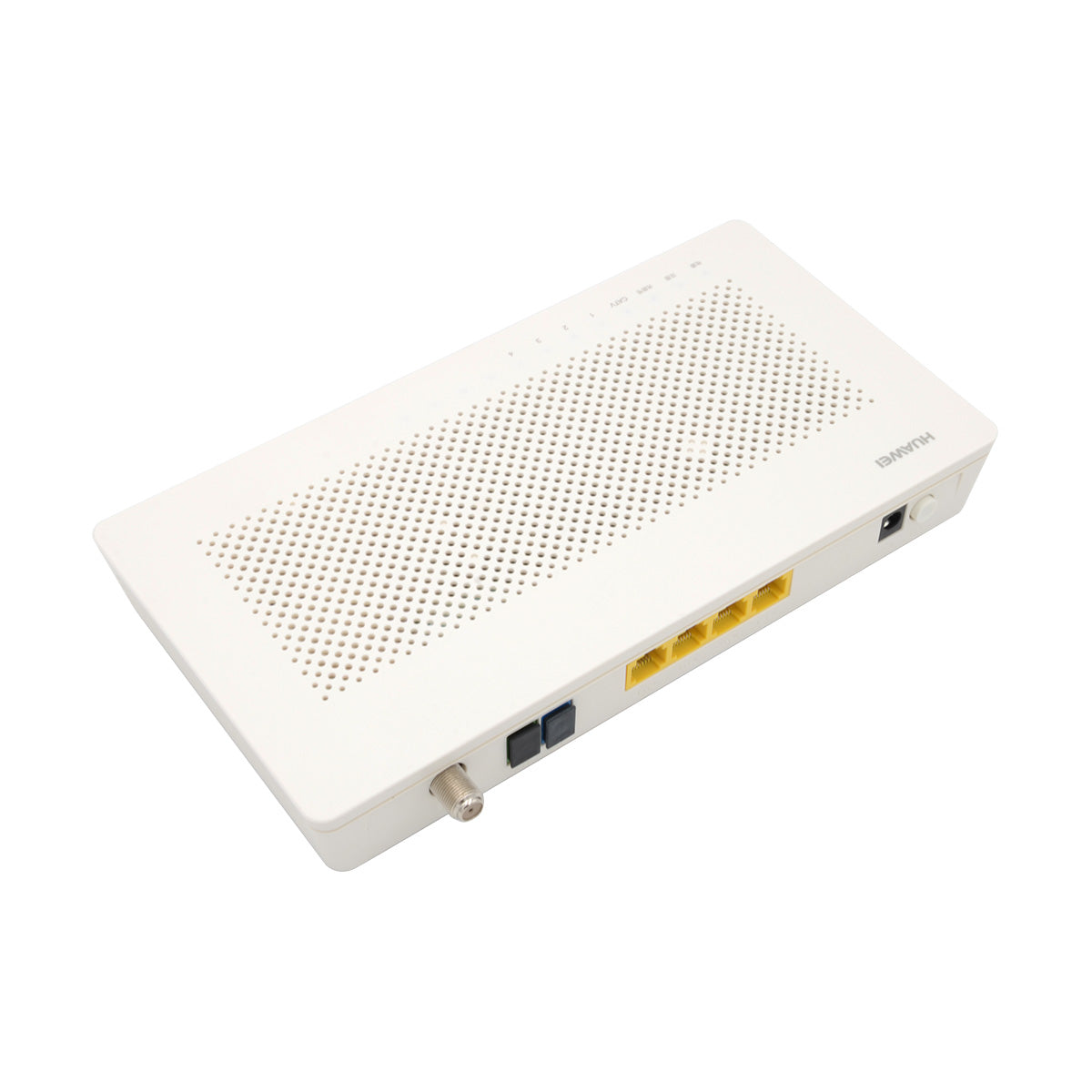

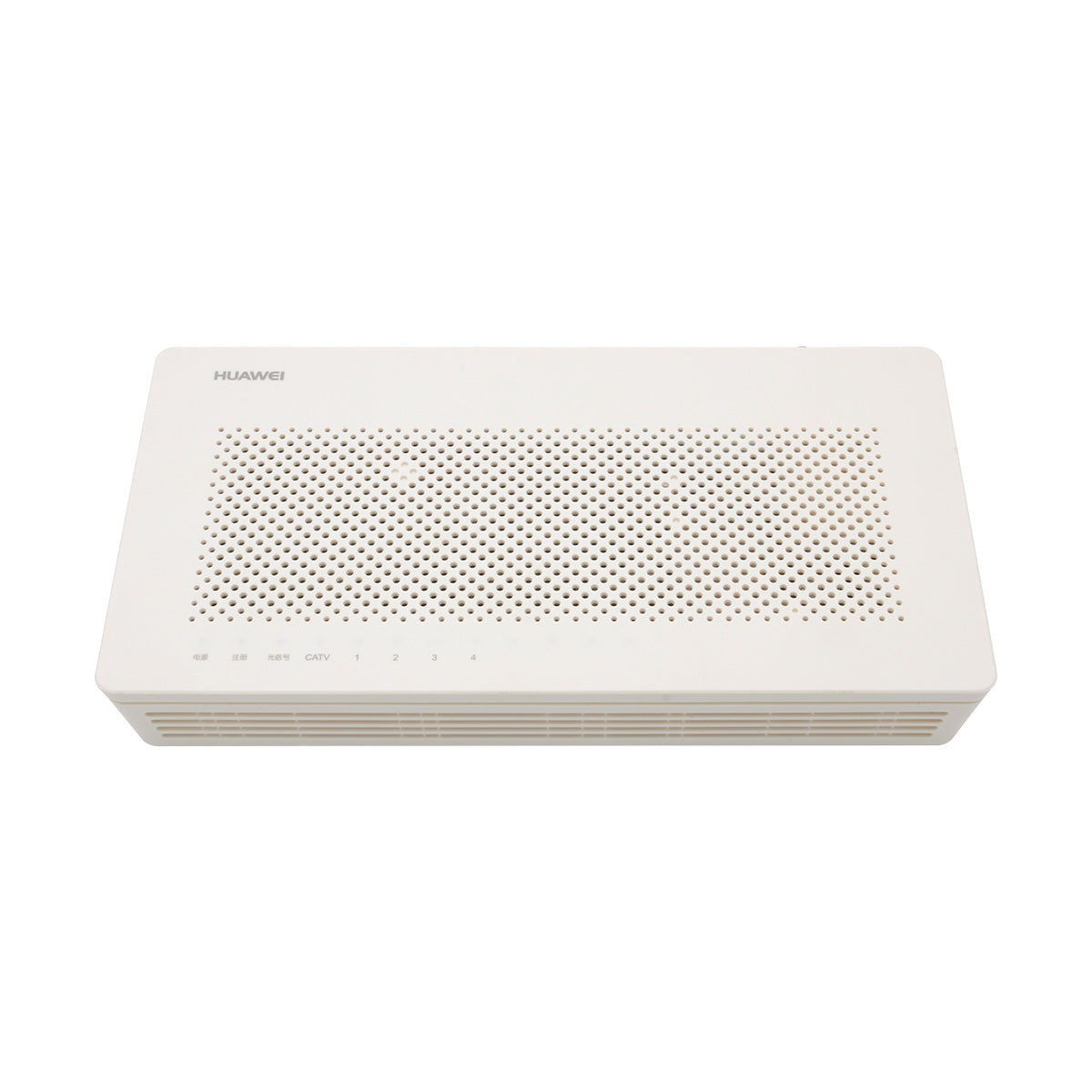

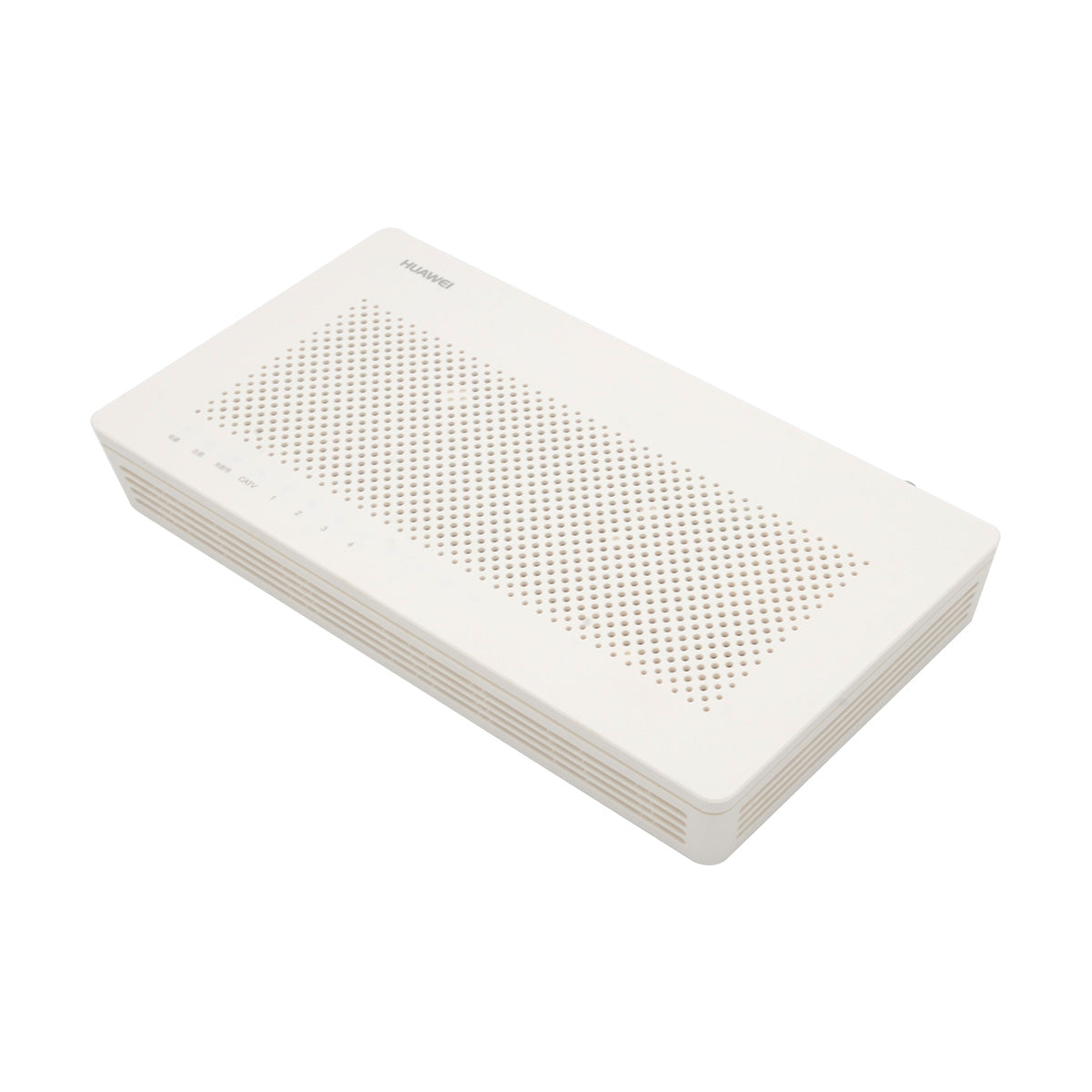

Huawei HG8042 ONT
- Failure rate<0.2%
- OEM Supported
- Firmware Customized
- Supports TR069/OMCI
Huawei HG8042, an intelligent routing-type CATV ONT
Provides 1GE, 3FE, and 1CATV
Optical connector SC/APC
IGMP v2/v3 snooping, IGMP v2 proxy, IGMP v3 proxy, MLD v1/v2 snooping
Specification | |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% (noncondensing) | |
Static power consumption | 4 W |
Power specifications | Power adapter input: 170V to 240V AC, 50/60 Hz |
System power supply: 11–14 V DC, 0.5 A | |
Support IPv4 or IPv6 | IPv4 and IPv6 |
Network-side Port | GPON (SC/UPC) |
User-side Ports | 1 x GE +3 x FE+1 x CATV |
Dimensions (length x width x height) |
230 mm x 120 mm x 32 mm |
Weight | About 245g |
Huawei HG8042, an intelligent routing-type CATV ONT
Provides 1GE, 3FE, and 1CATV
Optical connector SC/APC
IGMP v2/v3 snooping, IGMP v2 proxy, IGMP v3 proxy, MLD v1/v2 snooping
Specification | |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% (noncondensing) | |
Static power consumption | 4 W |
Power specifications | Power adapter input: 170V to 240V AC, 50/60 Hz |
System power supply: 11–14 V DC, 0.5 A | |
Support IPv4 or IPv6 | IPv4 and IPv6 |
Network-side Port | GPON (SC/UPC) |
User-side Ports | 1 x GE +3 x FE+1 x CATV |
Dimensions (length x width x height) |
230 mm x 120 mm x 32 mm |
Weight | About 245g |
