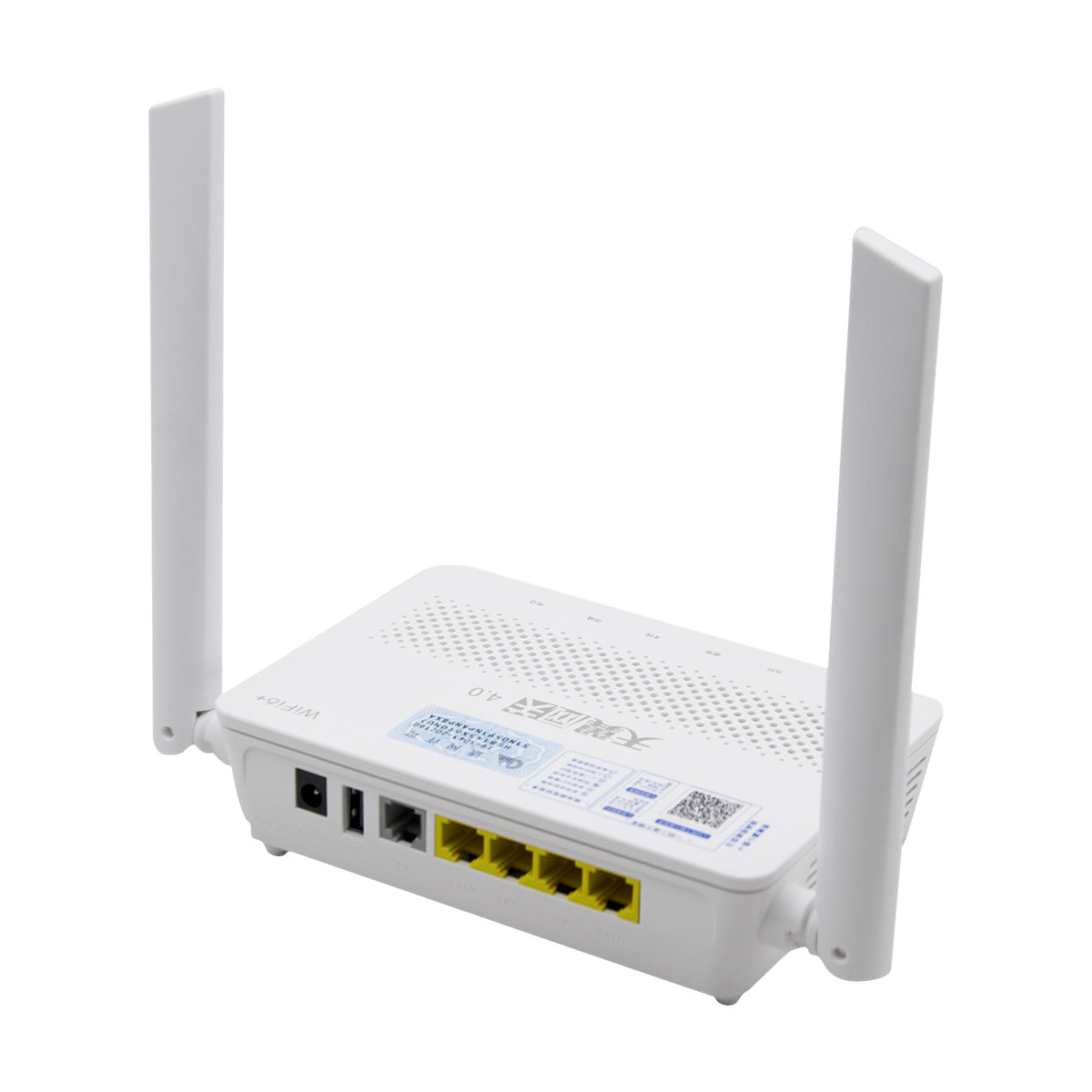

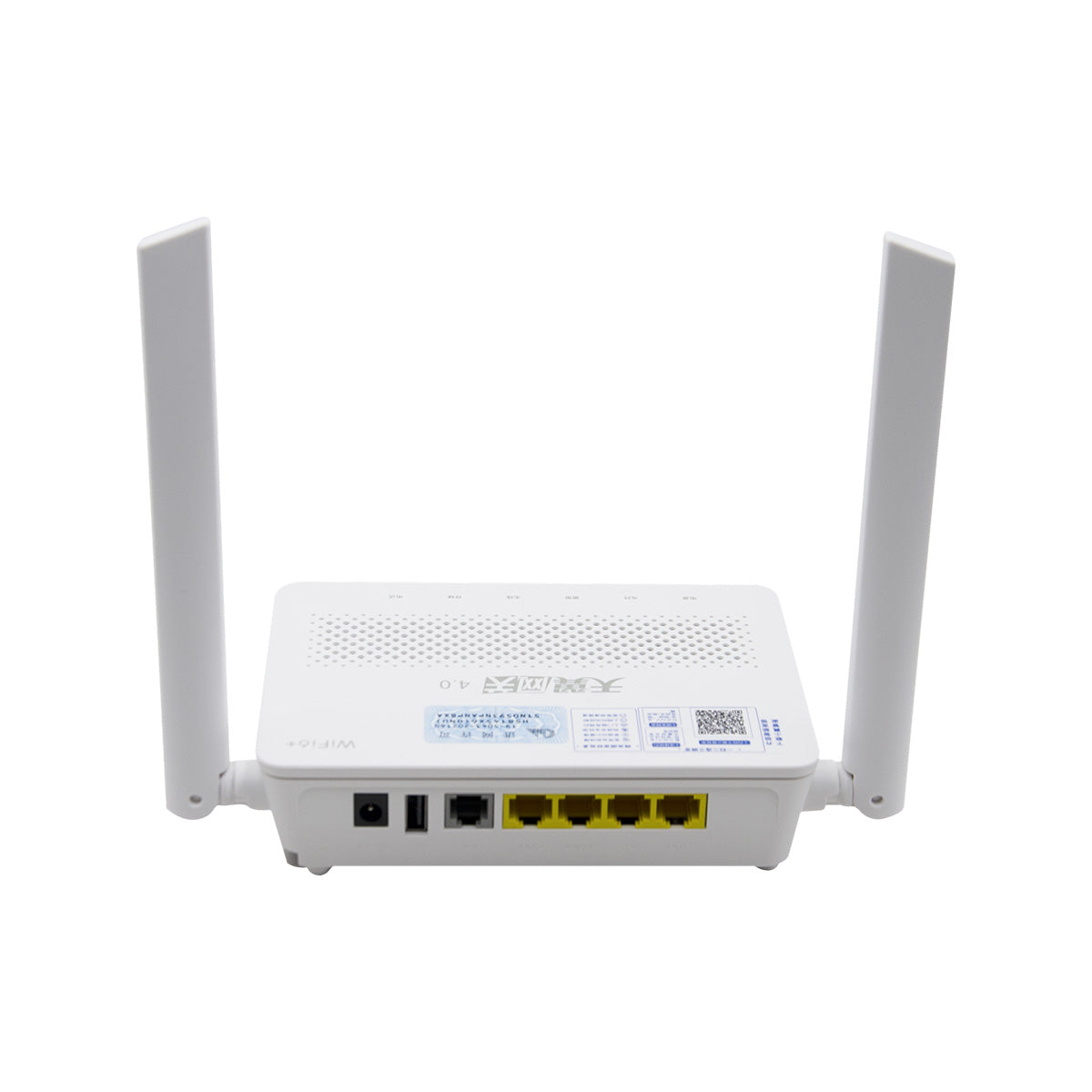

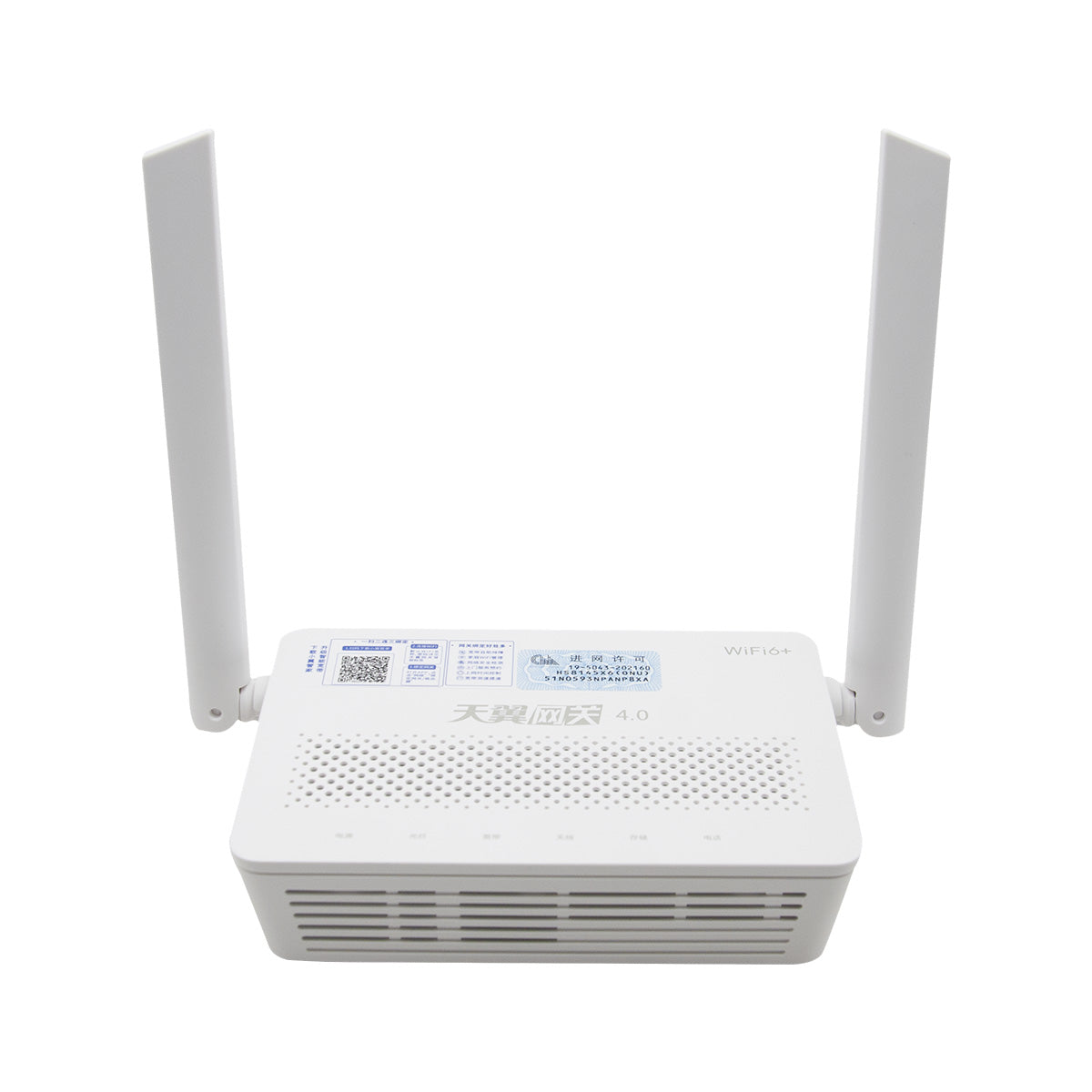

Huawei HS8145X6 ONT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei HS8145X6 ONT

  • Failure rate<0.2%
  • OEM Supported
  • Firmware Customized
  • Supports OMCI/TR069
Available:In Stock
$0.00

Huawei HS8145X6 is an intelligent Wi-Fi 6 routing-type Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as future-oriented service support capabilities and visualized network management, HS8145X6 helps enterprises construct powerful all-optical access solutions.

Huawei HS8145X6, an intelligent Wi-Fi 6 routing-type ONT

Provides 4GE, 2USB and 1POTS, 2.4G&5G WiFi

IGMP v2/v3 snooping, IGMP v2/v3 proxy, MLD v1/v2 snooping

Ethernet port rate limitation, 802.1p priority, SP/WRR/SP+WRR Broadcast, packet rate limitation

PPPoE/Static IP/DHCP, NAT/NAPT, Port forwarding, ALG, UPnP, DDNS/DNS server/DNS client

IPv6/IPv4 dual stack, and DS-Lite, Static/Default routes, Multiple services on one WAN port



Specification
UNI Huawei HS8145X6 ONT
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Static power consumption 5.3 W
Max. power consumption 18 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1.5 A
WLAN

2.4GHZ: 802.11n

5GHZ: 802.11ax

Network-side Port GPON/EPON
User-side Ports 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 2 x USB
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Dimensions
(length x width x height)
195 mm x 125 mm x 35 mm
Weight About 370 g

 WiFi 6 VS. WiFi 5 and predecessors

wifi speeds comparison

HS8145X6 Similar WiFi 6 ONTs

ONT Model UNI
HN8546X6 XG-PON ONT, 4GE+2USB+1POT, 2.4G/5G WIFI 6
EN8145X6 XG-PON ONT, 4GE+1USB+1POT, 2.4G/5G WIFI 6
HS8145X6 EG8145X6  GPON ONT,4GE+2USB+1POTS+2.4G/5G WIFI 6
K662c  GPON ONT/Router, 3GE+2.4G/5G WIFI 6




Huawei HS8145X6 is an intelligent Wi-Fi 6 routing-type Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as future-oriented service support capabilities and visualized network management, HS8145X6 helps enterprises construct powerful all-optical access solutions.

Huawei HS8145X6, an intelligent Wi-Fi 6 routing-type ONT

Provides 4GE, 2USB and 1POTS, 2.4G&5G WiFi

IGMP v2/v3 snooping, IGMP v2/v3 proxy, MLD v1/v2 snooping

Ethernet port rate limitation, 802.1p priority, SP/WRR/SP+WRR Broadcast, packet rate limitation

PPPoE/Static IP/DHCP, NAT/NAPT, Port forwarding, ALG, UPnP, DDNS/DNS server/DNS client

IPv6/IPv4 dual stack, and DS-Lite, Static/Default routes, Multiple services on one WAN port



Specification
UNI Huawei HS8145X6 ONT
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Static power consumption 5.3 W
Max. power consumption 18 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1.5 A
WLAN

2.4GHZ: 802.11n

5GHZ: 802.11ax

Network-side Port GPON/EPON
User-side Ports 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 2 x USB
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Dimensions
(length x width x height)
195 mm x 125 mm x 35 mm
Weight About 370 g

 WiFi 6 VS. WiFi 5 and predecessors

wifi speeds comparison

HS8145X6 Similar WiFi 6 ONTs

ONT Model UNI
HN8546X6 XG-PON ONT, 4GE+2USB+1POT, 2.4G/5G WIFI 6
EN8145X6 XG-PON ONT, 4GE+1USB+1POT, 2.4G/5G WIFI 6
HS8145X6 EG8145X6  GPON ONT,4GE+2USB+1POTS+2.4G/5G WIFI 6
K662c  GPON ONT/Router, 3GE+2.4G/5G WIFI 6
