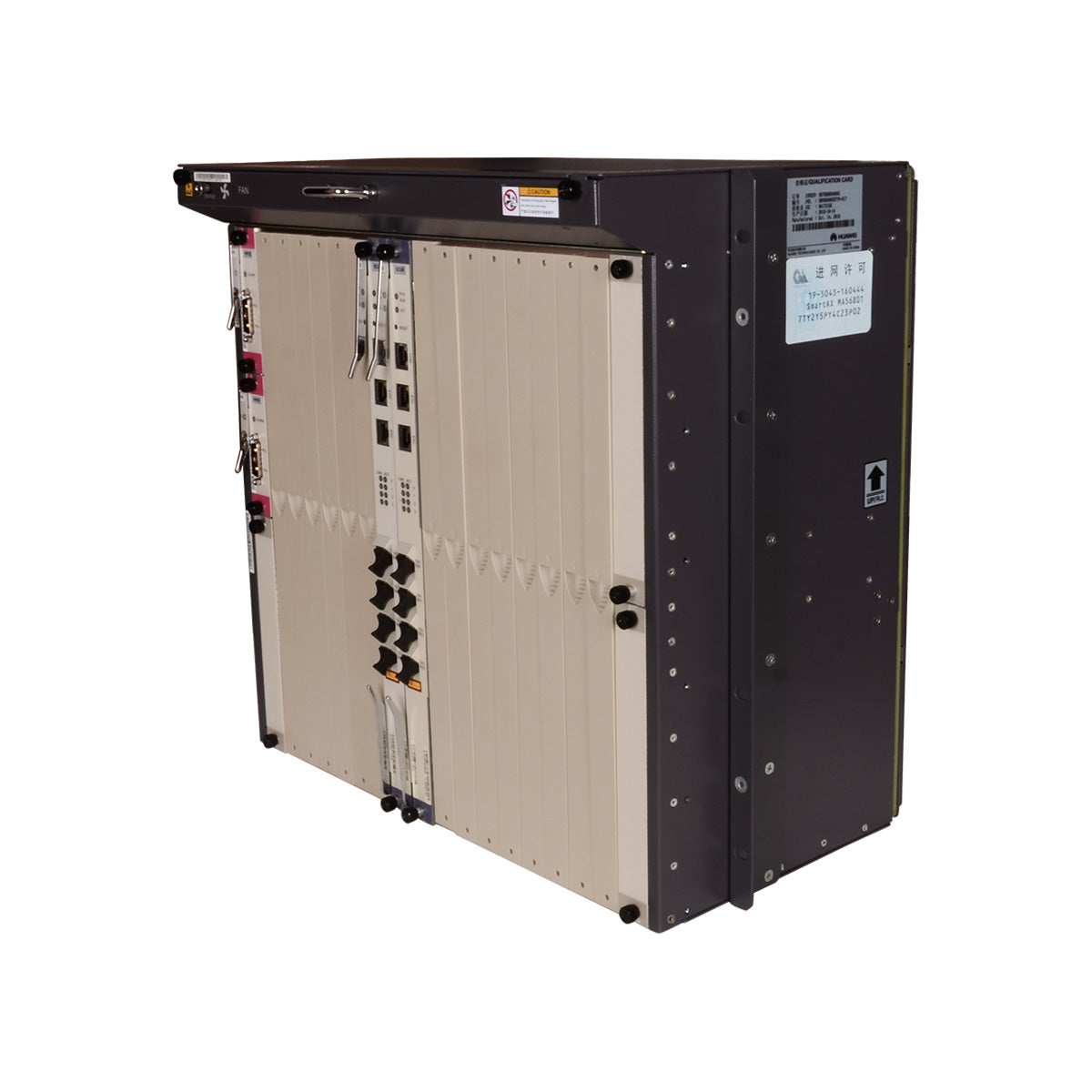

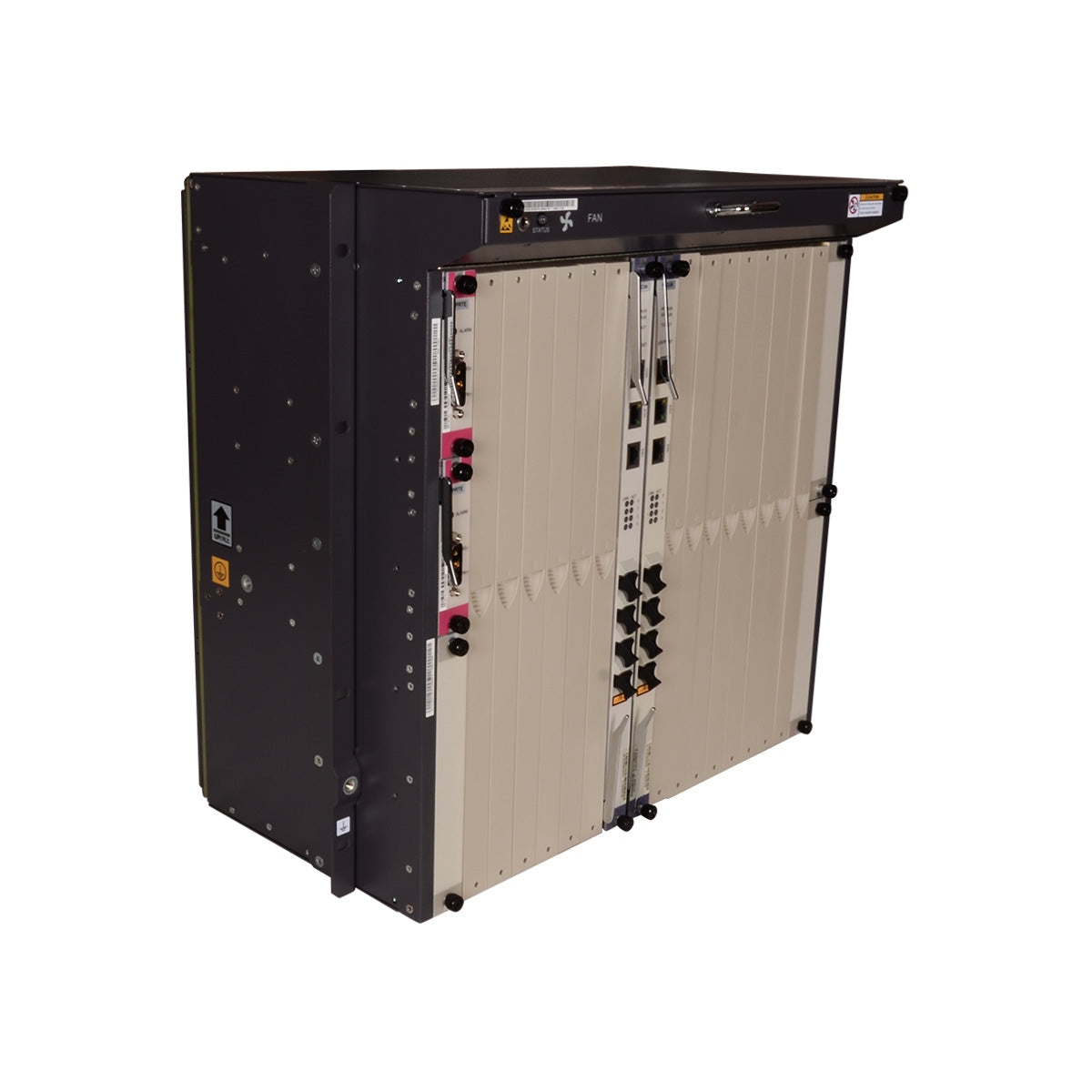

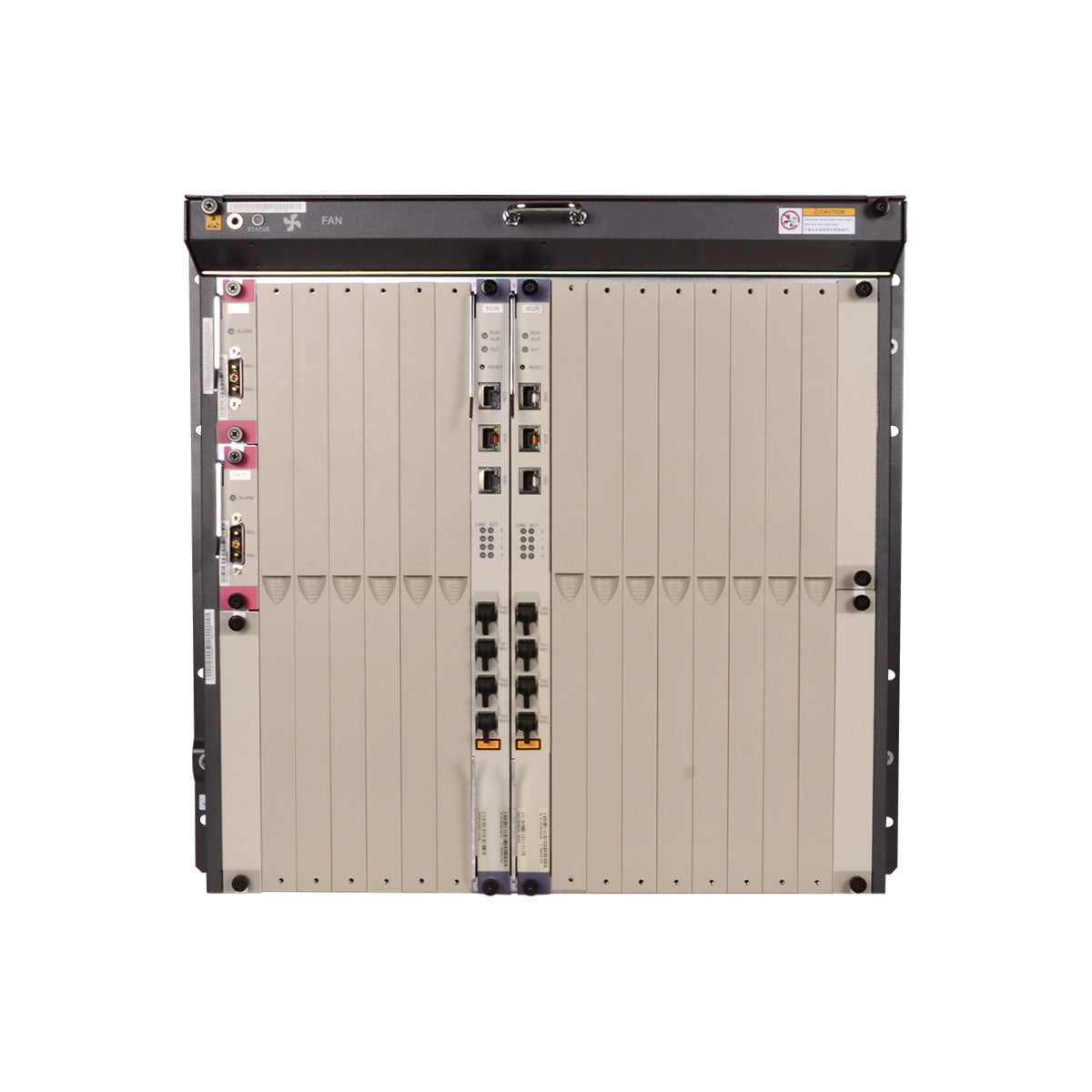

Huawei MA5680T OLT 19inch Chassis

  • Brand New Condition
  • Latest 3rd-Party ONTs Compatible Firmware Loaded
  • Latest Manufacture Year
  • 2 Pairs 6mm² Power Cable Include
  • Blank Panel Included
Available:In Stock
$0.00

Huawei MA5680T belonging to Huawei SmartAX MA5600T series OLT products includes the MA5608T, MA5683T, and MA5680T OLT in Huawei FTTH solution.

Huawei MA5680T OLT H80Z1MABH subrack

Serves as the CO OLT and supports multiple network construction modes and diversified access media to provide access for home users, mobile users, and enterprise users

User access: provides access for home users, mobile users, and enterprise users

Network construction mode: supports FTTH, FTTB, FTTC, FTTW, FTTO, and FTTD networks

Access media: supports copper, fiber, cable, and Wi-Fi access

Supports aggregation management and plug-and-play for remote site, High-efficiency deployment, Fast integration and Easy OAM

Provides access for various traditional services, enabling a PSTN network seamlessly evolve to an IP network

Provides 3 protection mechanisms on the network side, access side, and device to ensure that services are not interrupted

Can be smoothly upgraded from GPON to 10G GPON by adding the WDM1r component.

Product Specifications
Switching Capacity 480Gbit/s (active/standby mode)
Service Slots 1 slot occupied, 13 remain(19 inch); 1 slot occupied, 15 remain(21 inch)
Power Supply DC:  -48V DC
Dimensions (W x D x H) including
mounting brackets		 ETSI Chassis: 530.00 mm x 275.80 mm x 447.20 mm
IEC Chassis: 482.60 mm×275.80 mm×441.70 mm
Dimensions (W x Dx H) excluding
mounting brackets		 ETSI Chassis: 490.00 mm x 275.80 mm x 447.20 mm
IEC Chassis: 442.00 mm×275.80 mm×441.70 mm
Maximum weight (including
mounting brackets)		 ETSI Chassis: 33 KG
IEC Chassis: 30.54 KG
Working environment temperature For an indoor cabinet
Configured with 1 subrack: -25°C to +65°C
Configured with 2 subracks: -25°C to +55°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m
Board supported
Control Board
SCUN It provides 4-port GE optical uplink port
SCUH It provides 4-port 10GE/GE optical uplink port
Upstream interface board
GICF 2-port GE optical uplink board
X2CS 2-port 10GE optical uplink board
Service board
GPBD 8-port GPON OLT interface board
GPFD 16-port GPON OLT interface board
XGBD 8-port 10G GPON OLT Interface Board
XGBC 4-port 10G GPON OLT Interface Board
Power board
PRTE Provides -48V DC input

 SmartAX MA5600T Series OLT

Item MA5600T(ETSI)/MA5680T MA5600T(IEC)/MA5680T MA5603T/MA5683T MA5608T
Supported cabinet Indoor cabinet: N63E-22, N66E-18 Indoor cabinet: N66E-22 Indoor cabinet: N66E-18 Indoor cabinet: N63E-22
Outdoor cabinet: F01D500, F01D2000 Outdoor cabinet: none Outdoor cabinet: F01D500, F01S300 Outdoor cabinet: F01S200
Board configuration 2 slots for control boards 2 slots for control boards 2 slots for control boards 2 slots for control boards
16 slots for service boards 14 slots for service boards 6 slots for service boards 2 slots for service boards
1 slot for the universal interface board 1 slot for the universal interface board 1 slot for the universal interface board 2 slots for the power interface board.
2 slots for upstream interface boards 2 slots for upstream interface boards 2 slots for upstream interface boards
2 slots for power interface boards. 2 slots for power interface boards. 2 slots for power interface boards.
Switching capacity of the backplane bus 3.2 Tbit/s 1.5 Tbit/s (H801MABO) 720 Gbit/s
2 Tbit/s (H802MABO)
Supported control board and its switching capacity SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
System Layer 2 packet forwarding rate SCUN: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode MCUD/MCUD1: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode
SCUH: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode
SCUB: 72 Mpps
SCUF: 190 Mpps
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 渭s.
BER in full load BER of a port when the port transmits data in full load < 10 e-7
System reliability specifications System: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of theMA5600T/MA5603T/MA5608Tis only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack 1024 896 384 128
Maximum number of VDSL2 ports in a subrack 1024 896 384 128
Maximum number of EFM SHDSL ports in a subrack 512 448 192 64
Maximum number of TDM SHDSL ports in a subrack 256 224 96 32
Maximum number of POTS ports in a subrack 1024 896 384 128
Maximum number of ISDN BRA ports in a subrack 512 448 192 64
Maximum number of ISDN PRA ports in a subrack 64 56 64 64
Maximum number of GPON ports in a subrack 256 224 96 32
Maximum number of 10G GPON ports in a subrack 128 112 48 16
Maximum number of P2P FE ports in a subrack 768 672 288 96
Maximum number of P2P GE ports in a subrack 768 672 288 96
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack 8 8 8 -
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack 4 4 4 -
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack 2 (in the active/standby mode) 2 (in the active/standby mode) 2 -
Maximum number of upstream ports (ports on the control board) in a subrack SCUN/SCUK: 8 x GE (in the load-sharing mode) MCUD: 8 x GE (in the load-sharing mode)
SCUH: 8 x 10GE (in the load-sharing mode) MCUD1: 4 x GE + 2 x 10GE (in the load-sharing mode)
SCUB/SCUF: 4 x GE (in the active/standby mode)
Maximum number of extended subracks connected to a master subrack 32 32 32 -
Maximum number of ONUs supported by each subrack

For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.

For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.

 Comparison of MA5600T Series OLT GPON service board



Specification H801GPBC H802GPBD H805GPBD H802GPFD/H805GPFD H806GPBH/H807GPBH H801GPMD
Port quantity 4 8 8 16 8 8
MAX Split ratio (Class B+) 1:64 1:64 1:64 1:64 1:64 1:64
MAX Split ratio (Class C+/Class C++) Not support 1: 128 1: 128 1: 128 1: 128 1: 128
D-CMTS No No No No No Yes
ONU-based shaping No No Yes Yes Yes Yes
Optical performance monitor Yes (querying Rx optical power is not supported) Yes Yes Yes Yes Yes
RSSI detection and controlled optical signal transmission of the optical module No Yes Yes Yes Yes Yes
ONU-based rate limitation × √ √ √ √ √
CAR group × √ √ √ √ √
Temperature query and high temperature alarm Yes Yes Yes Yes Yes Yes
Automatic power shutdown in case of a high temperature No Yes Yes Yes Yes Yes
Maximum differential fibre distance (km) 20 20 20 40 40 40
Maximum Number of Service Flows Supported by the Board 8184 8184 8184 16368 8184 6144
Maximum Number of MAC address Supported by the Board 32768 32768 32768 32768 32768 32768
Available DBA bandwidth (based on single port) (kbit/s) 1238400 1238784 1238784 1238784 1238784 1238784
Number of T-CONT supported by each GPON port 256 1024 1024 1024 1024 1024
Board supporting downstream FEC Yes Yes Yes Yes Yes Yes
Board supporting upstream FEC No Yes Yes Yes Yes Yes
Rogue ONT detection No Yes Yes Yes Yes Yes
Number of ONUs supported by a GPON port 64 128 128 128 128 128
Number of GEM ports supported by each board 8192 8192 8192 16384 8192 8192
Number of GEM ports supported by each GPON port 3872 3872 3872 3872 3872 3872
Number of service ports supported by each GEM port 8 8 8184 8184 8184 7168
HQoS (four levels) × × × H802GPFD: × H806GPBH: × ×
H805GPFD: √ H807GPBH: √
9216-byte Jumbo frames × × × H802GPFD: × H806GPBH: × ×
H805GPFD: √ H807GPBH: √
Power budget supported by a GPON port Class B+ (28.5 dB, mostly used) Class B+ (28.5 dB, mostly used),
Class C+ (32 dB long reach transmission)
Class C++: 35 dB
Minimum bandwidth supported by a T-CONT 512kbps 1 Mbit/s (in the minimum delay mode)
128 kbit/s (in the maximum bandwidth usage mode)

Huawei MA5680T belonging to Huawei SmartAX MA5600T series OLT products includes the MA5608T, MA5683T, and MA5680T OLT in Huawei FTTH solution.

Huawei MA5680T OLT H80Z1MABH subrack

Serves as the CO OLT and supports multiple network construction modes and diversified access media to provide access for home users, mobile users, and enterprise users

User access: provides access for home users, mobile users, and enterprise users

Network construction mode: supports FTTH, FTTB, FTTC, FTTW, FTTO, and FTTD networks

Access media: supports copper, fiber, cable, and Wi-Fi access

Supports aggregation management and plug-and-play for remote site, High-efficiency deployment, Fast integration and Easy OAM

Provides access for various traditional services, enabling a PSTN network seamlessly evolve to an IP network

Provides 3 protection mechanisms on the network side, access side, and device to ensure that services are not interrupted

Can be smoothly upgraded from GPON to 10G GPON by adding the WDM1r component.

Product Specifications
Switching Capacity 480Gbit/s (active/standby mode)
Service Slots 1 slot occupied, 13 remain(19 inch); 1 slot occupied, 15 remain(21 inch)
Power Supply DC:  -48V DC
Dimensions (W x D x H) including
mounting brackets		 ETSI Chassis: 530.00 mm x 275.80 mm x 447.20 mm
IEC Chassis: 482.60 mm×275.80 mm×441.70 mm
Dimensions (W x Dx H) excluding
mounting brackets		 ETSI Chassis: 490.00 mm x 275.80 mm x 447.20 mm
IEC Chassis: 442.00 mm×275.80 mm×441.70 mm
Maximum weight (including
mounting brackets)		 ETSI Chassis: 33 KG
IEC Chassis: 30.54 KG
Working environment temperature For an indoor cabinet
Configured with 1 subrack: -25°C to +65°C
Configured with 2 subracks: -25°C to +55°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m
Board supported
Control Board
SCUN It provides 4-port GE optical uplink port
SCUH It provides 4-port 10GE/GE optical uplink port
Upstream interface board
GICF 2-port GE optical uplink board
X2CS 2-port 10GE optical uplink board
Service board
GPBD 8-port GPON OLT interface board
GPFD 16-port GPON OLT interface board
XGBD 8-port 10G GPON OLT Interface Board
XGBC 4-port 10G GPON OLT Interface Board
Power board
PRTE Provides -48V DC input

 SmartAX MA5600T Series OLT

Item MA5600T(ETSI)/MA5680T MA5600T(IEC)/MA5680T MA5603T/MA5683T MA5608T
Supported cabinet Indoor cabinet: N63E-22, N66E-18 Indoor cabinet: N66E-22 Indoor cabinet: N66E-18 Indoor cabinet: N63E-22
Outdoor cabinet: F01D500, F01D2000 Outdoor cabinet: none Outdoor cabinet: F01D500, F01S300 Outdoor cabinet: F01S200
Board configuration 2 slots for control boards 2 slots for control boards 2 slots for control boards 2 slots for control boards
16 slots for service boards 14 slots for service boards 6 slots for service boards 2 slots for service boards
1 slot for the universal interface board 1 slot for the universal interface board 1 slot for the universal interface board 2 slots for the power interface board.
2 slots for upstream interface boards 2 slots for upstream interface boards 2 slots for upstream interface boards
2 slots for power interface boards. 2 slots for power interface boards. 2 slots for power interface boards.
Switching capacity of the backplane bus 3.2 Tbit/s 1.5 Tbit/s (H801MABO) 720 Gbit/s
2 Tbit/s (H802MABO)
Supported control board and its switching capacity SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
System Layer 2 packet forwarding rate SCUN: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode MCUD/MCUD1: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode
SCUH: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode
SCUB: 72 Mpps
SCUF: 190 Mpps
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 渭s.
BER in full load BER of a port when the port transmits data in full load < 10 e-7
System reliability specifications System: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of theMA5600T/MA5603T/MA5608Tis only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack 1024 896 384 128
Maximum number of VDSL2 ports in a subrack 1024 896 384 128
Maximum number of EFM SHDSL ports in a subrack 512 448 192 64
Maximum number of TDM SHDSL ports in a subrack 256 224 96 32
Maximum number of POTS ports in a subrack 1024 896 384 128
Maximum number of ISDN BRA ports in a subrack 512 448 192 64
Maximum number of ISDN PRA ports in a subrack 64 56 64 64
Maximum number of GPON ports in a subrack 256 224 96 32
Maximum number of 10G GPON ports in a subrack 128 112 48 16
Maximum number of P2P FE ports in a subrack 768 672 288 96
Maximum number of P2P GE ports in a subrack 768 672 288 96
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack 8 8 8 -
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack 4 4 4 -
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack 2 (in the active/standby mode) 2 (in the active/standby mode) 2 -
Maximum number of upstream ports (ports on the control board) in a subrack SCUN/SCUK: 8 x GE (in the load-sharing mode) MCUD: 8 x GE (in the load-sharing mode)
SCUH: 8 x 10GE (in the load-sharing mode) MCUD1: 4 x GE + 2 x 10GE (in the load-sharing mode)
SCUB/SCUF: 4 x GE (in the active/standby mode)
Maximum number of extended subracks connected to a master subrack 32 32 32 -
Maximum number of ONUs supported by each subrack

For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.

For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.

 Comparison of MA5600T Series OLT GPON service board



Specification H801GPBC H802GPBD H805GPBD H802GPFD/H805GPFD H806GPBH/H807GPBH H801GPMD
Port quantity 4 8 8 16 8 8
MAX Split ratio (Class B+) 1:64 1:64 1:64 1:64 1:64 1:64
MAX Split ratio (Class C+/Class C++) Not support 1: 128 1: 128 1: 128 1: 128 1: 128
D-CMTS No No No No No Yes
ONU-based shaping No No Yes Yes Yes Yes
Optical performance monitor Yes (querying Rx optical power is not supported) Yes Yes Yes Yes Yes
RSSI detection and controlled optical signal transmission of the optical module No Yes Yes Yes Yes Yes
ONU-based rate limitation × √ √ √ √ √
CAR group × √ √ √ √ √
Temperature query and high temperature alarm Yes Yes Yes Yes Yes Yes
Automatic power shutdown in case of a high temperature No Yes Yes Yes Yes Yes
Maximum differential fibre distance (km) 20 20 20 40 40 40
Maximum Number of Service Flows Supported by the Board 8184 8184 8184 16368 8184 6144
Maximum Number of MAC address Supported by the Board 32768 32768 32768 32768 32768 32768
Available DBA bandwidth (based on single port) (kbit/s) 1238400 1238784 1238784 1238784 1238784 1238784
Number of T-CONT supported by each GPON port 256 1024 1024 1024 1024 1024
Board supporting downstream FEC Yes Yes Yes Yes Yes Yes
Board supporting upstream FEC No Yes Yes Yes Yes Yes
Rogue ONT detection No Yes Yes Yes Yes Yes
Number of ONUs supported by a GPON port 64 128 128 128 128 128
Number of GEM ports supported by each board 8192 8192 8192 16384 8192 8192
Number of GEM ports supported by each GPON port 3872 3872 3872 3872 3872 3872
Number of service ports supported by each GEM port 8 8 8184 8184 8184 7168
HQoS (four levels) × × × H802GPFD: × H806GPBH: × ×
H805GPFD: √ H807GPBH: √
9216-byte Jumbo frames × × × H802GPFD: × H806GPBH: × ×
H805GPFD: √ H807GPBH: √
Power budget supported by a GPON port Class B+ (28.5 dB, mostly used) Class B+ (28.5 dB, mostly used),
Class C+ (32 dB long reach transmission)
Class C++: 35 dB
Minimum bandwidth supported by a T-CONT 512kbps 1 Mbit/s (in the minimum delay mode)
128 kbit/s (in the maximum bandwidth usage mode)
