Huawei MA5694 ONU

  • Mainstream Firmware Loaded
  • Sealed Package
  • Original Package
Available:In Stock
$0.00

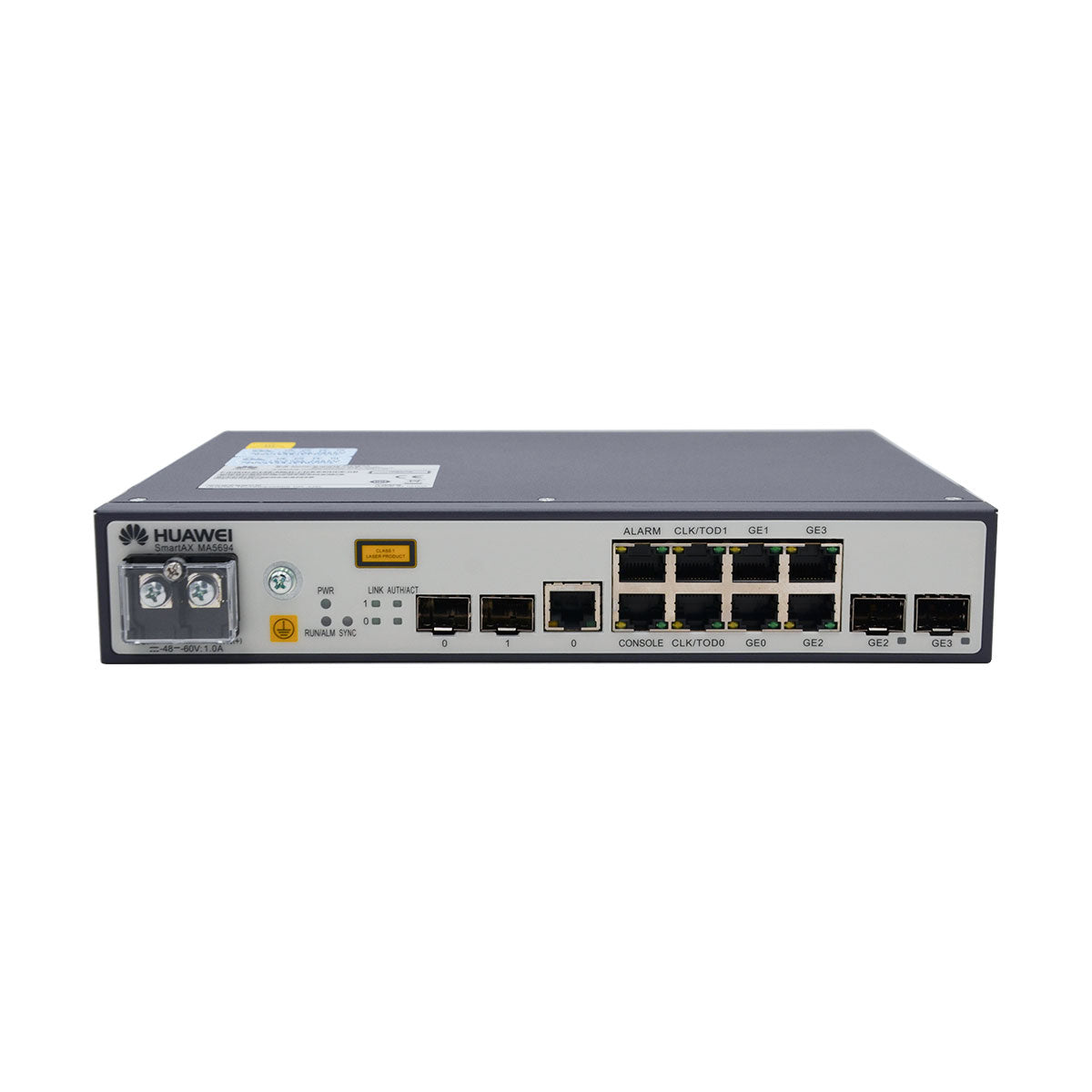

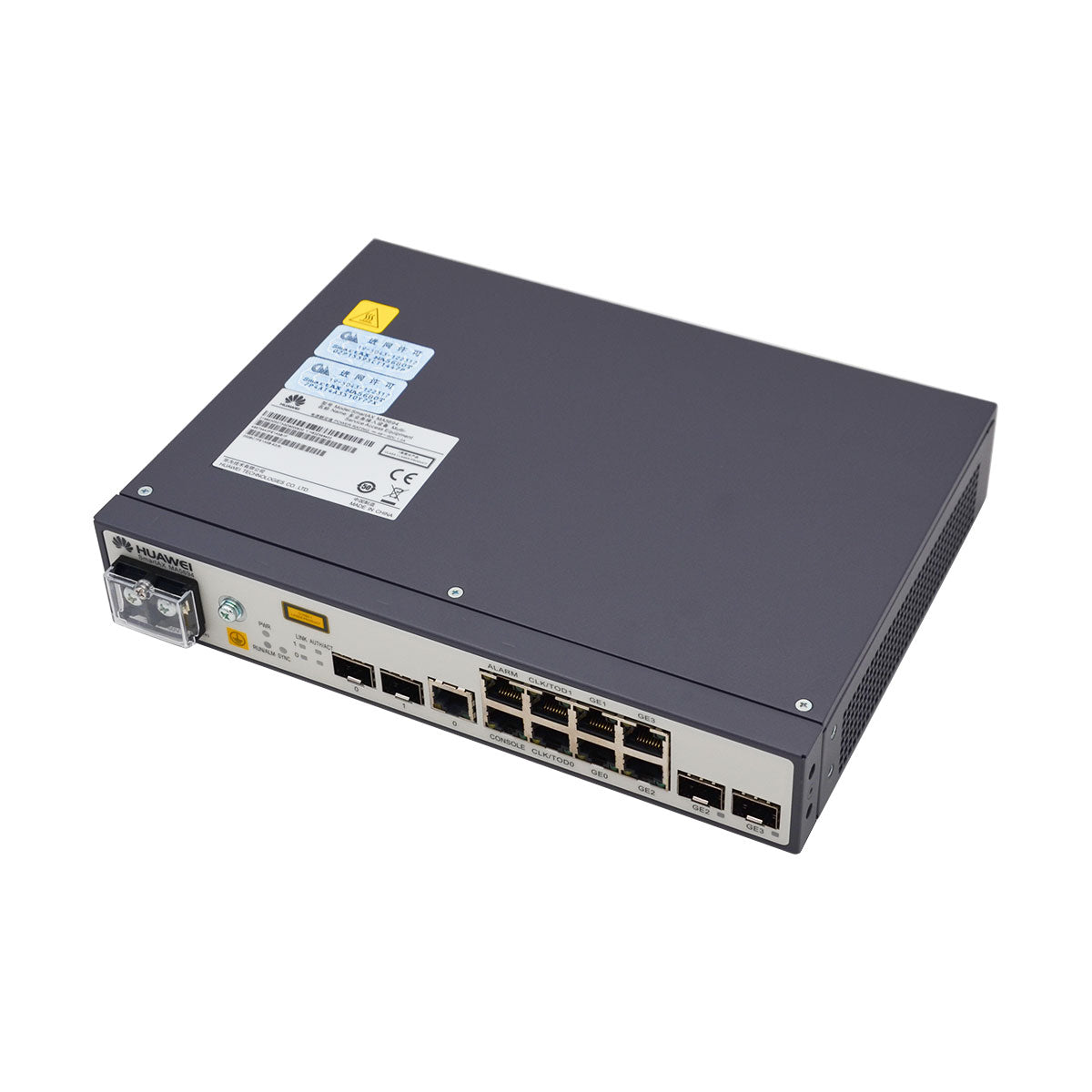

Huawei SmartAX MA5694 Multi-service Access Module is an indoor box-shaped ONU for small-cell backhaul and small- and medium-sized enterprise (SME) private line service access. MA5694 provides 2x XPON/GE uplink ports, 4/8x xDSL uplink ports, 4xGE ports, 2xFE ports.



Specifications
Port Name Silkscreen Description

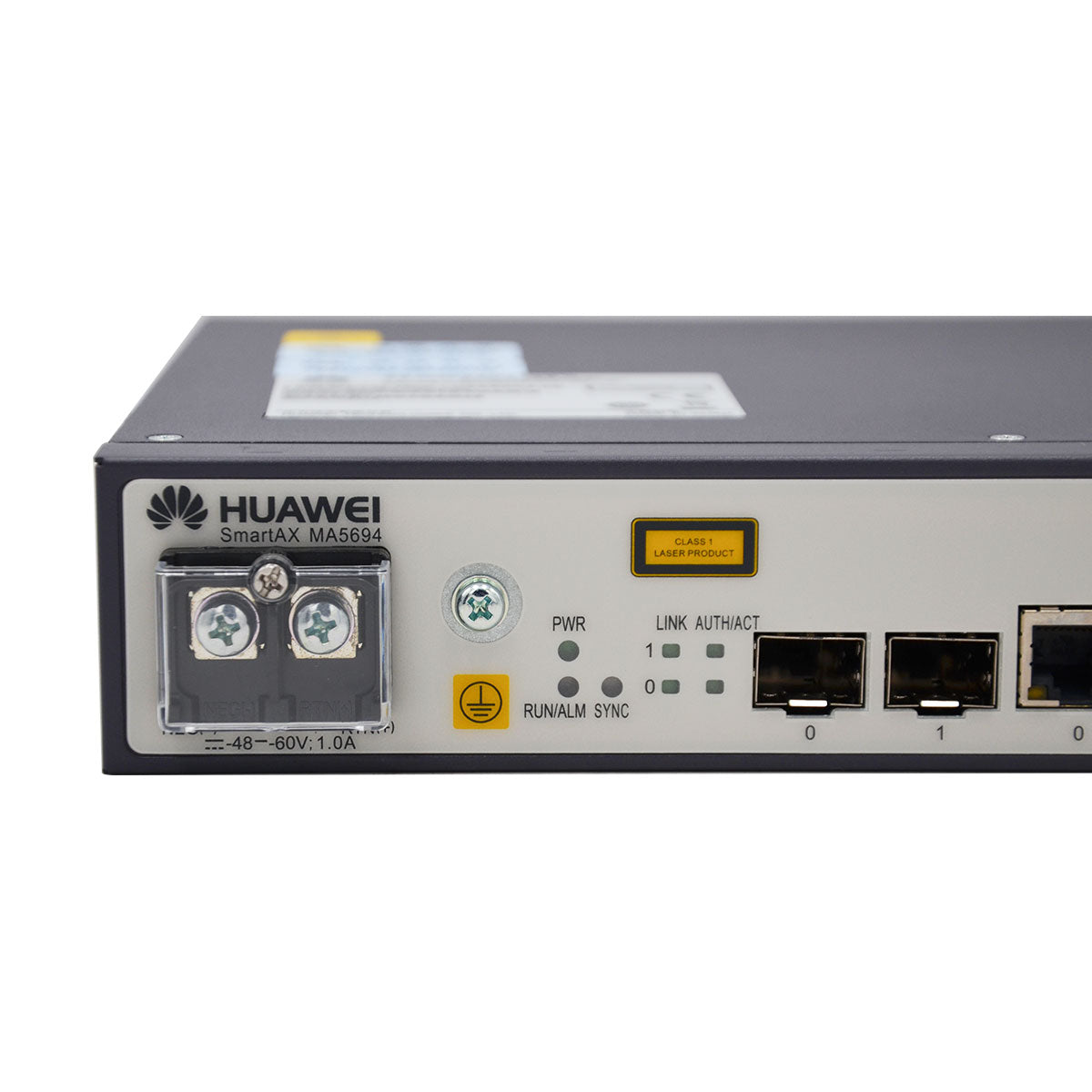

AC/DC power port None Introduces 220 V AC or 48 V DC power.
Uplink optical port 0 and 1 Supports GPON, EPON, or GE upstream transmission.
Uplink xDSL port xDSL 0-3 or xDSL 0-7 Supports 4-pair or 8-pair VDSL2 bonding in upstream transmission and supports vectoring. The MA5694 provides four or eight xDSL ports.
Environment monitoring parameter port ALARM

Supports the connection to four digital sensors for monitoring door status, surge protection, main distribution frame (MDF), and smoke status.

supports user-defined monitoring parameters.

Commissioning serial port CONSOLE Can only be used for commissioning.
Clock or time output port CLK/TOD0 and CLK/TOD1 Inputs and outputs clock or time signals.

CLK/TOD0 supports 2.048 MHz clock input/output and 1 PPS+TOD time input/output.

CLK/TOD1 supports 2.048 MHz clock input/output and 1 PPS+TOD time output.
GE electrical port GE0, GE1, GE2, GE3

Provides the access service for users.

GE optical port GE2 and GE3 Provides the access service for users. The GE2 and GE3 optical ports can be used as alternatives to GE electrical ports GE2 and GE3.
Dimensions(Width x Depth x Height) 442 mm x 220 mm x 43.6 mm (without the mounting brackets)
482.6 mm x 220 mm x 43.6 mm (with the 19-inch mounting brackets)
Weight 2.5 kg
Power Supply Mode Operating Voltage Maximum Input Current
Power supply (220 V AC)  90 V AC to 300 V AC 0.5 A
Power supply ( 48 V DC) -38.4 V DC to -72 V DC 1.0 A

Huawei SmartAX MA5694 Multi-service Access Module is an indoor box-shaped ONU for small-cell backhaul and small- and medium-sized enterprise (SME) private line service access. MA5694 provides 2x XPON/GE uplink ports, 4/8x xDSL uplink ports, 4xGE ports, 2xFE ports.



Specifications
Port Name Silkscreen Description
AC/DC power port None Introduces 220 V AC or 48 V DC power.
Uplink optical port 0 and 1 Supports GPON, EPON, or GE upstream transmission.
Uplink xDSL port xDSL 0-3 or xDSL 0-7 Supports 4-pair or 8-pair VDSL2 bonding in upstream transmission and supports vectoring. The MA5694 provides four or eight xDSL ports.
Environment monitoring parameter port ALARM

Supports the connection to four digital sensors for monitoring door status, surge protection, main distribution frame (MDF), and smoke status.

supports user-defined monitoring parameters.

Commissioning serial port CONSOLE Can only be used for commissioning.
Clock or time output port CLK/TOD0 and CLK/TOD1 Inputs and outputs clock or time signals.

CLK/TOD0 supports 2.048 MHz clock input/output and 1 PPS+TOD time input/output.

CLK/TOD1 supports 2.048 MHz clock input/output and 1 PPS+TOD time output.
GE electrical port GE0, GE1, GE2, GE3

Provides the access service for users.

GE optical port GE2 and GE3 Provides the access service for users. The GE2 and GE3 optical ports can be used as alternatives to GE electrical ports GE2 and GE3.
Dimensions(Width x Depth x Height) 442 mm x 220 mm x 43.6 mm (without the mounting brackets)
482.6 mm x 220 mm x 43.6 mm (with the 19-inch mounting brackets)
Weight 2.5 kg
Power Supply Mode Operating Voltage Maximum Input Current
Power supply (220 V AC)  90 V AC to 300 V AC 0.5 A
Power supply ( 48 V DC) -38.4 V DC to -72 V DC 1.0 A
