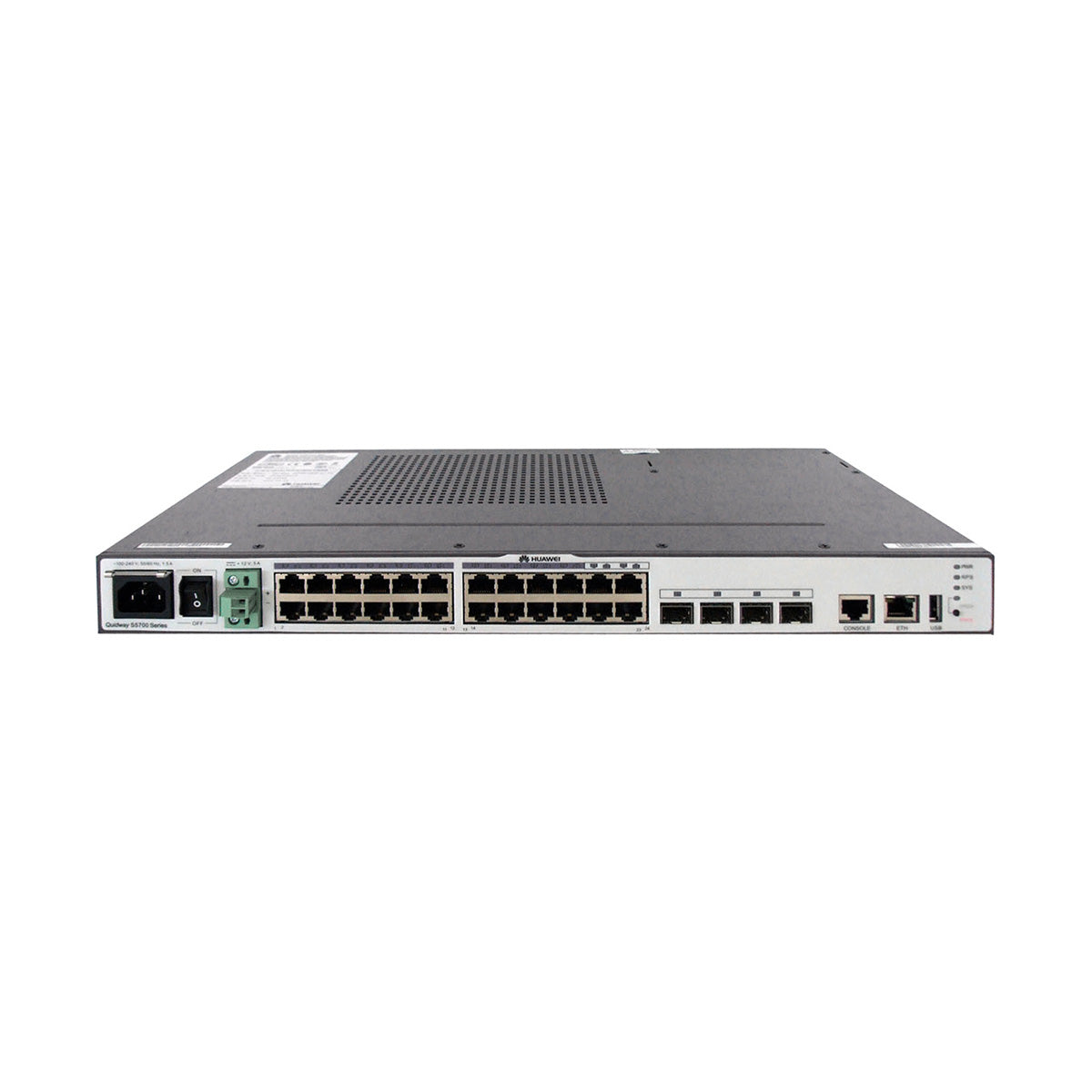

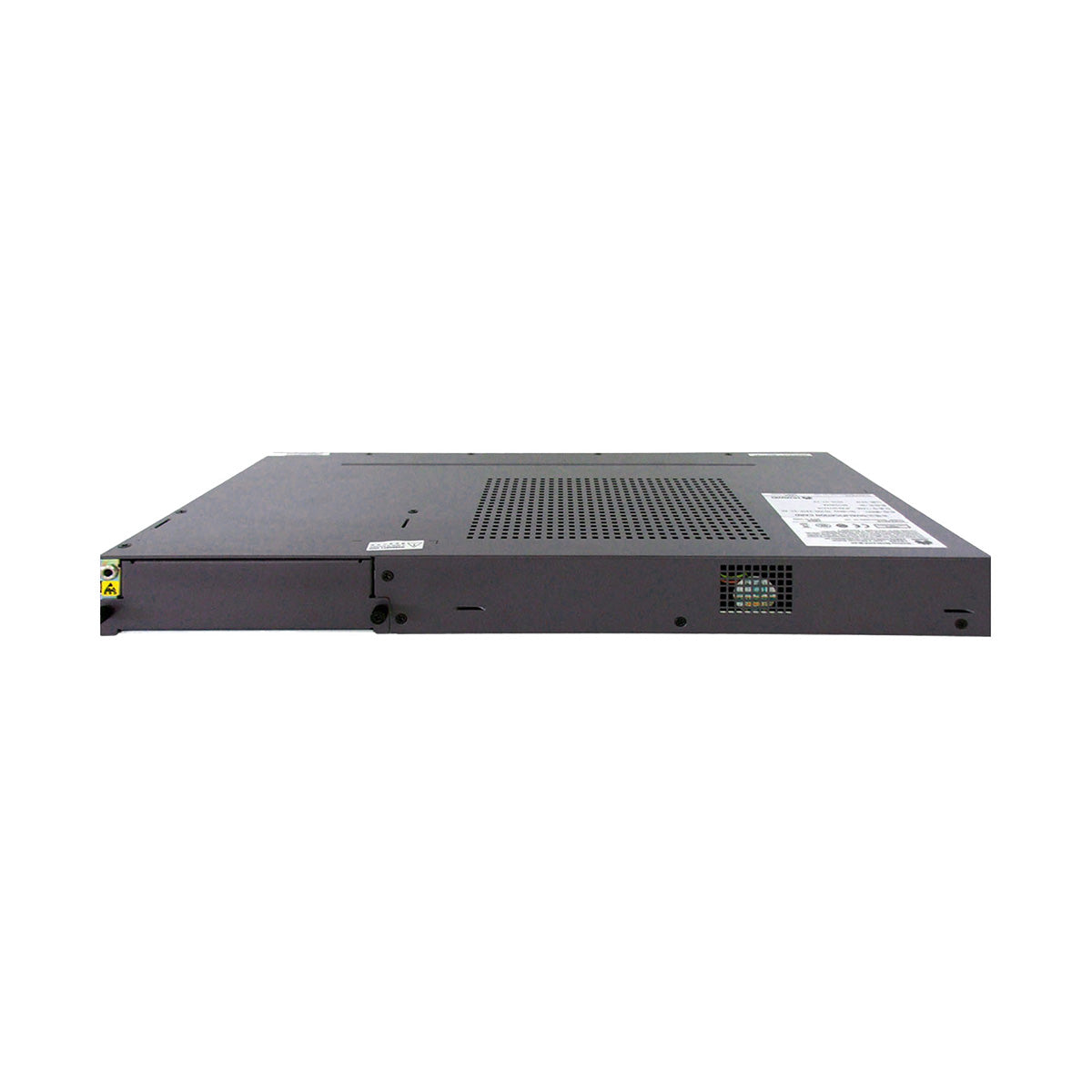

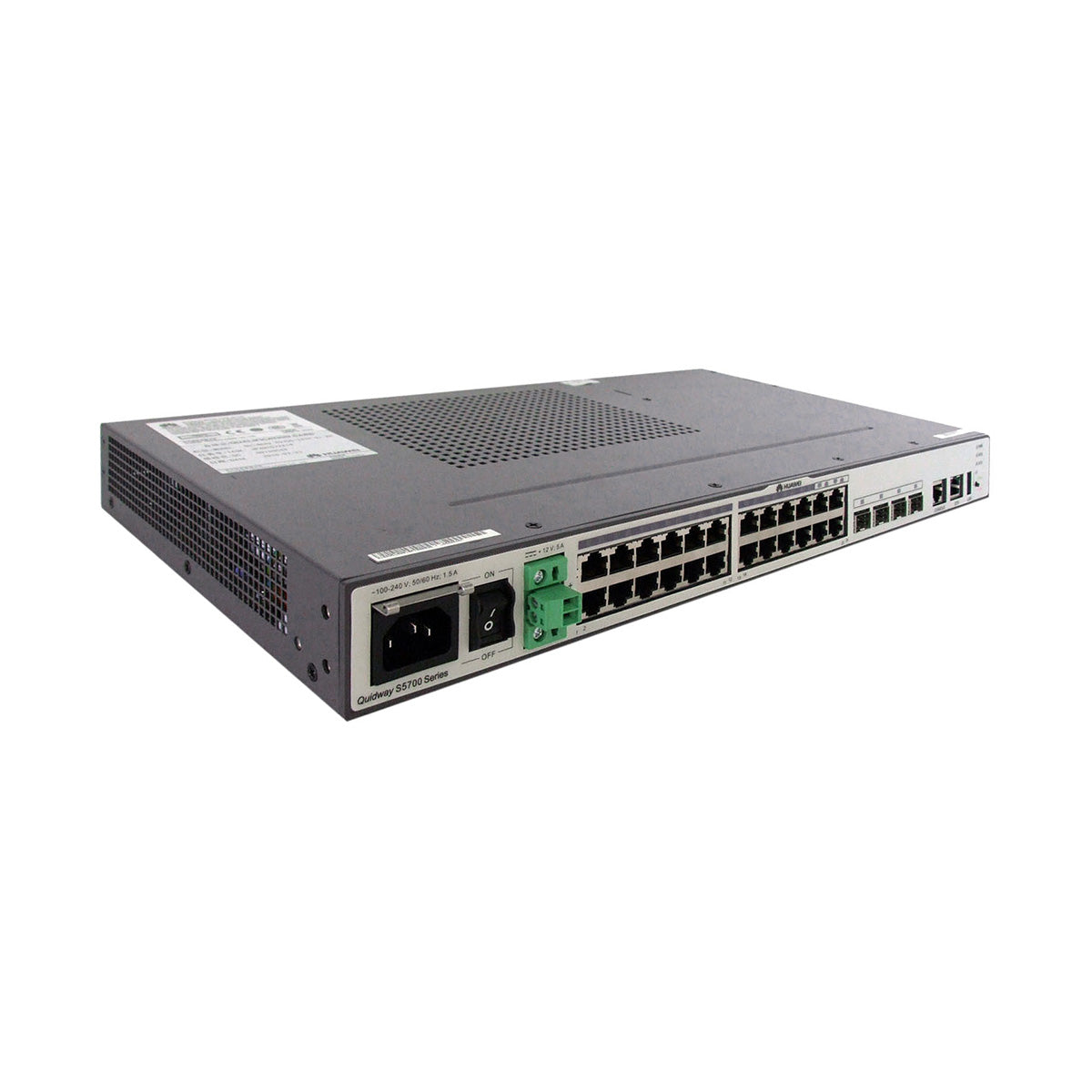

Huawei S5700-24TP-SI-AC Switch
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei S5700-24TP-SI-AC Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei S5700-24TP-SI-AC switch with 24-port 1000BASE-T, including 4-ports GE SFP combo, 1 AC power #02352360

Forwarding perfomance: 36 Mpps

Switching capacity:256 Gbps

16K MAC address entries

PoE Not Supported

Stack ports: Two stack ports available on each stack card

 Huawei S5700 series switch includes the S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5700-SI, S5720-SI, S5730-SI, S5720S-SI, S5720I-SI, S5700-EI, S5710-EI, S5720-EI, S5730S-EI, S5700-HI, S5710-HI, S5720-HI, S5730-HI, S5731-L, S5731S-L, S5731-S, S5731S-S, S5731-H, S5731S-H, S5732-H, S5735-L, S5735-L-I, S5735S-L, S5735S-L-M, S5735-L1, S5735S-L1, S5735-S, S5735-S-I, S5735S-H, S5736-S, and S5735S-S subseries.

The S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5731-L, S5731S-L, S5735-L, S5735S-L, S5735-L1, S5735S-L1, and S5735S-L-M switches are Layer 2 switches, and all the other models in this series are Layer 3 switches.

Item Description
Memory (RAM) 256 MB
Flash 32 MB
Mean time between failures (MTBF) 37 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection ±2 kV in common mode
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight Empty: ≤ 5 kg (11.02 lb)
Fully configured: ≤ 8.5 kg (18.74 lb)
Stack ports Two stack ports available on each stack card
RPS Not supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 40 W
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) Silent
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 2352360



Huawei S5700-24TP-SI-AC switch with 24-port 1000BASE-T, including 4-ports GE SFP combo, 1 AC power #02352360

Forwarding perfomance: 36 Mpps

Switching capacity:256 Gbps

16K MAC address entries

PoE Not Supported

Stack ports: Two stack ports available on each stack card

 Huawei S5700 series switch includes the S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5700-SI, S5720-SI, S5730-SI, S5720S-SI, S5720I-SI, S5700-EI, S5710-EI, S5720-EI, S5730S-EI, S5700-HI, S5710-HI, S5720-HI, S5730-HI, S5731-L, S5731S-L, S5731-S, S5731S-S, S5731-H, S5731S-H, S5732-H, S5735-L, S5735-L-I, S5735S-L, S5735S-L-M, S5735-L1, S5735S-L1, S5735-S, S5735-S-I, S5735S-H, S5736-S, and S5735S-S subseries.

The S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5731-L, S5731S-L, S5735-L, S5735S-L, S5735-L1, S5735S-L1, and S5735S-L-M switches are Layer 2 switches, and all the other models in this series are Layer 3 switches.

Item Description
Memory (RAM) 256 MB
Flash 32 MB
Mean time between failures (MTBF) 37 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection ±2 kV in common mode
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight Empty: ≤ 5 kg (11.02 lb)
Fully configured: ≤ 8.5 kg (18.74 lb)
Stack ports Two stack ports available on each stack card
RPS Not supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 40 W
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) Silent
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 2352360



GLOBAL SHIPPING
XponShop offers you various options of shipping ways:
-EXW SHENZHEN
-Overseas Express which includes shipping by Carriers, by Air Cargo, and Sea Freight.

Cargo Weight/Volume Suggested Shipping Ways Comments
≤ 45KGS By Shipping Carriers (DHL, UPS, FedEx, etc.) Door to door service, fast and convenient.
>45KGS By Air Cargo Door to airport service, more cost-efficient.
1CBM By Sea Freight Large-volume goods, door to seaport service, longer shipping time but cheaper.

XponShop makes the most commonly used trade terms available for your convenience: CNF, CPT, CIF, DDP, etc to ensure global fast and convenient delivery.
Once you confirm your order, you may contact XponShop team for calculating the freight charges and choose the optimal shipping way.
NOTE:
· Shipping may be subject to local taxes or duties; XponShop is not responsible for and has no control over these charges.
· No matter which shipping ways you chose, cargo insurance is highly recommended in case of unpredictable loss.

RETURN POLICY
We aim to deliver products for your appreciation and satisfaction. XponShop return or replacement policy applies only if the product is damaged or incorrectly delivered.
–If you receive a damaged product or it is different from the one requested, you can return or replace it within 7 days of receipt. In such a case, costs shall be borne by XponShop.
–If the product is malfunctional during use and under 12 months warranty, XponShop support team will contact you to troubleshoot the issue by professional diagnosis. The unsolvable problem will trigger the return procedure: repair, replace and reship to you or refund if repair or replacement is inapplicable.
NOTE:
· Please be aware that the product must be returned to the specified address as defined by shipping incoterms against the sales invoice/contract.
· For further information about how to return products, please contact our XponShop team at sales@xponshop.com, we will advise you on how to proceed.
