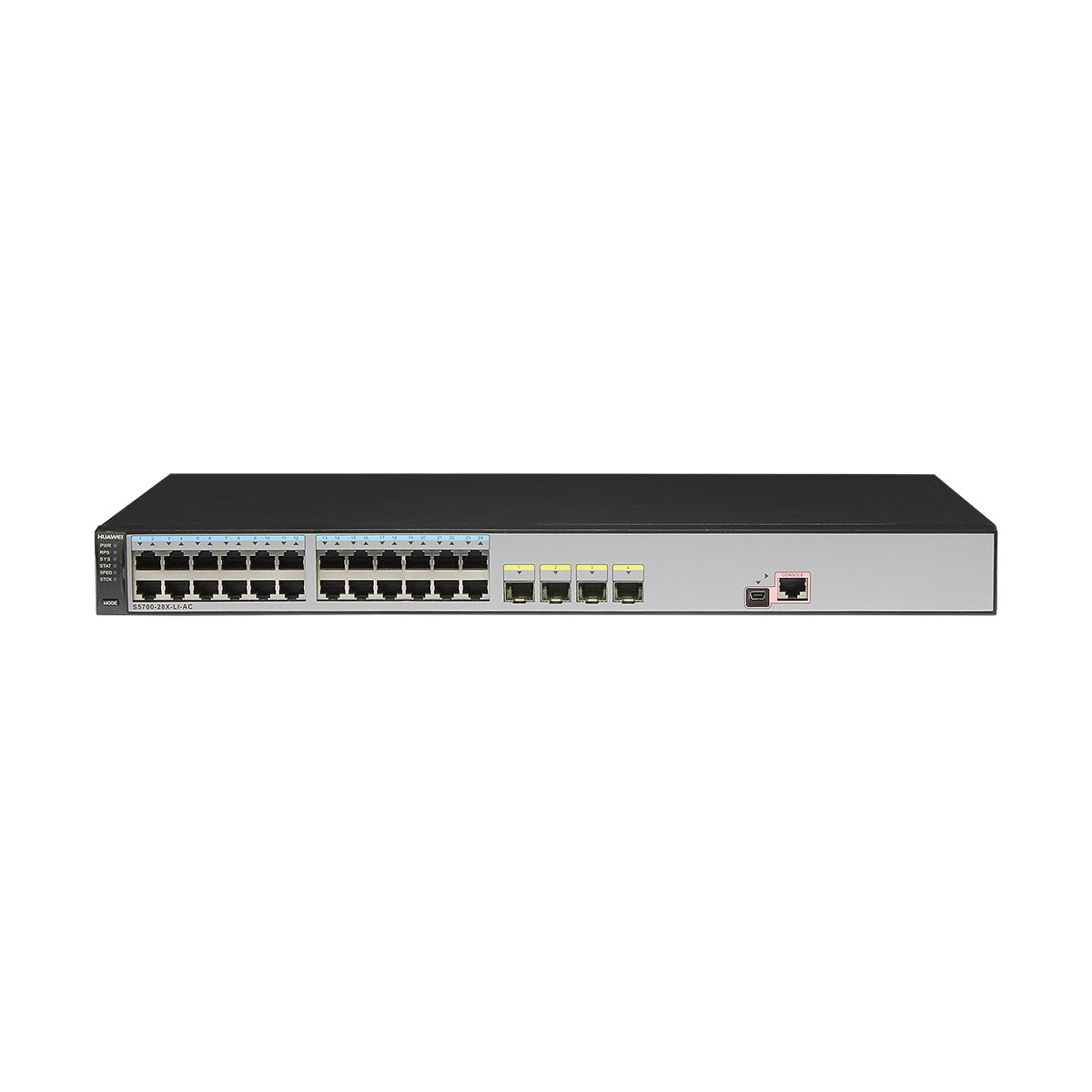

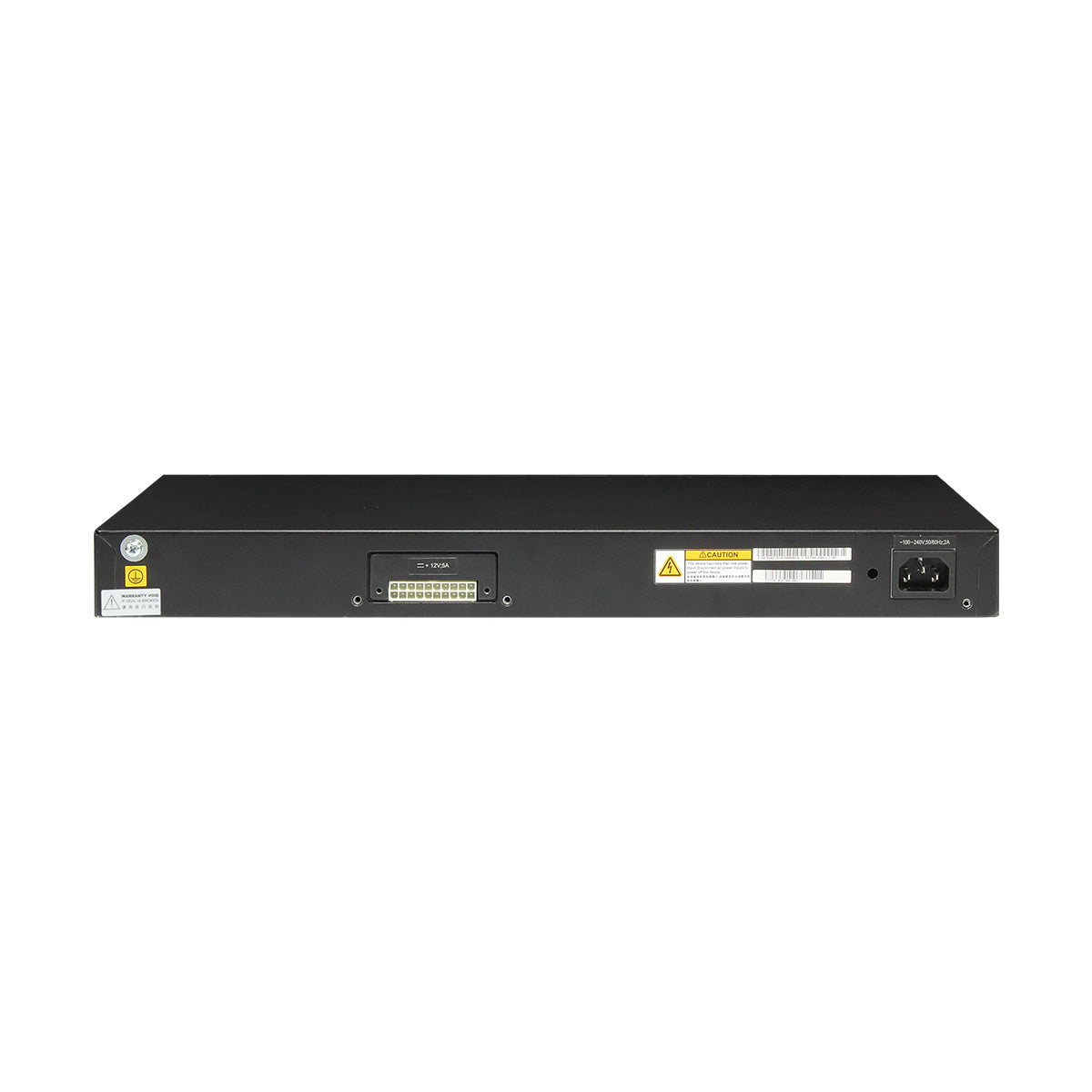

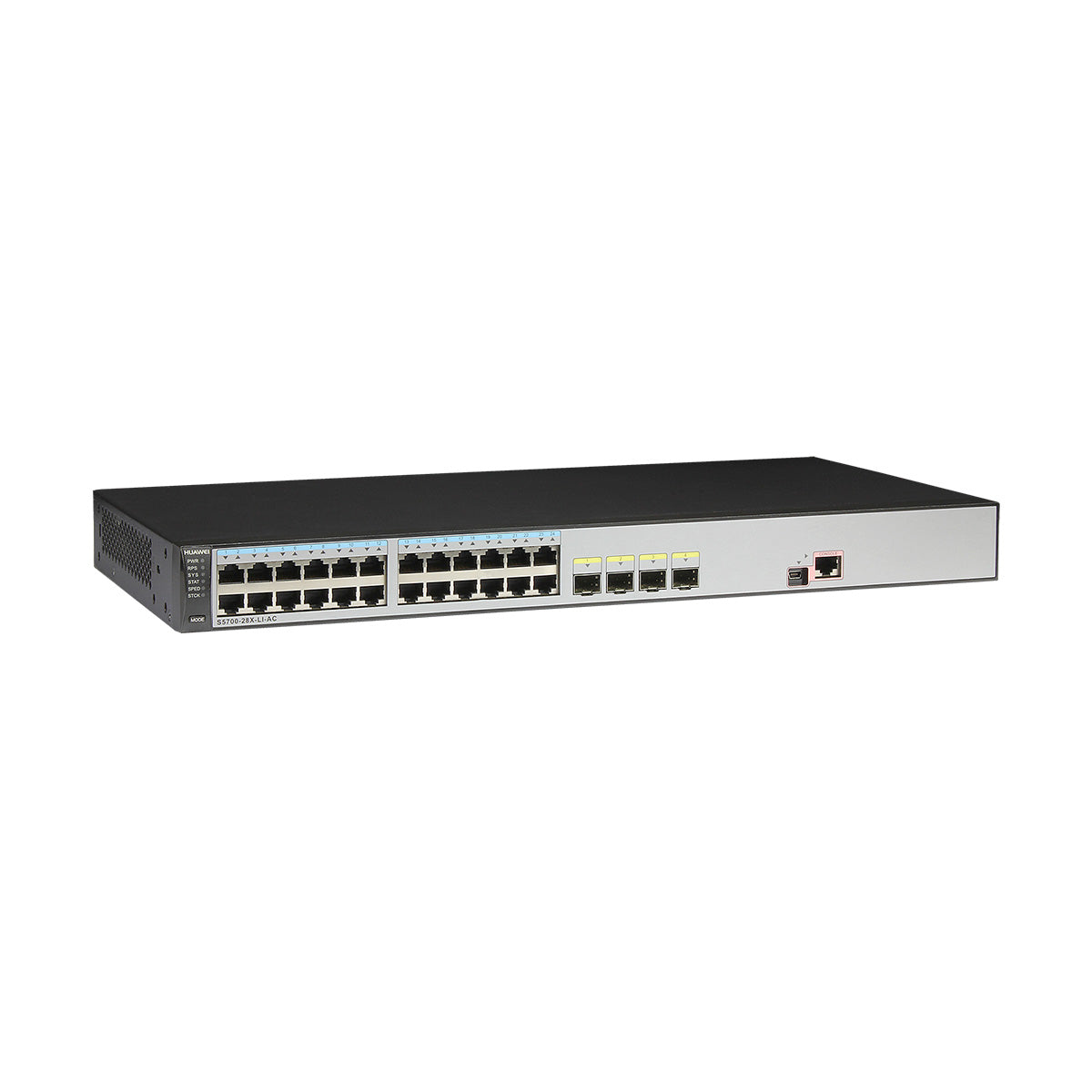

Huawei S5700-28X-LI-AC Switch
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei S5700-28X-LI-AC Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei S5700-28X-LI-AC switch with 24-port 1000BASE-T, 4-port 10GE SFP+, 1 AC power PN #02354215

Forwarding perfomance: 96 Mpps

Switching capacity: 256Gbps

16K MAC address entries

PoE Not Supported

 Huawei S5700 series switch includes the S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5700-SI, S5720-SI, S5730-SI, S5720S-SI, S5720I-SI, S5700-EI, S5710-EI, S5720-EI, S5730S-EI, S5700-HI, S5710-HI, S5720-HI, S5730-HI, S5731-L, S5731S-L, S5731-S, S5731S-S, S5731-H, S5731S-H, S5732-H, S5735-L, S5735-L-I, S5735S-L, S5735S-L-M, S5735-L1, S5735S-L1, S5735-S, S5735-S-I, S5735S-H, S5736-S, and S5735S-S subseries.

The S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5731-L, S5731S-L, S5735-L, S5735S-L, S5735-L1, S5735S-L1, and S5735S-L-M switches are Layer 2 switches, and all the other models in this series are Layer 3 switches.



Item Description
Memory (RAM) 256 MB
Flash 200 MB
Mean time between failures (MTBF) 68.95 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (with packaging) 3.4 kg (7.5 lb)
Stack ports Four uplink 10GE SFP+ ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 41 W
Typical power consumption (30% of traffic load) 29.7 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature 0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 44.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02354215

Huawei S5700-28X-LI-AC switch with 24-port 1000BASE-T, 4-port 10GE SFP+, 1 AC power PN #02354215

Forwarding perfomance: 96 Mpps

Switching capacity: 256Gbps

16K MAC address entries

PoE Not Supported

 Huawei S5700 series switch includes the S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5700-SI, S5720-SI, S5730-SI, S5720S-SI, S5720I-SI, S5700-EI, S5710-EI, S5720-EI, S5730S-EI, S5700-HI, S5710-HI, S5720-HI, S5730-HI, S5731-L, S5731S-L, S5731-S, S5731S-S, S5731-H, S5731S-H, S5732-H, S5735-L, S5735-L-I, S5735S-L, S5735S-L-M, S5735-L1, S5735S-L1, S5735-S, S5735-S-I, S5735S-H, S5736-S, and S5735S-S subseries.

The S5700-LI, S5700S-LI, S5700-LI-BAT, S5710-LI, S5720-LI, S5720S-LI, S5731-L, S5731S-L, S5735-L, S5735S-L, S5735-L1, S5735S-L1, and S5735S-L-M switches are Layer 2 switches, and all the other models in this series are Layer 3 switches.



Item Description
Memory (RAM) 256 MB
Flash 200 MB
Mean time between failures (MTBF) 68.95 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (with packaging) 3.4 kg (7.5 lb)
Stack ports Four uplink 10GE SFP+ ports
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 41 W
Typical power consumption (30% of traffic load) 29.7 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature 0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 44.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02354215
