Huawei S5732-H24S6Q Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

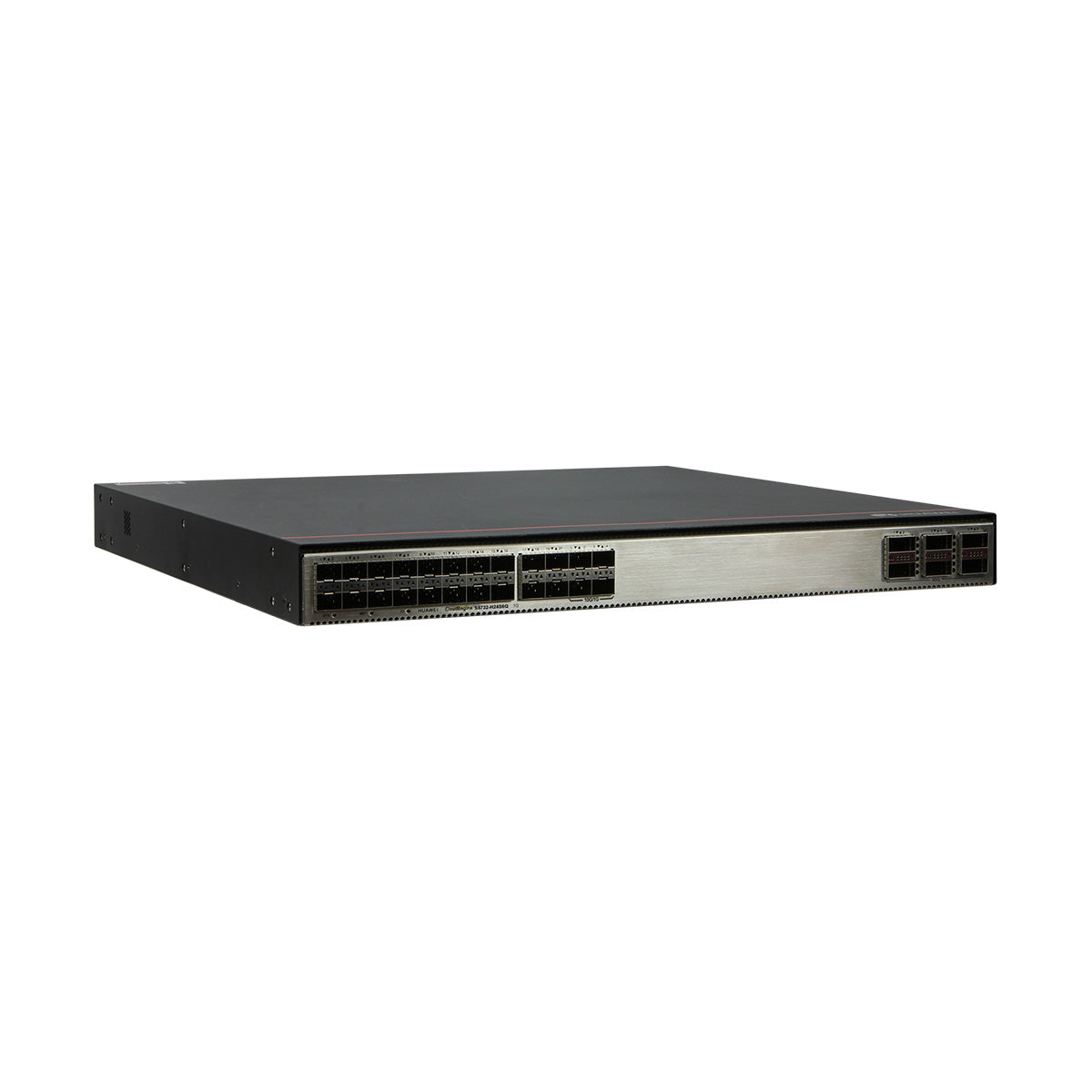

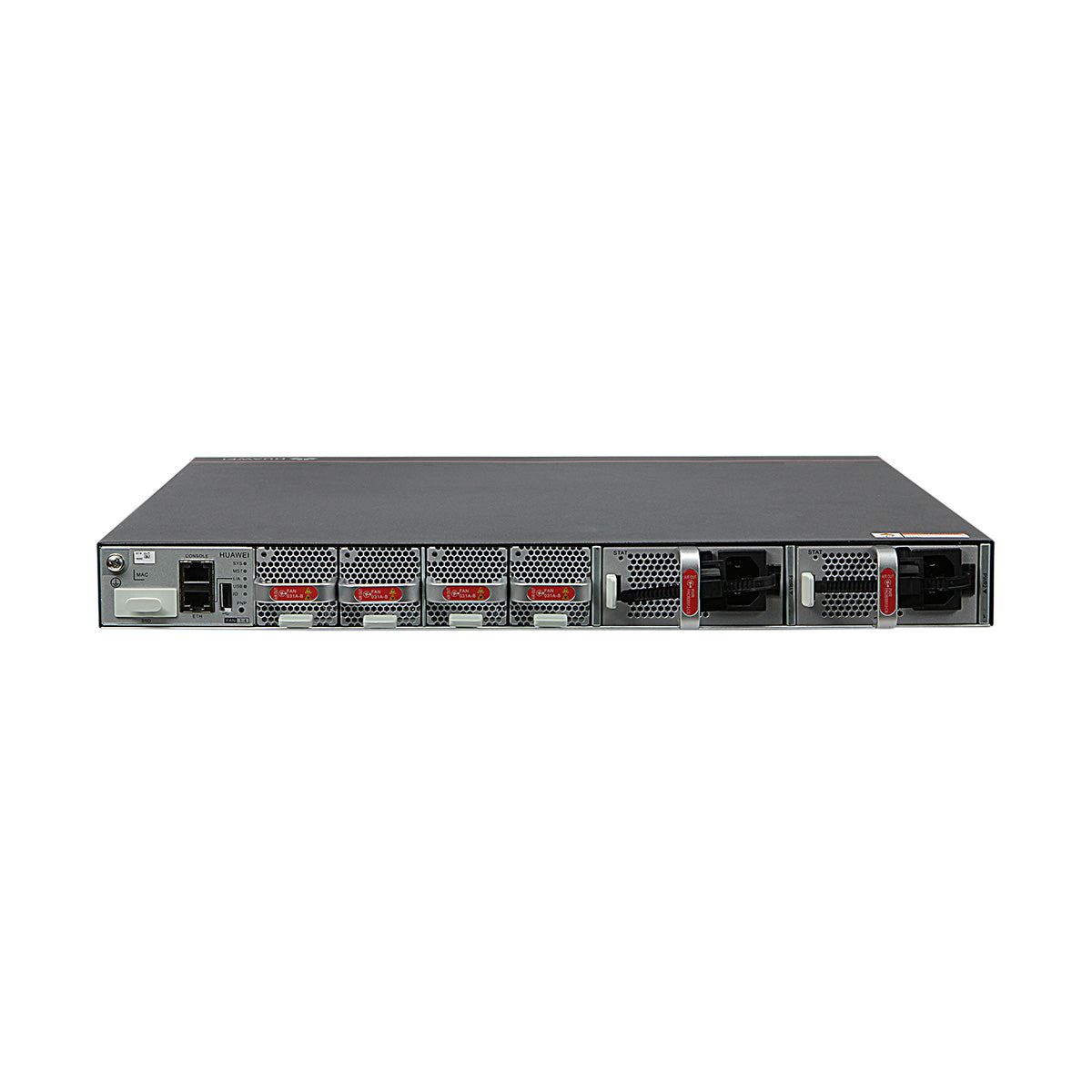

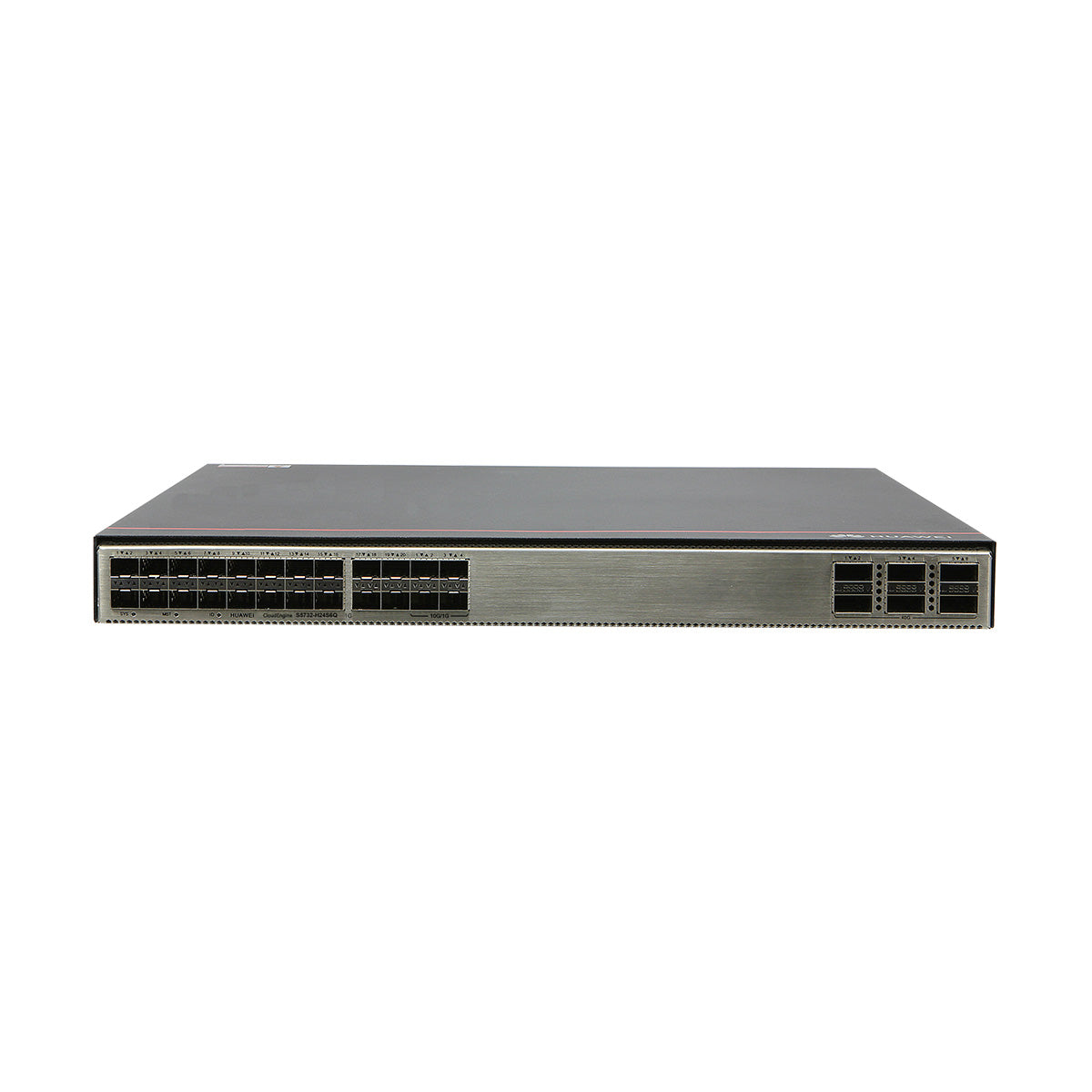

Huawei S5732-H24S6Q switch 20-port GE SFP, 4-port 10GE SFP+, 6-port 40GE QSFP+, 2 power slots PN# 02353AJS

Forwarding performance: 450 Mpps

Switching capacity: 600 Gbps/2.4 Tbps

 Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)

Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.

Based on Huawei's unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a free mobility feature that offers a consistently high-quality user experience.



Item Description
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command
Stack ports Any Ethernet electrical ports (10GE), optical ports on the front panel (10GE/25GE/40GE/100GE), or optical ports on the card (10GE/25GE/40GE)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 229 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 126 W
Certification EMC certification
Safety certification
Manufacturing certification
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (including package) 8.9 kg (18.08 lb)



Huawei S5732-H24S6Q switch 20-port GE SFP, 4-port 10GE SFP+, 6-port 40GE QSFP+, 2 power slots PN# 02353AJS

Forwarding performance: 450 Mpps

Switching capacity: 600 Gbps/2.4 Tbps

 Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)

Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.

Based on Huawei's unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a free mobility feature that offers a consistently high-quality user experience.



Item Description
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command
Stack ports Any Ethernet electrical ports (10GE), optical ports on the front panel (10GE/25GE/40GE/100GE), or optical ports on the card (10GE/25GE/40GE)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 229 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 126 W
Certification EMC certification
Safety certification
Manufacturing certification
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (including package) 8.9 kg (18.08 lb)
