Huawei S5735S-H24S4XC-A Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

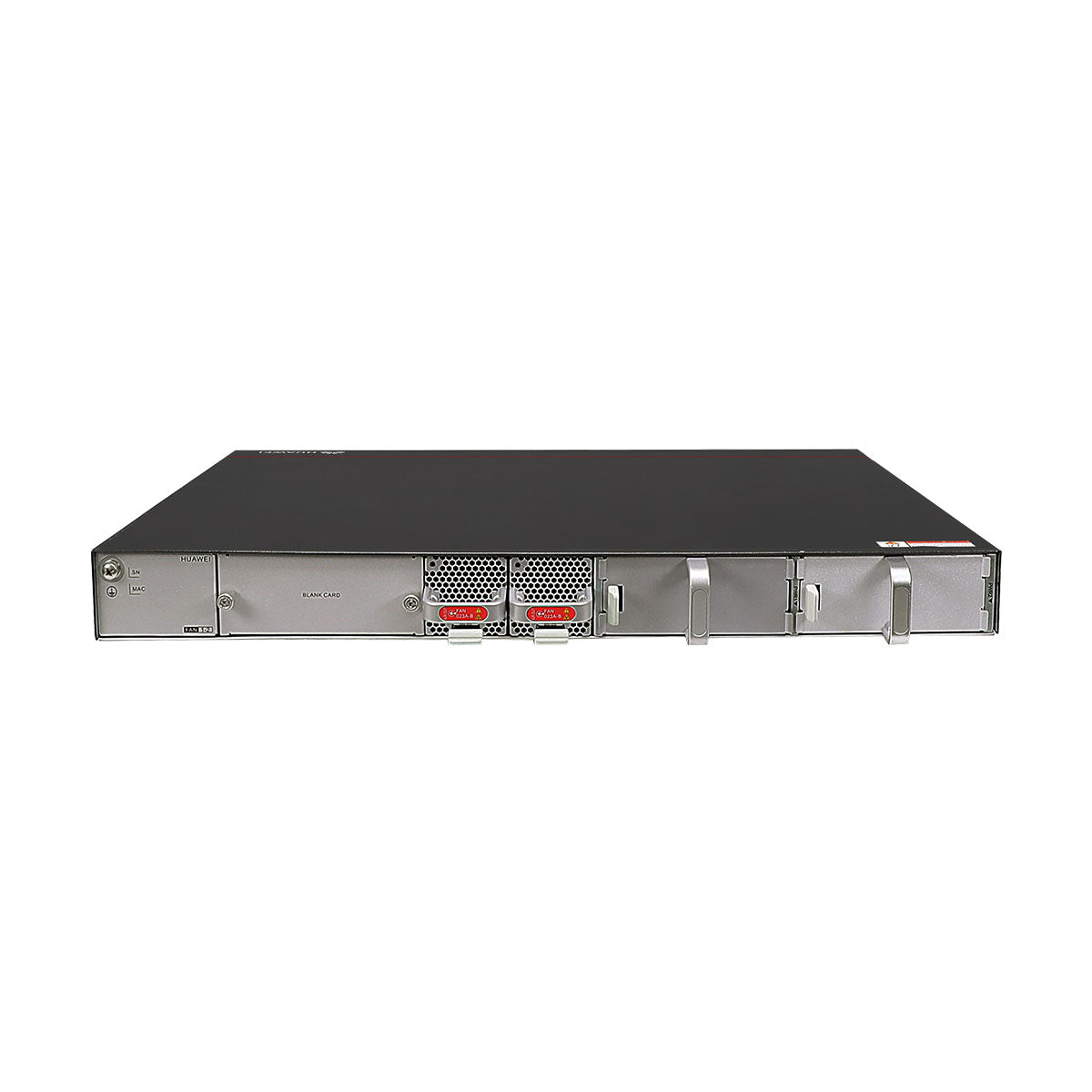

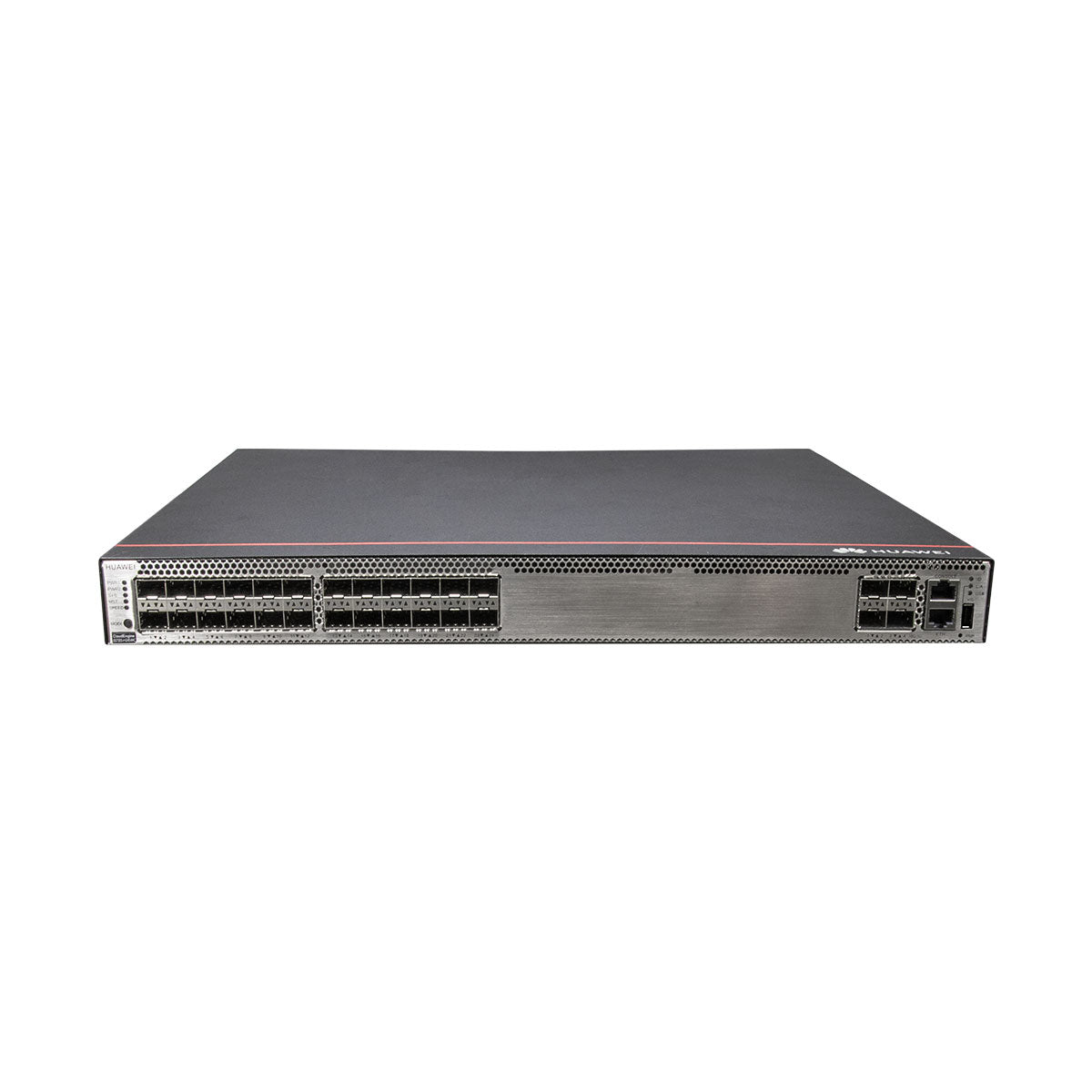

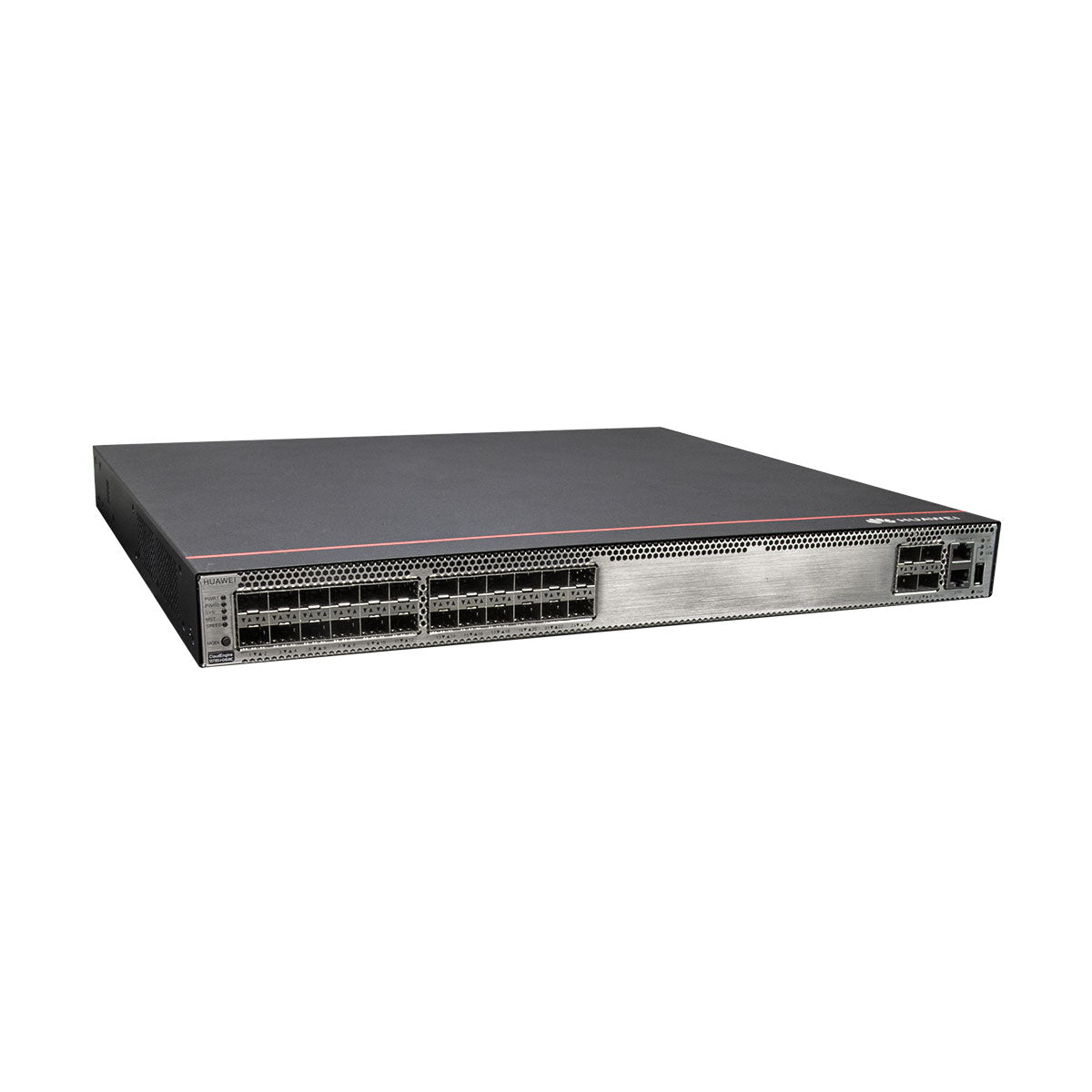

Huawei CloudEngine S5735S-H24S4XC-A switch with 24-port 1000Base-X, 4-port 10GE SFP+, 2 power slots PN# 98011041

1 extension slot, applicable card:
S7X08000 (02312URW)
S7X08000 (02312URW-002)
ES5D21Q02Q00
ES5D21Q04Q01
S7Q02001 (02313UBW)
S7Q02001 (02313UBW-002)

1+1 Redundant power supply

Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.

The S5700 series Ethernet switches are next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei's unified platform software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.



Item Specification
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: –38.4 V DC to –72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left,front and right, air exhaustion from behind
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic  43.6 mm x 442.0 mm x 420.0 mm
Max 43.6 mm x 442.0 mm x 444.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 150mm × 710mm × 560mm
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6 kg (13.23 lb)
Weight with packaging [kg(lb)] 9 kg (19.84 lb)



Huawei CloudEngine S5735S-H24S4XC-A switch with 24-port 1000Base-X, 4-port 10GE SFP+, 2 power slots PN# 98011041

1 extension slot, applicable card:
S7X08000 (02312URW)
S7X08000 (02312URW-002)
ES5D21Q02Q00
ES5D21Q04Q01
S7Q02001 (02313UBW)
S7Q02001 (02313UBW-002)

1+1 Redundant power supply

Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.

The S5700 series Ethernet switches are next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei's unified platform software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.



Item Specification
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: –38.4 V DC to –72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left,front and right, air exhaustion from behind
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic  43.6 mm x 442.0 mm x 420.0 mm
Max 43.6 mm x 442.0 mm x 444.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 150mm × 710mm × 560mm
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6 kg (13.23 lb)
Weight with packaging [kg(lb)] 9 kg (19.84 lb)
