Nokia FANT-F(ADAA) Main Control Board for Nokia Alcatel-Lucent 7360 ISAM FX series OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Nokia FANT-F(ADAA) Main Control Board for Nokia Alcatel-Lucent 7360 ISAM FX series OLT

  • Latest 3rd-Party ONTs Compatible Firmware Loaded
  • Control Board Synchronized
Available:In Stock
$0.00

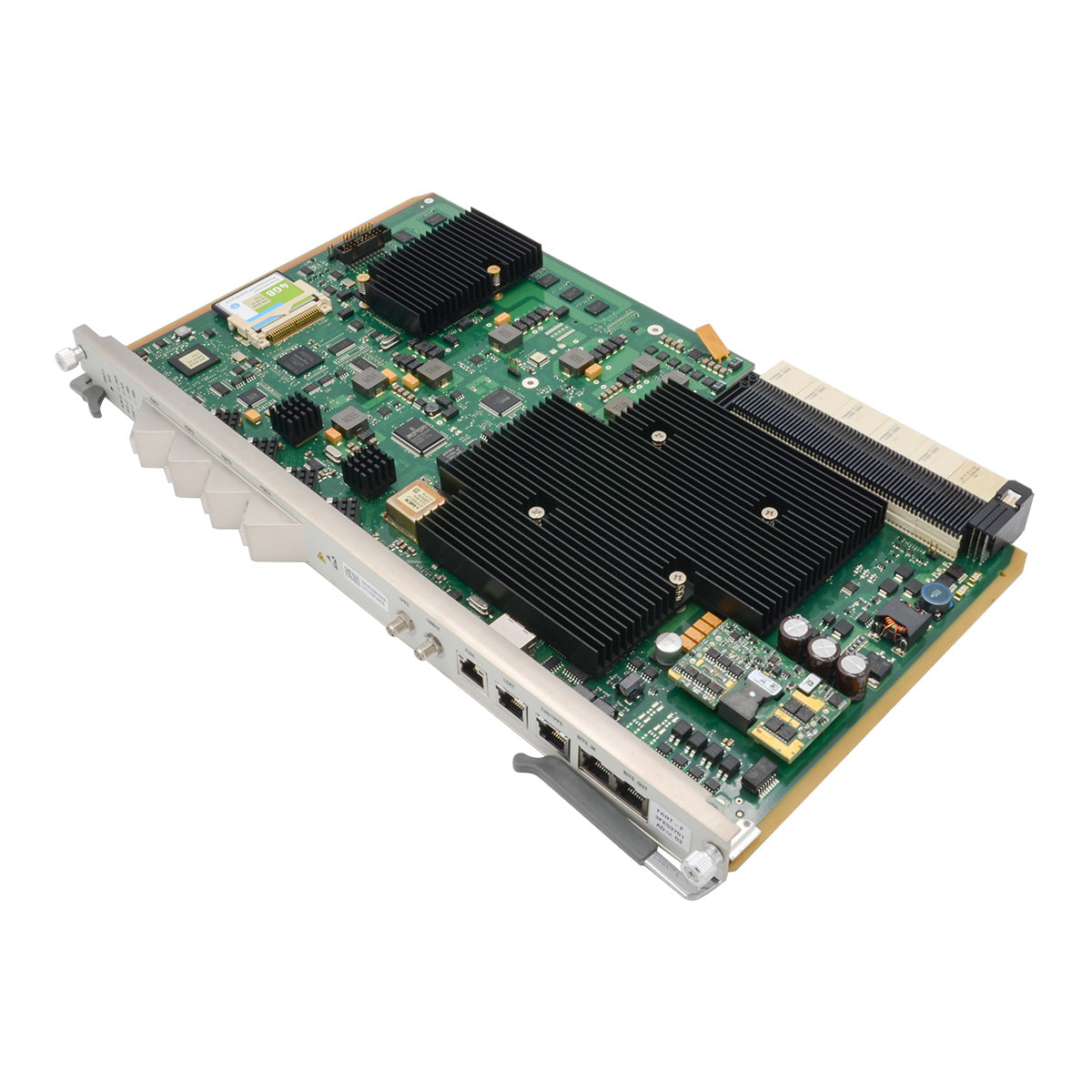

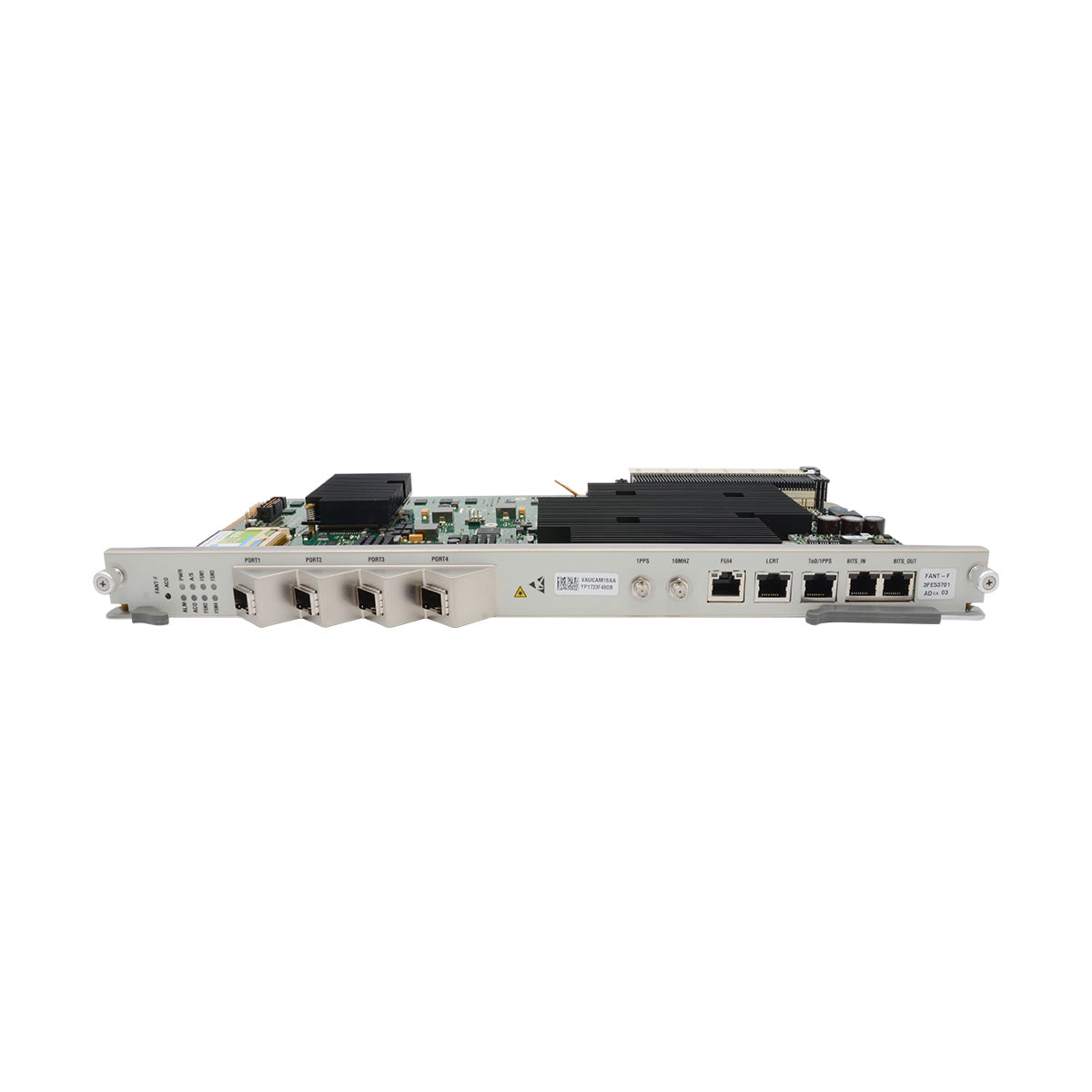

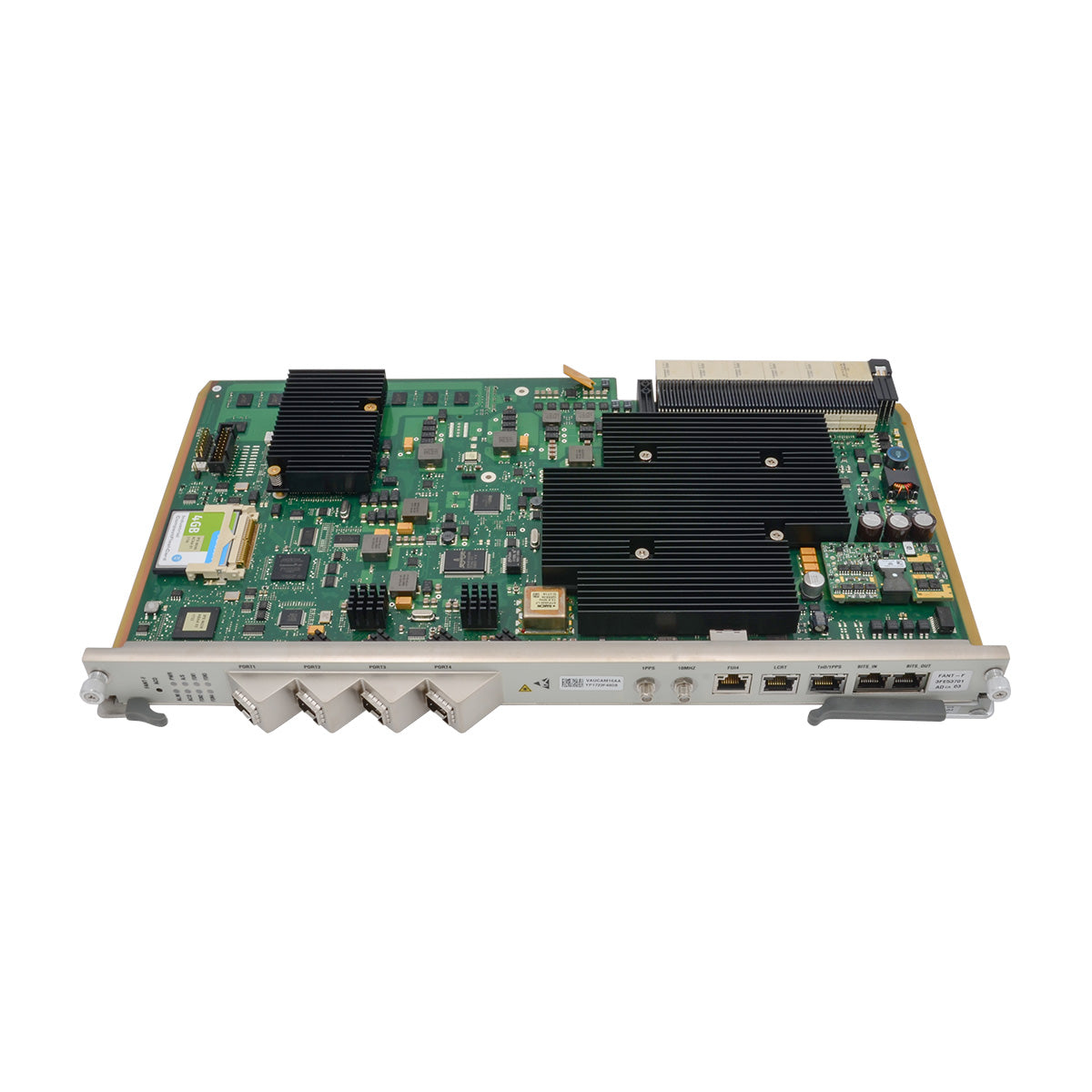

The Nokia Intelligent Services Access Manager (ISAM) FANT-F network termination (NT) card is a controller board that provides service and network intelligence in the Nokia 7360 ISAM FX access node. It provides 480 Gb/s switching matrix and 40 Gb/s connection to each line card, which makes it ideal for delivery of high capacity services in fiber networks.

FANT-F supports active-active redundancy and 480 Gb/s switching matrix (bidirectional)

The FANT-F card provides four configurable small form-factor pluggable (SFP+) supporting 10 Gb/s and 1 Gb/s links



Specification
Throughput 480 Gb/s switching matrix (bidirectional)
Maximum number of MAC addresses (FDB) 128 k
Maximum number of IP interfaces 512
ARP table size:  IPv4 16K
ARP table size:  IPv6 8K
Maximum number of IP routes: IPv4 16K
Maximum number of IP routes: IPv6 8K
Maximum number of ONTs 16 k
Maximum number of UNIs 16 k
External interfaces

4-port optical 10 Gb/1 Gb interface

Optical and electrical connection through SFP and SFP+ standards

1-port electrical 10/100/1000Base-T (RJ-45 connector)

2-port BITS interface: only on BITS variant; 1 port in, 1 port out, using ITU-T G.703 (ANSI interfaces available on a separate generic flow control  [GFC] unit)

Device Specifications
Weight 2kg
Dimensions (W x D x H) 405 mm x 225mm x  30 mm

The Nokia Intelligent Services Access Manager (ISAM) FANT-F network termination (NT) card is a controller board that provides service and network intelligence in the Nokia 7360 ISAM FX access node. It provides 480 Gb/s switching matrix and 40 Gb/s connection to each line card, which makes it ideal for delivery of high capacity services in fiber networks.

FANT-F supports active-active redundancy and 480 Gb/s switching matrix (bidirectional)

The FANT-F card provides four configurable small form-factor pluggable (SFP+) supporting 10 Gb/s and 1 Gb/s links



Specification
Throughput 480 Gb/s switching matrix (bidirectional)
Maximum number of MAC addresses (FDB) 128 k
Maximum number of IP interfaces 512
ARP table size:  IPv4 16K
ARP table size:  IPv6 8K
Maximum number of IP routes: IPv4 16K
Maximum number of IP routes: IPv6 8K
Maximum number of ONTs 16 k
Maximum number of UNIs 16 k
External interfaces

4-port optical 10 Gb/1 Gb interface

Optical and electrical connection through SFP and SFP+ standards

1-port electrical 10/100/1000Base-T (RJ-45 connector)

2-port BITS interface: only on BITS variant; 1 port in, 1 port out, using ITU-T G.703 (ANSI interfaces available on a separate generic flow control  [GFC] unit)

Device Specifications
Weight 2kg
Dimensions (W x D x H) 405 mm x 225mm x  30 mm
