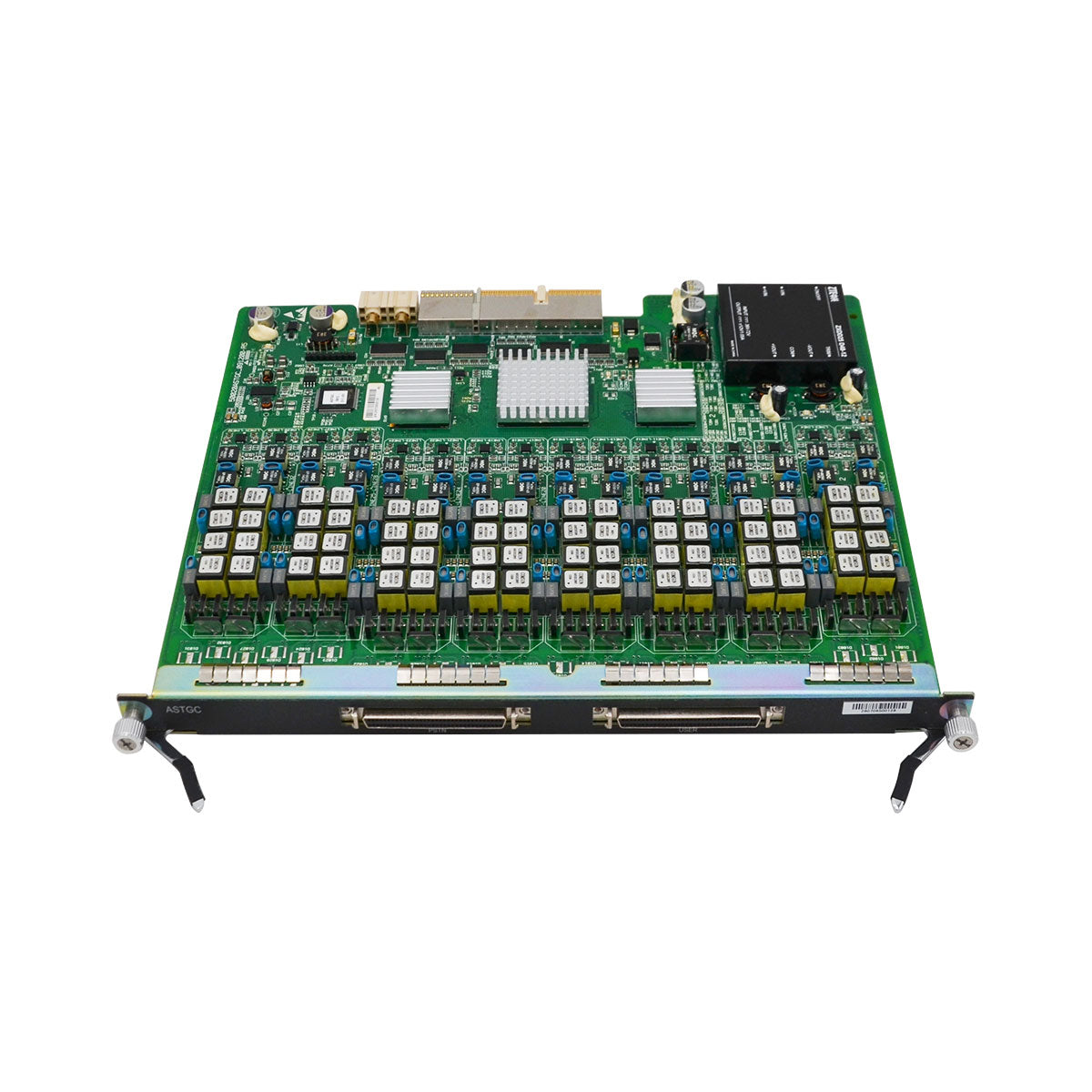

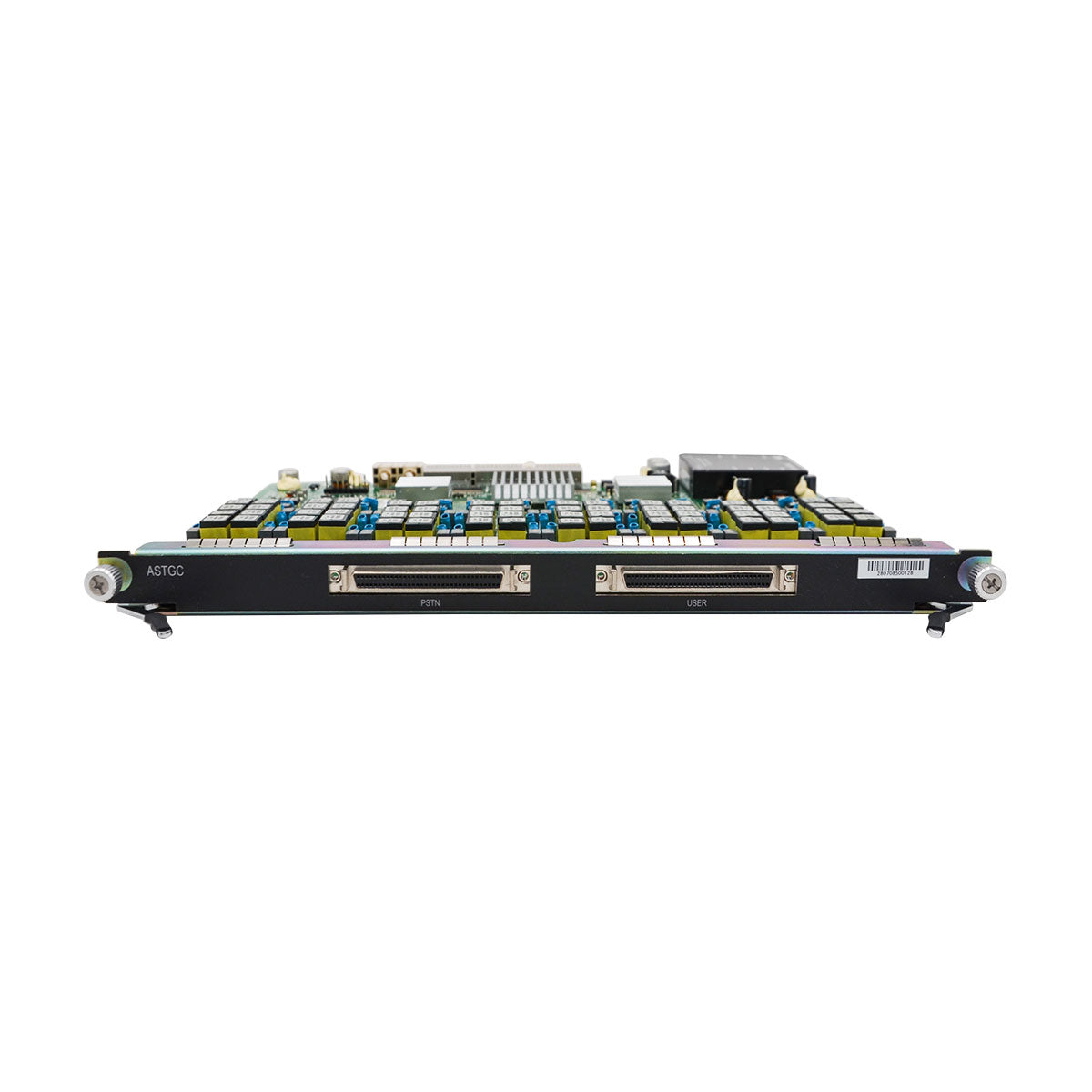

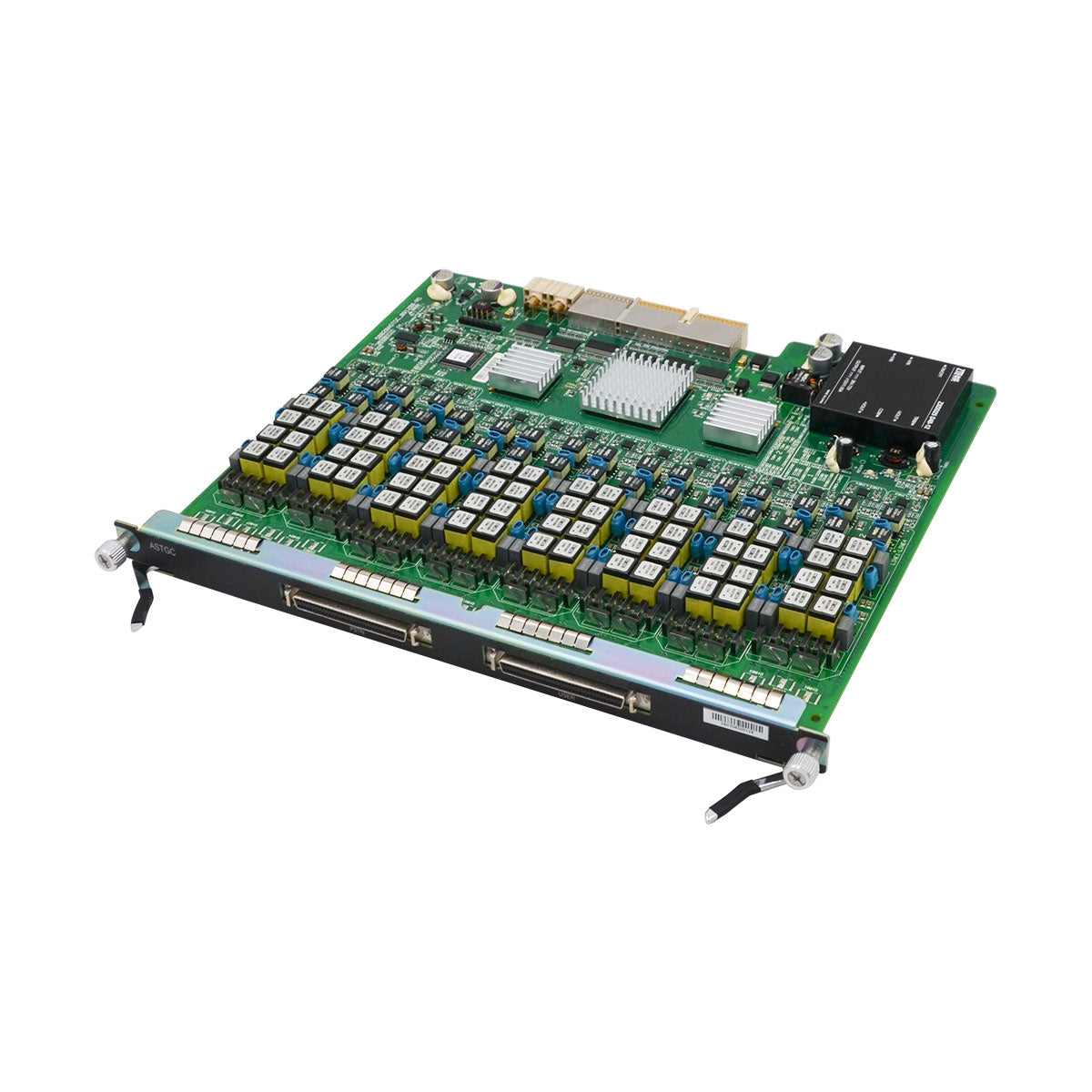

ZTE ASTGC 32 channels ADSL2+ over POTS Board for ZXDSL 9806H ONU

  • Original Package
  • Board Tested
Available:In Stock
$0.00

ASTGC is a ADSL2+ over POTS interface card of ZTE DSLAM 9806H, 32 ports ADSL2+ works together with the ADSL2+ terminal (ONT) to provide ADSL2+ access services. Please note 2PCS subscriber cables should purchase separately for ASTGC board.

Max transmission distance 6.5km

Downstream rate 26 Mbps, upstream rate 1 Mbps



Specification
IP packet transmission delay Max frame delay<10 ms; Min frame delay <1 ms
IP packet drop rate <10-7
IP packet error rate <10-6
Power Consumption 19.8W
Dimensions (H×W×D) 20.5 mm × 274 mm × 231.2 mm

ASTGC is a ADSL2+ over POTS interface card of ZTE DSLAM 9806H, 32 ports ADSL2+ works together with the ADSL2+ terminal (ONT) to provide ADSL2+ access services. Please note 2PCS subscriber cables should purchase separately for ASTGC board.

Max transmission distance 6.5km

Downstream rate 26 Mbps, upstream rate 1 Mbps



Specification
IP packet transmission delay Max frame delay<10 ms; Min frame delay <1 ms
IP packet drop rate <10-7
IP packet error rate <10-6
Power Consumption 19.8W
Dimensions (H×W×D) 20.5 mm × 274 mm × 231.2 mm
