ZTE GFBH 16-port XG-PON and GPON Combo Board for ZXA10 C600 series OLT

  • Unified 16*PON Module
  • Original Package
  • Board and Modules Tested
Available:In Stock
$0.00

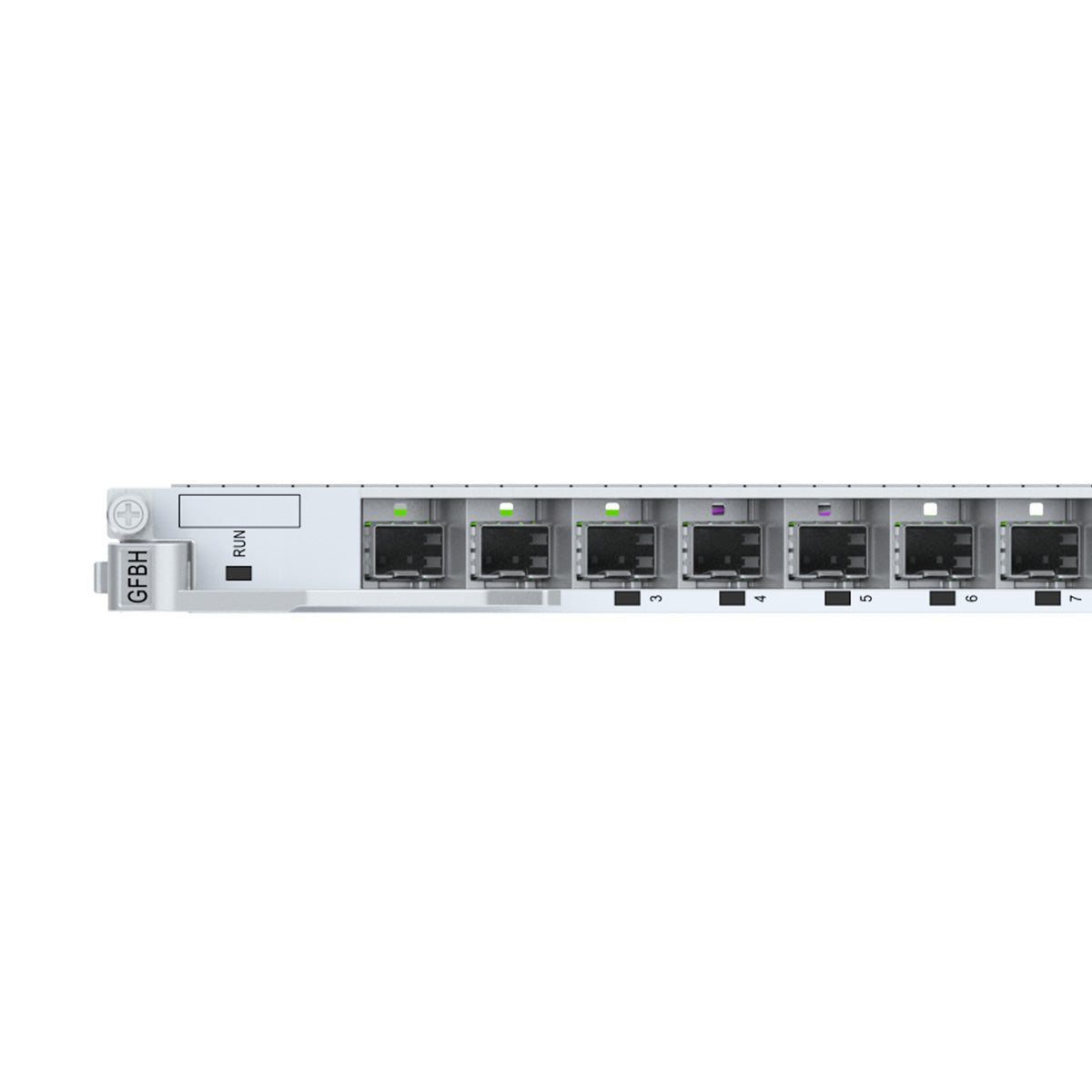

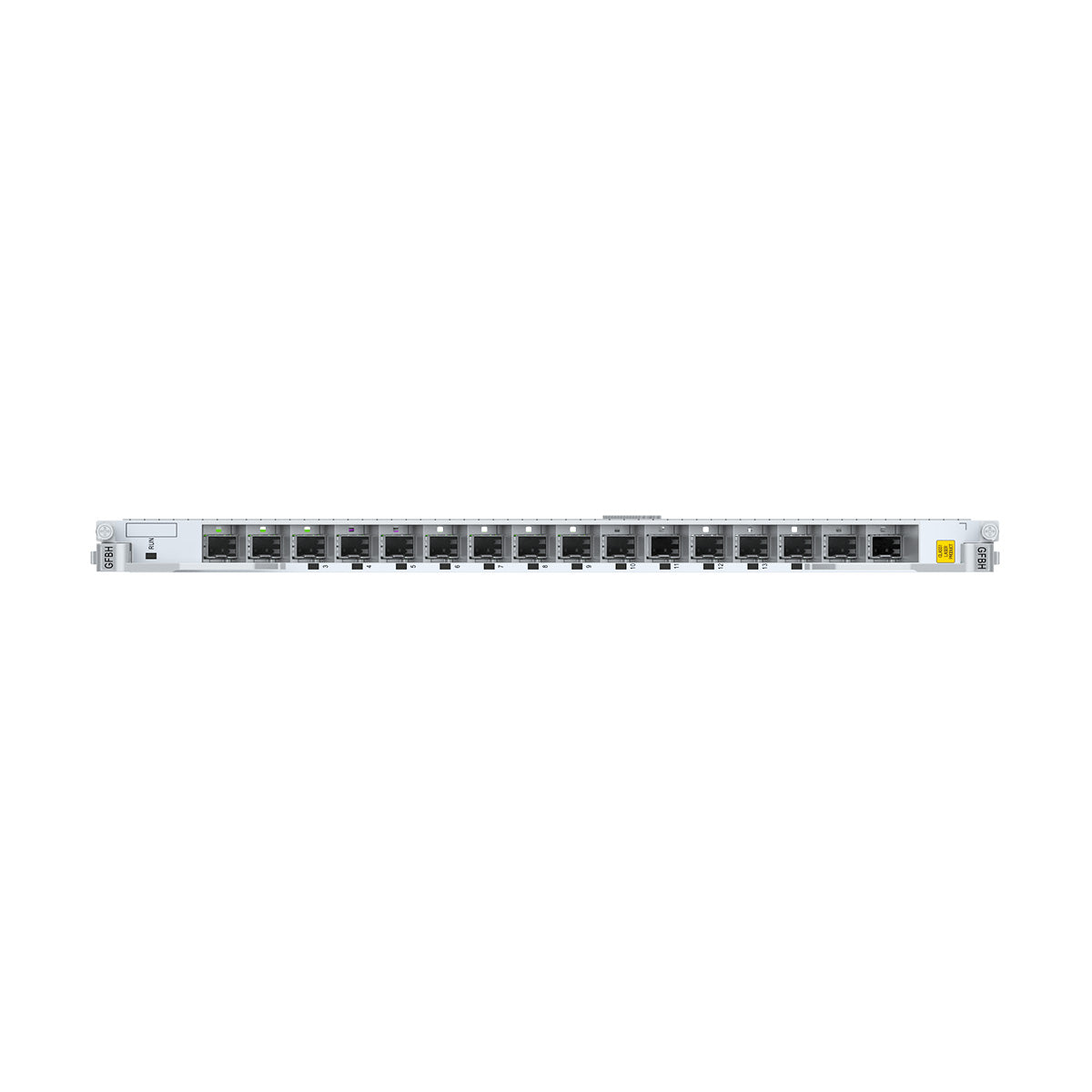

The GFBH is a 16-port XG-PON & GPON Combo service card applied to ZTE ZXA10 C600/C650/C680 GPON OLT. It provides 16-port XG-PON & GPON access.

XG-PON supports a maximum split ratio of 1:128. GPON supports a maximum split ratio of 1:128.

Supports OLS

Supports the optical module ALS function


Specification
Port 16-port
Interface XG-PON & GPON Combo
Function XG-PON & GPON service access
Specification XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
Modules of the XG-PON Subscriber Card
Management and control module Configures, controls, and manages the card.
PONMAC module Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.
NP module
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
Optical module Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.
Clock module Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
Device Specifications
Weight 1.72 kg
Dimensions (L x H x W) 393.1 mm × 23.9 mm × 214 mm

The GFBH is a 16-port XG-PON & GPON Combo service card applied to ZTE ZXA10 C600/C650/C680 GPON OLT. It provides 16-port XG-PON & GPON access.

XG-PON supports a maximum split ratio of 1:128. GPON supports a maximum split ratio of 1:128.

Supports OLS

Supports the optical module ALS function


Specification
Port 16-port
Interface XG-PON & GPON Combo
Function XG-PON & GPON service access
Specification XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
Modules of the XG-PON Subscriber Card
Management and control module Configures, controls, and manages the card.
PONMAC module Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.
NP module
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
Optical module Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.
Clock module Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
Device Specifications
Weight 1.72 kg
Dimensions (L x H x W) 393.1 mm × 23.9 mm × 214 mm
