This blog will explore on the feasibility of flexibly using STM-1/4 optical module on OSN 500 optical interface.

According to Huawei's technical specifications, OptiX OSN 500 is a 1U, case-shaped SDH equipment that provides three slots, as shown in Table 1.

Table 1 OSN 500 Slot layout

The ISU slot houses a functional board integrating the SCC unit, cross-connect unit, clock unit, tributary unit, line unit, and data transparent transmission unit as shown Table 2.

Table 2 ISU boards supported by the OptiX OSN 500.

Based on the information in Table 2, it shows that the ISU board of the OptiX OSN 500 is integrated with 2-port STM-1/4 optical interfaces. We can reasonably assume that STM-1 or STM-4 modules can be randomly plugged into these two optical interfaces without encountering any limitations or alarms.

By making a module replacement test on OSN500, we obtained the answer to this question.

Test 1 On OSN 500 S4.1(SL4D) chassis

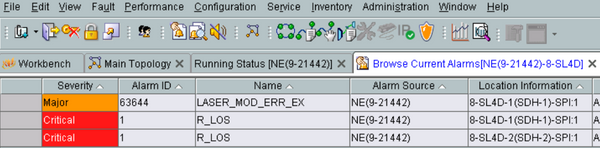

When we replace original STM-4 with STM-1 module then plugged into optical interface, a major alarm “LASER_MOD_ERR_EX” pops up below:

Test 2 On OSN 500 S1.1(SL1D) chassis

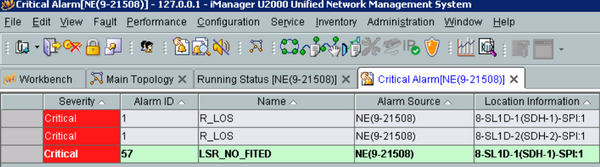

When we replace original STM-1 with STM-4 module then plugged into optical interface, a critical alarm “LSR_NO_FITED” pops up below:

LSR_NO_FITED: the pluggable optical module is not installed on the board. As a result, the board cannot receive and transmit services, and thus the board fails to function. After we replace it with STM-1 optical module, alarm disappears.

From above test, it proves that even ISU can support 2-port STM-1/4 optical interfaces, which does not mean we can randomly plug STM-1/4 optical module on OSN 500 interface. Thus, when you have OSN 500 project inquiry, it’s suggested to specify OSN 500 interface type either STM-4 or STM-1 you need, then we can help you equip the matched optical module type to avoid alarm or any potential issue to delay your deployment plan.
