Huawei MA5800 10G PON Solution

As the market leader in the telecom equipment, Huawei has launched Huawei 10G PON Solution. 10G PON is the best solution to meet bandwidth and experience requirements of various services with high bandwidth, low latency, and high reliability, which can meet the diversified enterprise services.

Diversified enterprise services require high bandwidth

Huawei MA5800 10G PON Solution

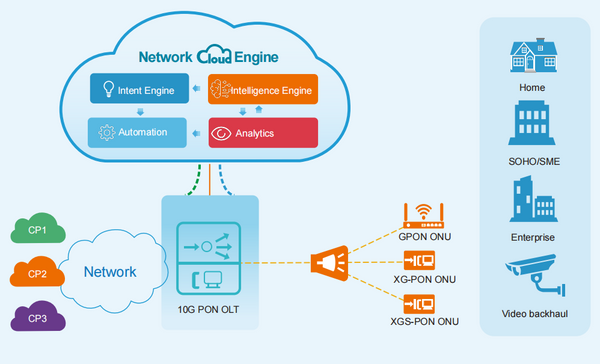

Huawei 10G PON Solution

Best TCO solution

◆ XG(S)-PON Combo Save Rack Space

◆ 3-in-1 mode, decreasing the TCO 25%

◆ Green design, full compliant with CoC V6, saving energy 50%

Agile Development

◆ No or less ODN change

◆ Quickly configuration data migration

◆ ONU zero touch provisioning

◆ Only the SFP optical module is replaced during the upgrade;

User-Centric Experience

◆Predictive O&M and remote troubleshooting

◆E2E video diagnostics and second-level demarcation for less home-visiting

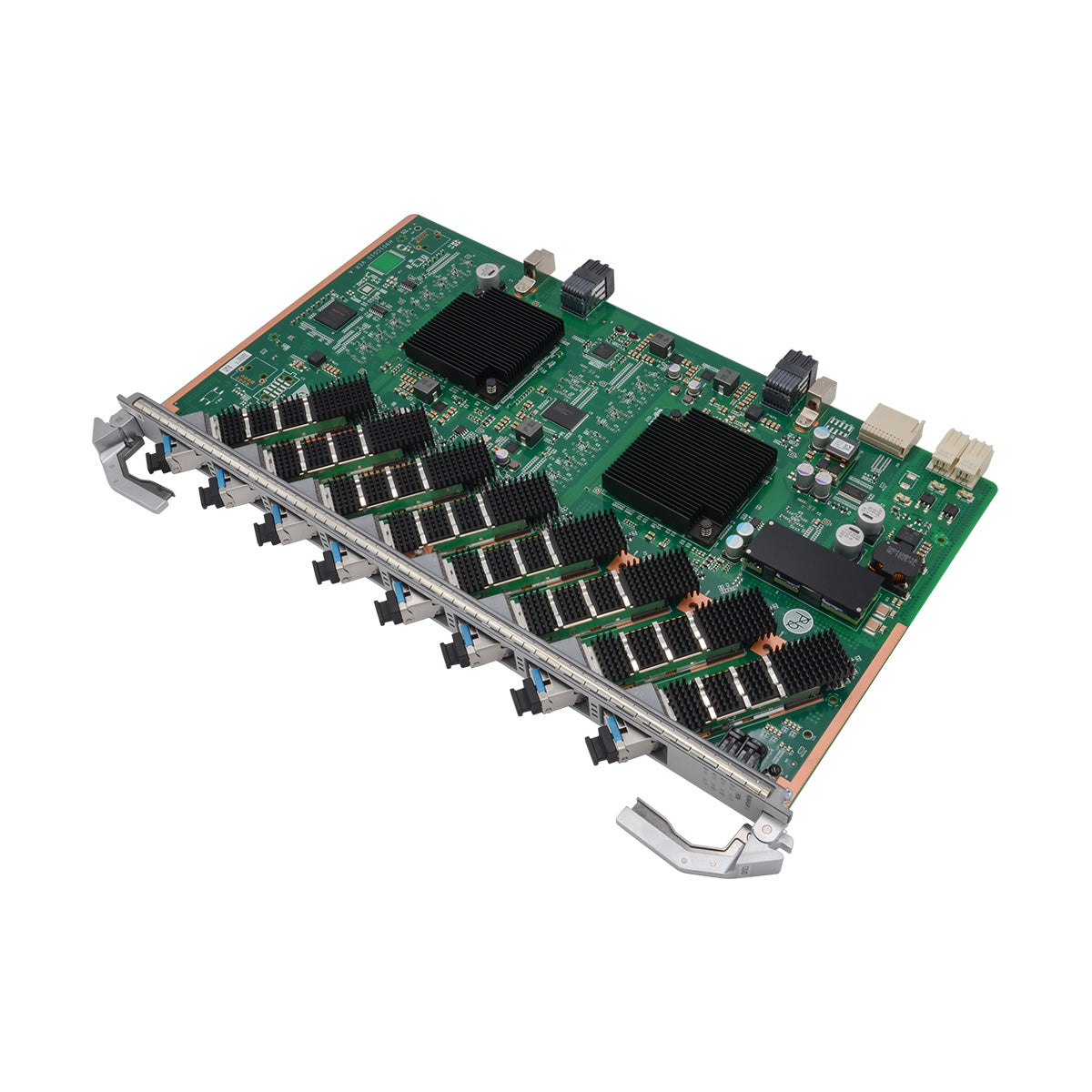

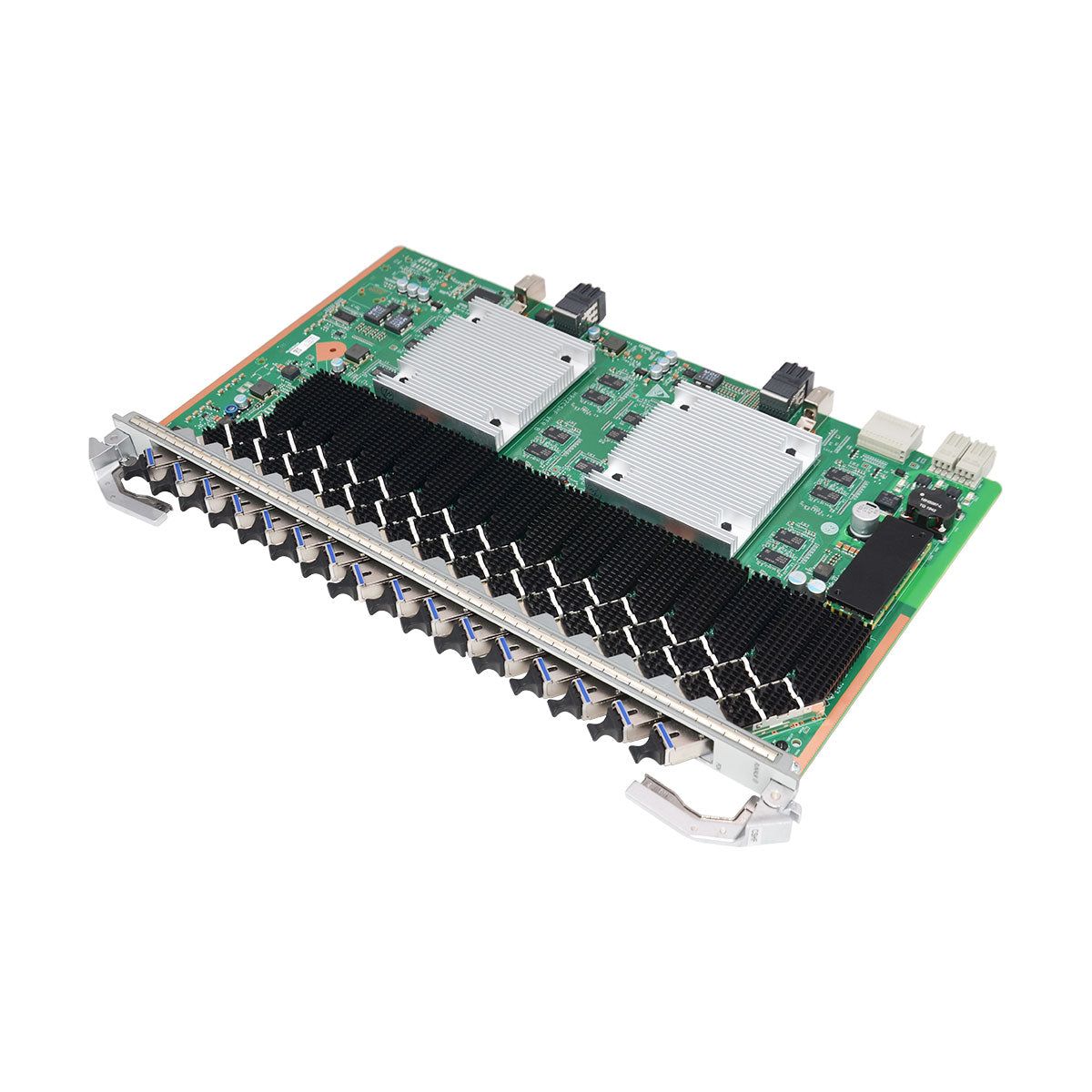

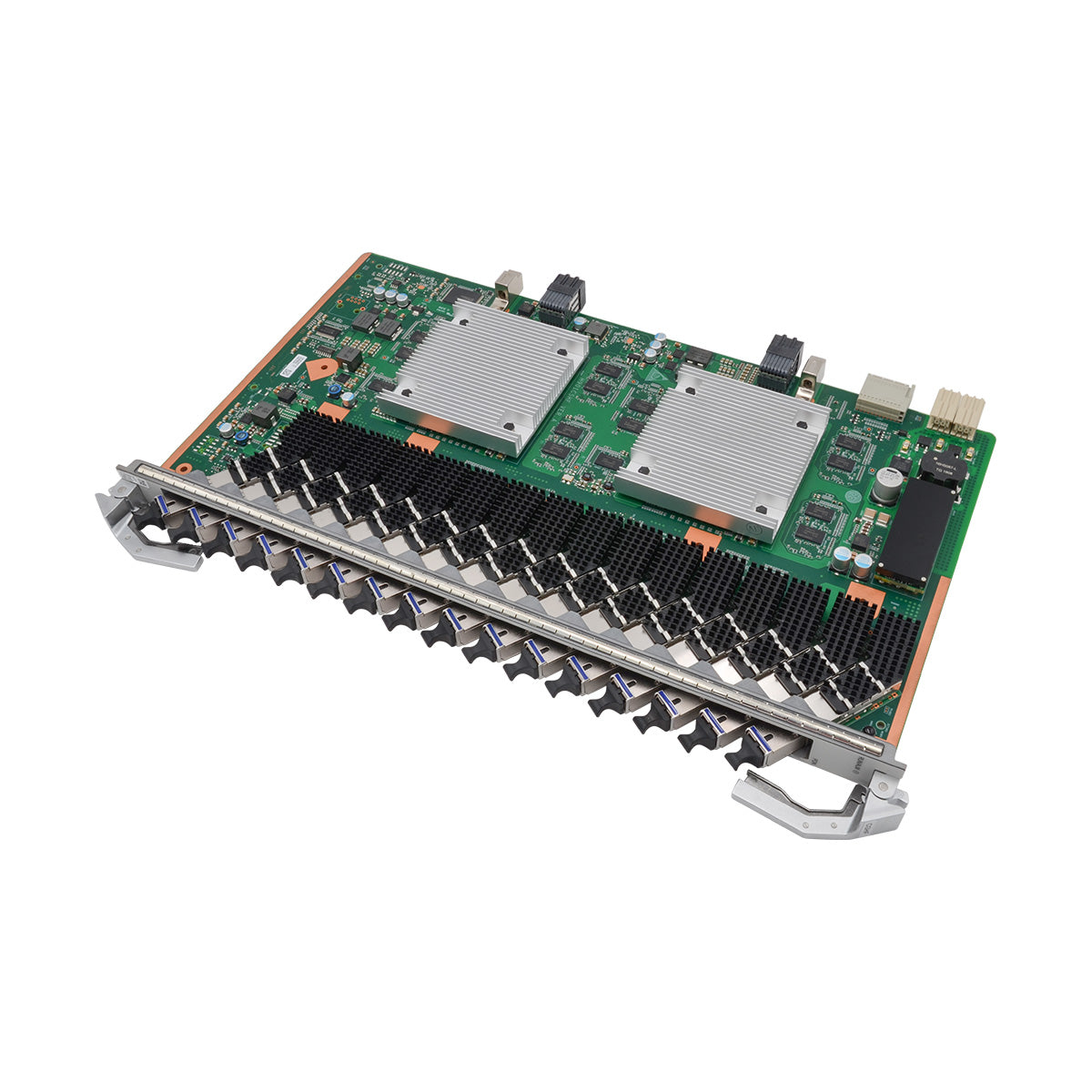

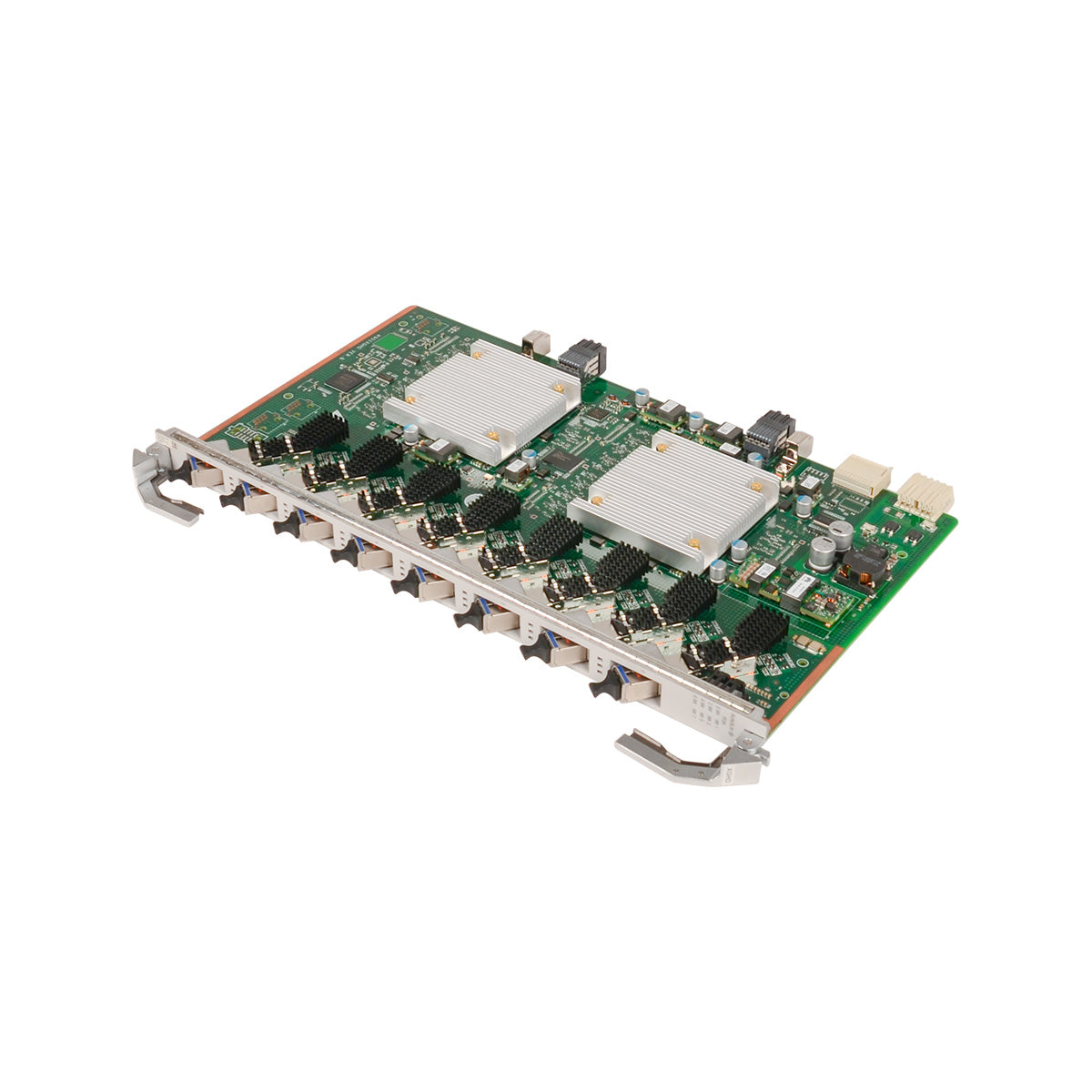

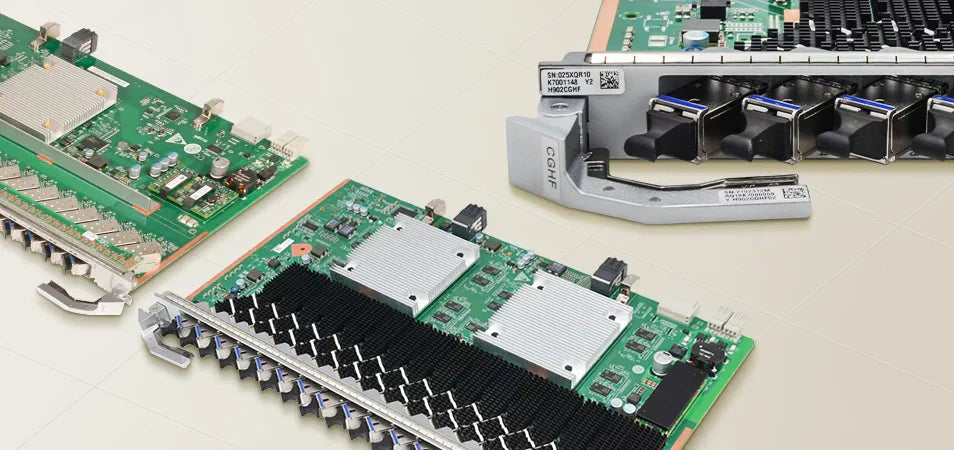

Huawei MA5800 10G PON Board

Table 1 Differences between XG-PON interface boards
Specification	H901XGHD	H901XGSF
Port quantity	8	16
Forwarding capability	80 Gbit/s	80 Gbit/s
Rate mode	Asymmetric rate	Asymmetric rate
Port rate	Upstream: 2.488 Gbit/s	Upstream: 2.488 Gbit/s
Port rate	Downstream: 9.953 Gbit/s	Downstream: 9.953 Gbit/s
Maximum split ratio	1:256	1:256

Table 2 Differences between XGS-PON interface boards
Board Specifications	H901TWED	H901XSHF	H902XSHD	H902TWHD
Port quantity	8	16	8	8
Forwarding capability	80 Gbit/s	160 Gbit/s	80 Gbit/s	80 Gbit/s
Rate mode	Supports two modes:	Supports two modes:	Supports two modes:	Supports two modes:
	Asymmetric	Asymmetric	Asymmetric	Asymmetric
	Symmetric	Symmetric	Symmetric	Symmetric
Port rates	upstream: 9.953/2.488 Gbit/s	upstream: 9.953/2.488 Gbit/s	upstream: 9.953/2.488 Gbit/s	upstream: 9.953/2.488 Gbit/s
Port rates	downstream: 9.953 Gbit/s	downstream: 9.953 Gbit/s	downstream: 9.953 Gbit/s	downstream: 9.953 Gbit/s
Maximum split ratio	1:64	1:256	1:256	1:256

Table 3 Differences between PON Combo interface boards
Board Specifications	H901CGID	H901CGHF	H901CSHF/H902CSHF	H902CGHD	H902CSHD
Port quantity	8	16	16	8	8
Forwarding capability	80 Gbit/s	200 Gbit/s	200 Gbit/s	100 Gbit/s	100 Gbit/s
Rate mode	Asymmetric rate	Asymmetric rate	Supports two modes:	Asymmetric rate	Supports two modes:
			Asymmetric		Asymmetric
			Symmetric		Symmetric
Port rates	GPON upstream: 1.244 Gbit/s	GPON upstream: 1.244 Gbit/s	GPON upstream: 1.244 Gbit/s	GPON upstream: 1.244 Gbit/s	GPON upstream: 1.244 Gbit/s
	GPON downstream: 2.488 Gbit/s	GPON downstream: 2.488 Gbit/s	GPON downstream: 2.488 Gbit/s	GPON downstream: 2.488 Gbit/s	GPON downstream: 2.488 Gbit/s
	XG-PON upstream: 2.488 Gbit/s	XG-PON upstream: 2.488 Gbit/s	XGS-PON upstream: 9.953/2.488 Gbit/s	XG-PON upstream: 2.488 Gbit/s	XGS-PON upstream: 9.953/2.488 Gbit/s
	XG-PON downstream: 9.953 Gbit/s	XG-PON downstream: 9.953 Gbit/s	XGS-PON downstream: 9.953 Gbit/s	XG-PON downstream: 9.953 Gbit/s	XGS-PON downstream: 9.953 Gbit/s
Maximum split ratio	GPON: 1:128	GPON: 1:128	GPON: 1:128	GPON: 1:128	GPON: 1:128
Maximum split ratio	XG-PON: 1:256	XG-PON: 1:256	XG(S)-PON: 1:256	XG-PON: 1:256	XG(S)-PON: 1:256

Table 4 Flex-PON Interface Board H901FLHF
Specification	Description
Port quantity	16
Forwarding capability	200 Gbit/s
Rate mode	Supports two modes:
	Asymmetric
	Symmetric
Port Rate	GPON upstream: 1.244 Gbit/s
	GPON downstream: 2.488 Gbit/s
	XGS-PON upstream: 9.953/2.488G bit/s
	XGS-PON downstream: 9.953 Gbit/s
Maximum split ratio	GPON: 1:128
Maximum split ratio	XG(S)-PON: 1:256

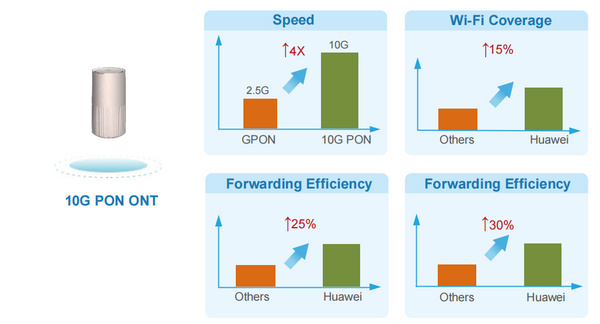

10G PON ONT Enhances Home Experience

10g gpon ont

ONT Model	UNI
HN8346V5	XG-PON ONT, 4GE+1POT+2USB+2.4G/5G WIFI
HN8145V(black)	XG-PON ONT, 4GE+1POTS+1*USB+2.4G/5G WIFI
HN8245Q	XG-PON ONT, 4GE+1POTS+2USB+2.4G/5G WIFI
HN8546X6	XG-PON ONT, 4GE+2USB+1POT, 2.4G/5G WIFI 6
EN8145X6	XG-PON ONT,4GE+1USB+1POT, 2.4G/5G WIFI 6
