Huawei NetEngine 8000 M6 Router Subrack, Configurable Interface Card, AC/DC Power Options
Switching Capacity: 320G bit/s
Forwarding Performance: 72 Mpps
Maximum Board Capability: 50 Gbit/s
Interface Type: 50GE/25GE/10GE/GE/FE/CPOS/E1
Capacity Density (G/U): 80
Huawei NE8000 M6 all-scenario access and aggregation routers are intelligent high-end routers designed for the industry market. Primarily intended for scenarios such as access and aggregation, private line, data center egress, and data center interconnection, these routers provide a simplified and intelligent IP bearer network solution featuring simplified architecture, smart connection, and committed high availability.
Huawei's NetEngine 8000 M series comprises the M14, the M8 , the M6, and the M4, which compact full-scenario aggregation routers designed for the 5G and cloud era. These routers feature a large capacity, compact design, high reliability, and wide range of ports. The M series provides SRv6 capabilities, simplifying network protocols and providing application-level SLA assurance. The M series routers can smoothly evolve to larger capacities. With Huawei's NetEngine 8000 M series routers, customers can implement multi-service bearing and build simplified, converged, and intelligent ultra-broadband metro networks.
Basic information about the NetEngine 8000 M6
| Description | Part Number | Model |
| NetEngine 8000 M6 Integrated DC Chassis Components(Including 2*DC Power,Fan Box) | 02353HHE | CR8BM6BKPDC1 |
| NetEngine 8000 M6 Integrated AC Chassis Components(Including 2*AC Power,Fan Box) | 02353HHF | CR8BM6BKPAC1 |

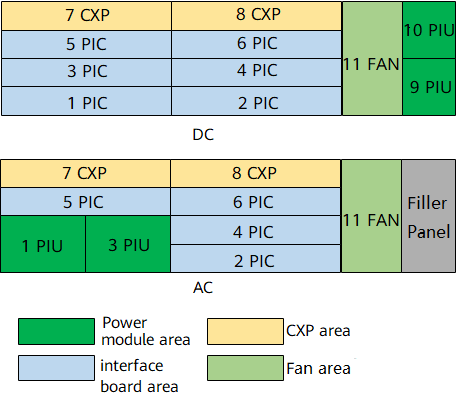

Slot Layout of the NetEngine 8000 M6
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
